A 1070 kg ride-on rubber-track loader with 200 kg rated load for construction, material handling and frequently changing work in narrow areas.
Compare T390 ride-on mini skid steer loader images, the 200 kg rated load and 1150 mm bucket for construction, material handling and narrow jobsites. Ask for the latest T390 price, power options, attachments and OEM configuration.

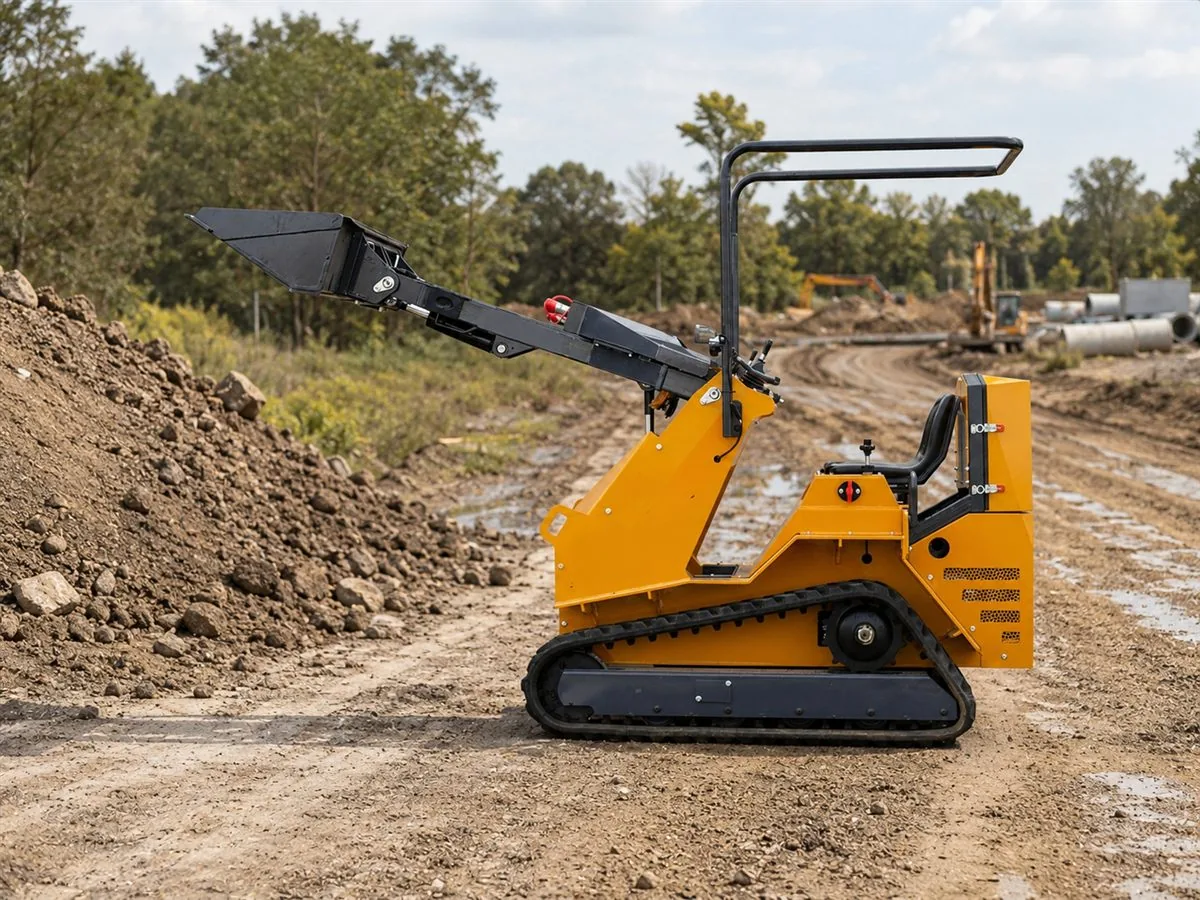

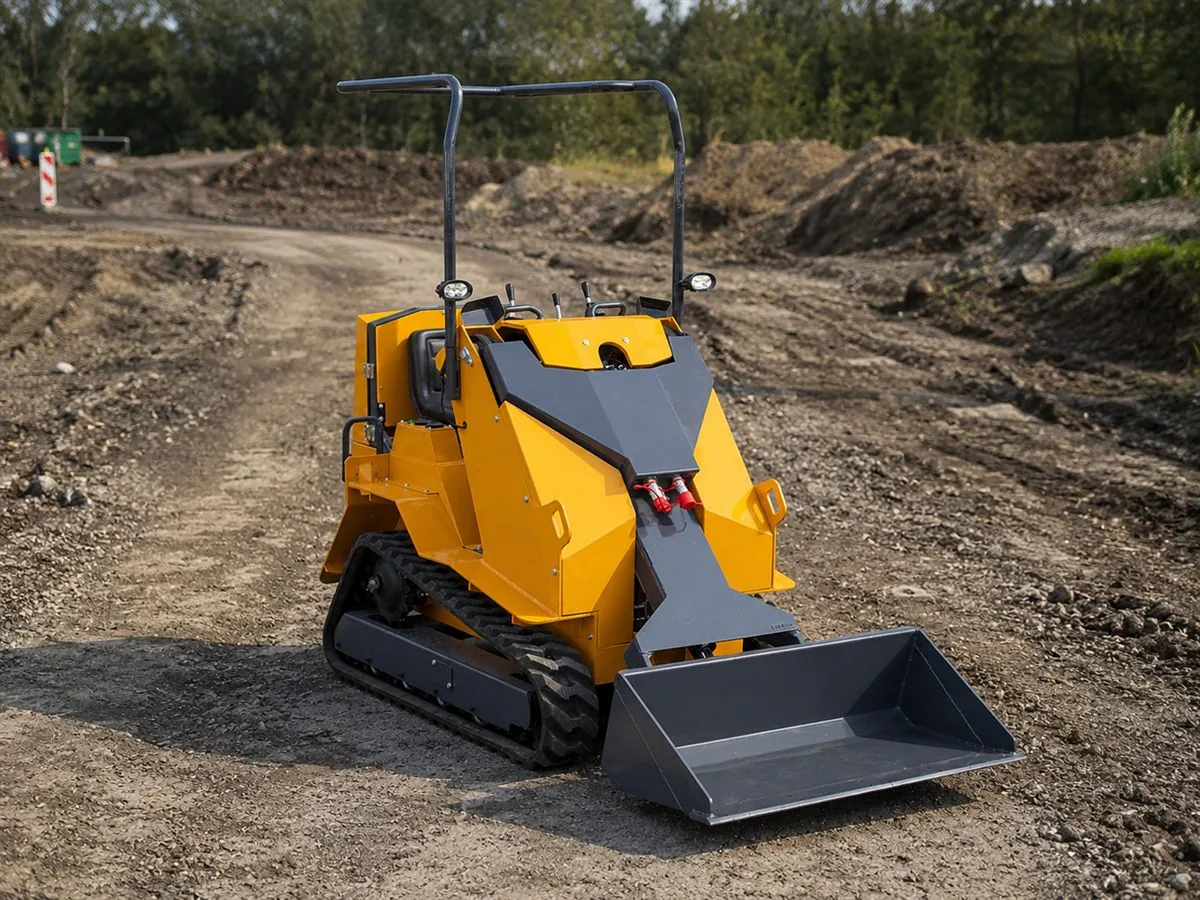

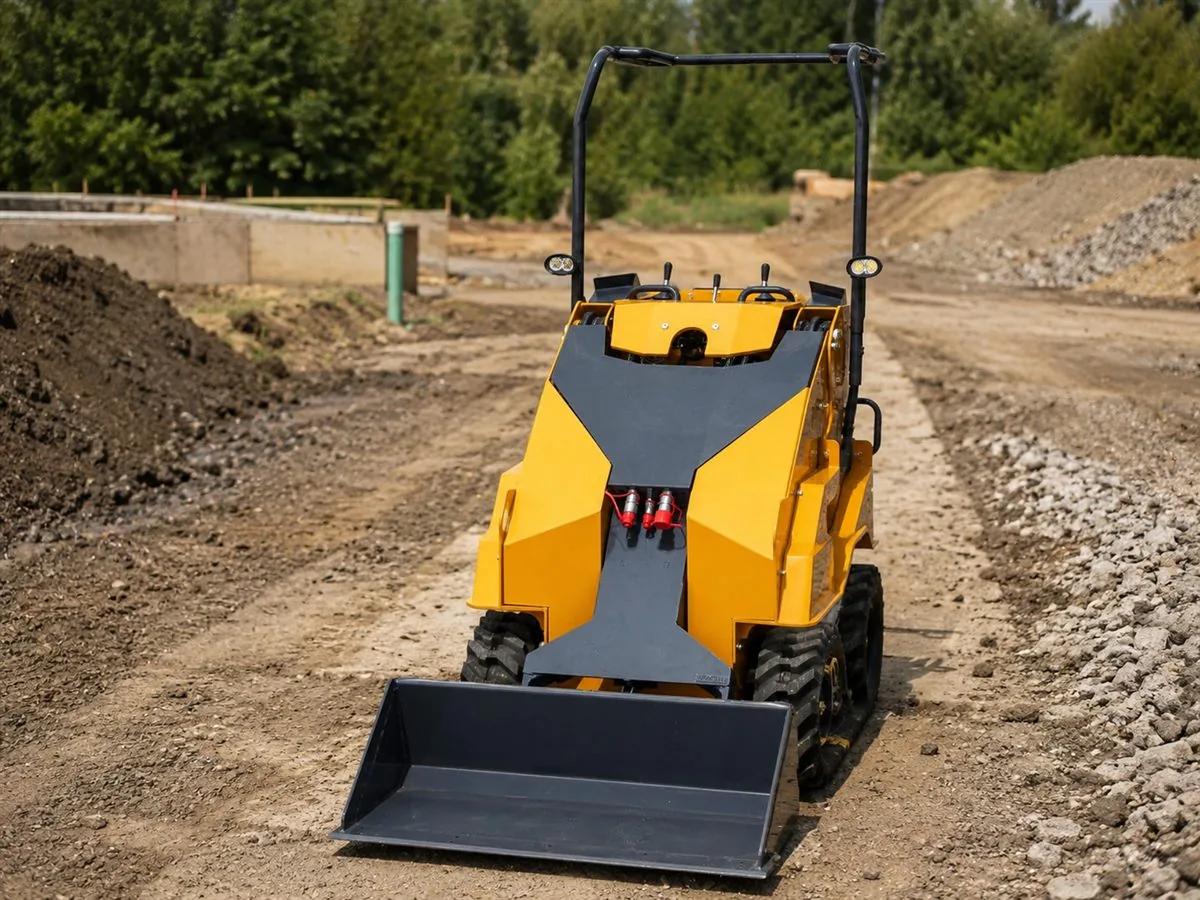

The T390 combines a 1070 kg operating weight, ergonomic seat and rubber-track chassis for buyers who want ride-on operation.

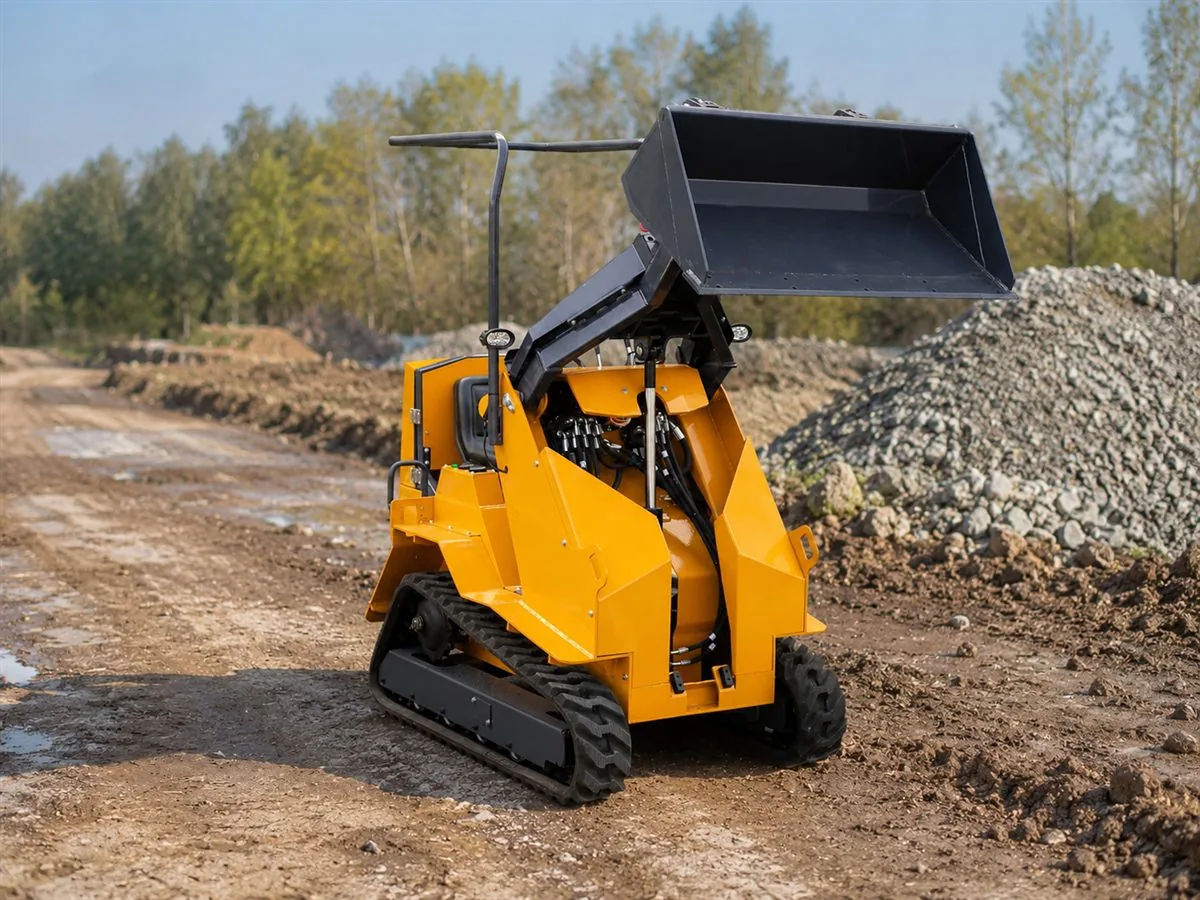

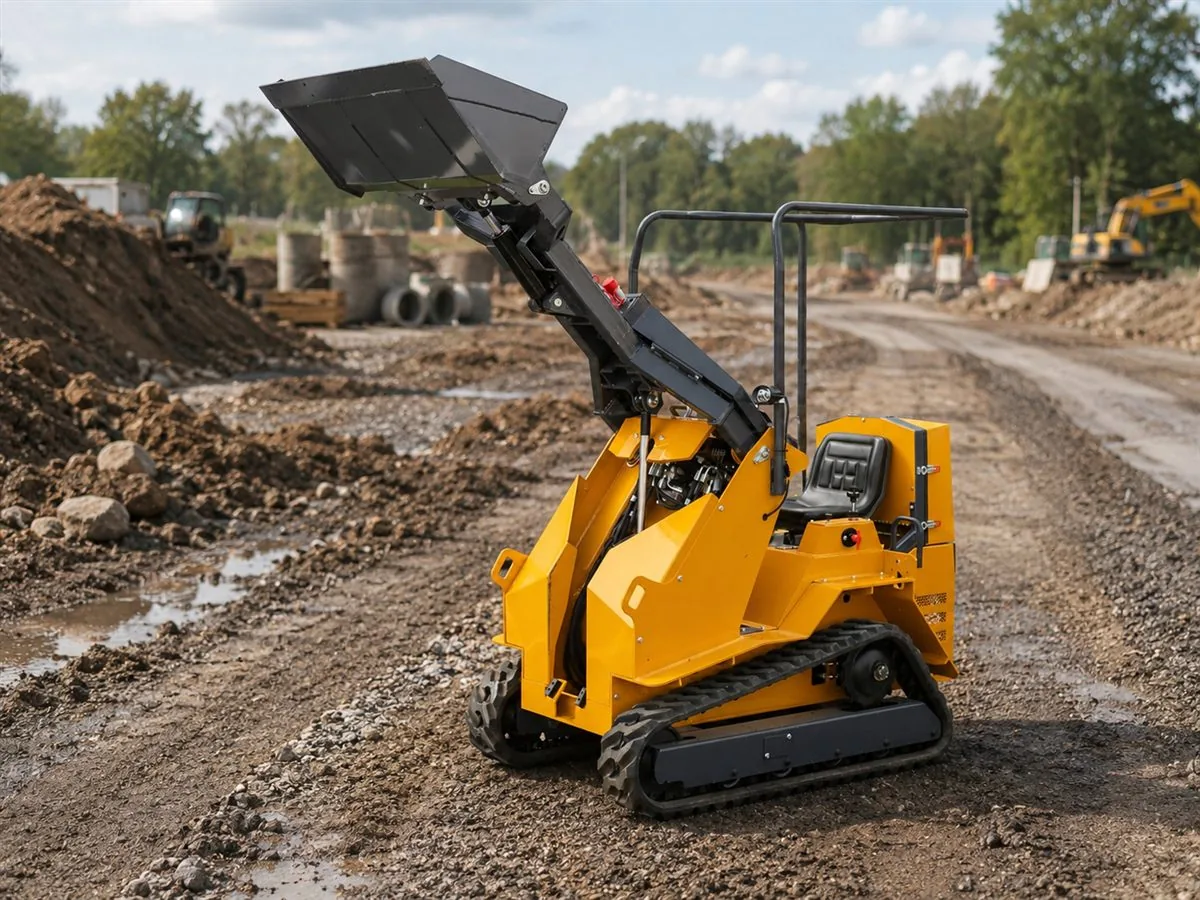

The front loading setup supports loose-material handling, construction cleanup and short-distance moves around firm yards and compact jobsites.
Use the bucket for loading, then match the T390 with forks, an auger, sweeper, trencher or another compatible attachment for the required job.
Looking for a T390 ride-on mini skid steer loader video? The product demonstration will show seated operation, rubber-track travel, steering, bucket lifting and attachment work.

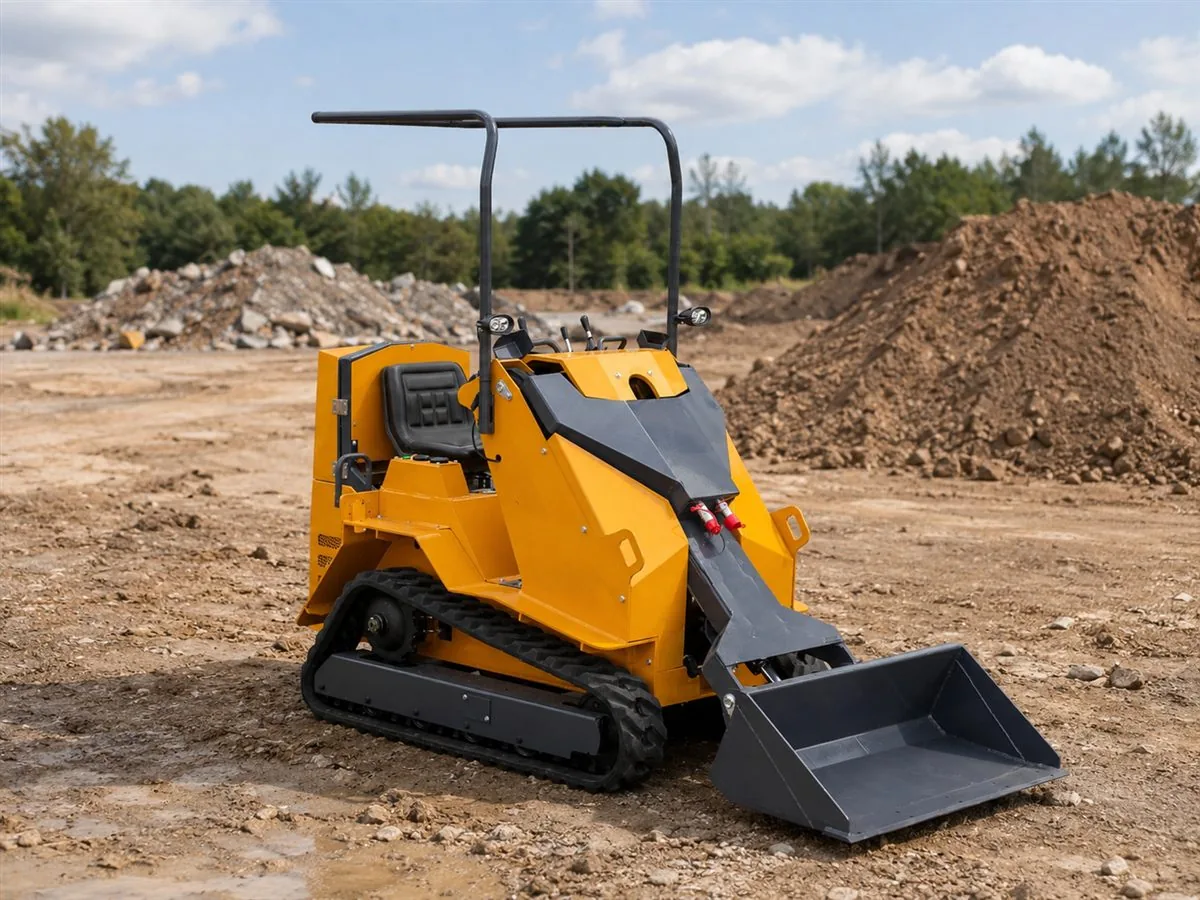

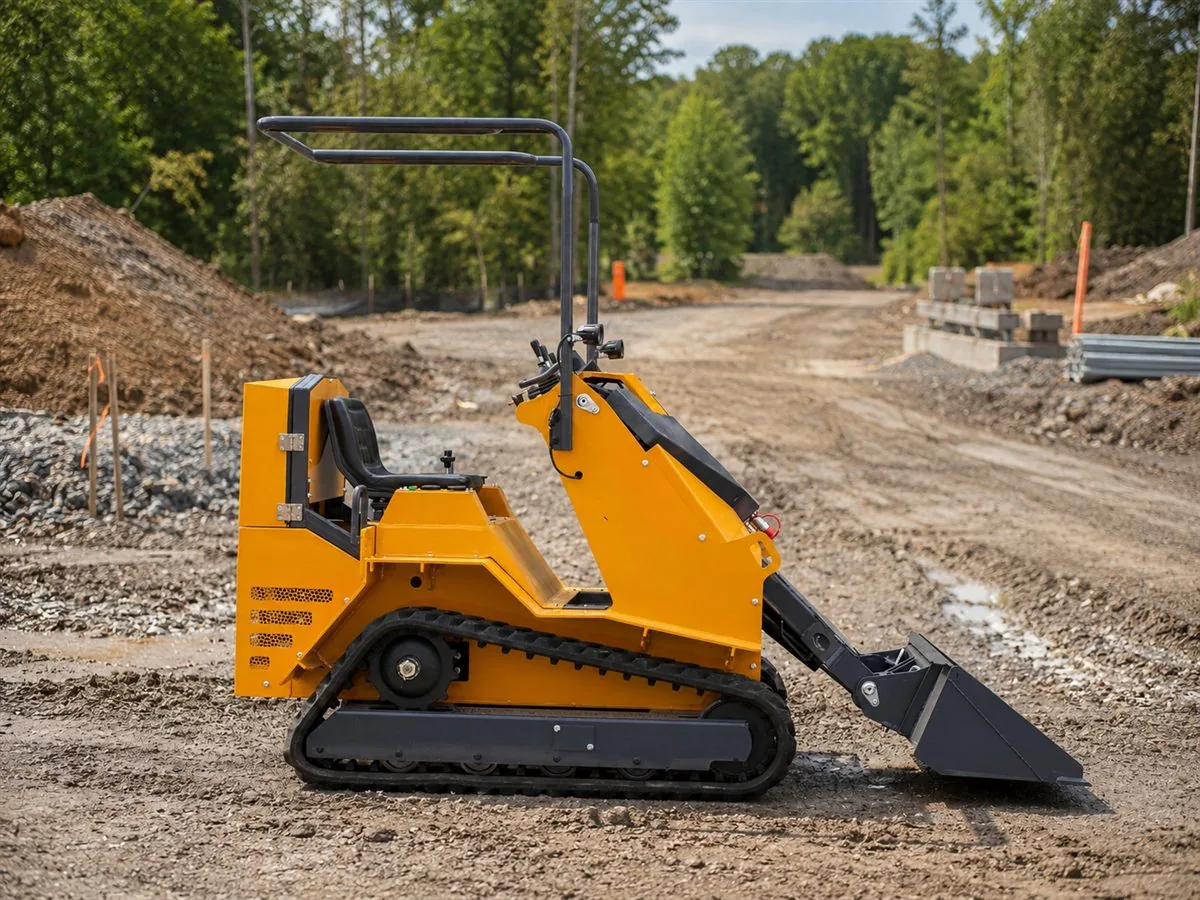

The T390 combines an ergonomic operator seat, published loading performance and a tracked footprint for compact working areas.

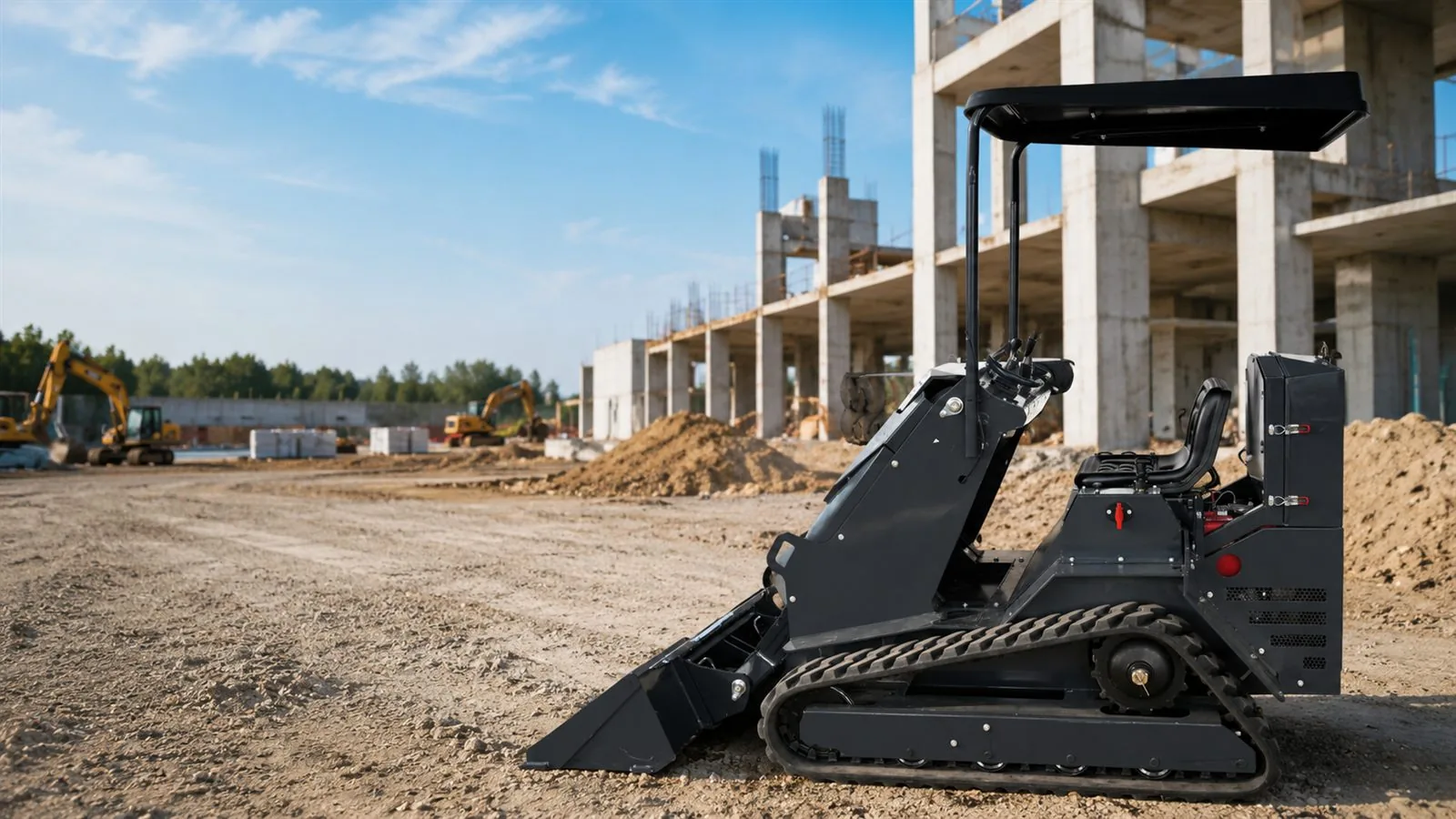

The T390 is positioned for construction loading, property work, dock handling, yard cleanup and rental fleets that need a compact ride-on carrier.

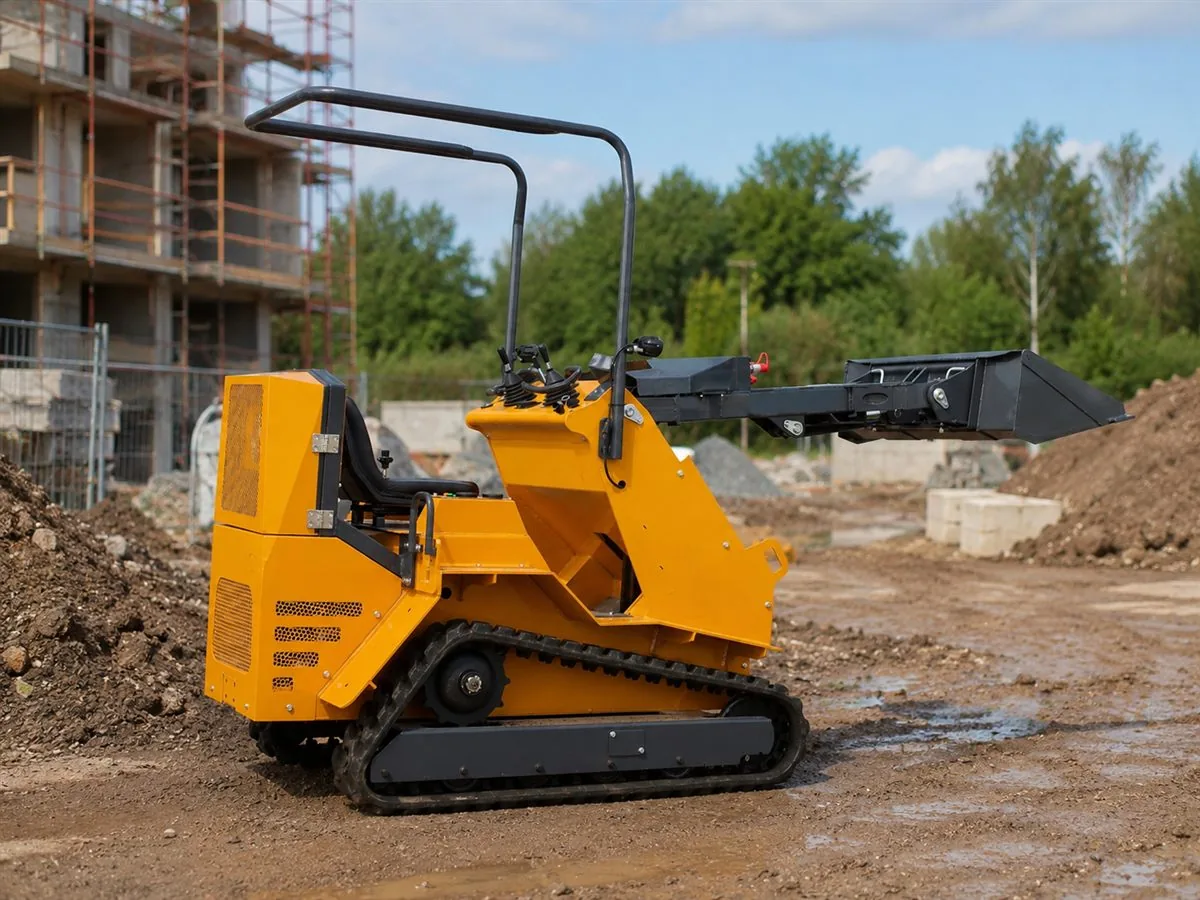

Its rubber-track chassis, 360-degree steering and seated control position support frequent task changes in narrow or uneven work areas.
Review the main performance, working range and machine dimensions before choosing attachments or requesting a shipping quote.
| Model | T390 |
|---|---|
| Operating weight | 1070 kg |
| Bucket capacity | 0.12 m³ |
| Climbing ability | 25 degree |
| Maximum breakout force | 3.5 kN |
| Rated load | 200 kg |
| Maximum load | 300 kg |
| Travel speed | 0-6 km/h |
| Three-item working cycle | 9 s |
| Bucket width | 1150 mm |
|---|---|
| Maximum loading height | 1830 mm |
| Maximum dumping height | 1471 mm |
| Maximum operating height | 2425 mm |
| Height to bucket pin | 2000 mm |
| Bucket dump angle at maximum height | 63° |
| Minimum machine height | 1250 mm |
| Tail length | 220 mm |
| Ground clearance | 226 mm |
| Dumping distance | 526 mm |
| Overall dimensions | 2244 × 1150 × 1280 mm |
|---|---|
| Length including bucket | 2244 mm |
| Length excluding bucket | 1900 mm |
| Track contact length | 1300 mm |
| Rubber track model | 180 × 72 × 45 |
| Working system pressure | 17 bar |
|---|---|
| Power options listed in brochure | Lithium electric / KOOP / Rato / Briggs & Stratton |
| Listed models | Lithium iron phosphate / 192F / R420 / XR13.5 |
| Listed rated power | 6 kW, 72 V, 125 Ah / 7.5 kW / 8.6 kW / 9.9 kW |
| Cylinder | 1 for combustion-engine options |
| Intake method | Natural aspiration |
| Emission standard | EPA / EURO 5; confirm documents for selected power option |
| Fuel tank capacity | 5 L for combustion-engine configurations |
The T390 serves buyers who need a compact ride-on tracked loader for construction, dock handling, yards, livestock areas and property work.
Move loose material and clean compact jobsites where rubber-track stability is useful.
Support loading, cleanup and attachment work on soft soil and changing farm conditions.
Handle soil, gravel and packaged material with a matched bucket or fork.
Offer a tracked compact loader for contractors working across mixed ground conditions.
Compare practical attachment packages for landscaping, drilling, trenching, mowing, cleaning and compaction. Final matching depends on the mounting interface and hydraulic requirements.

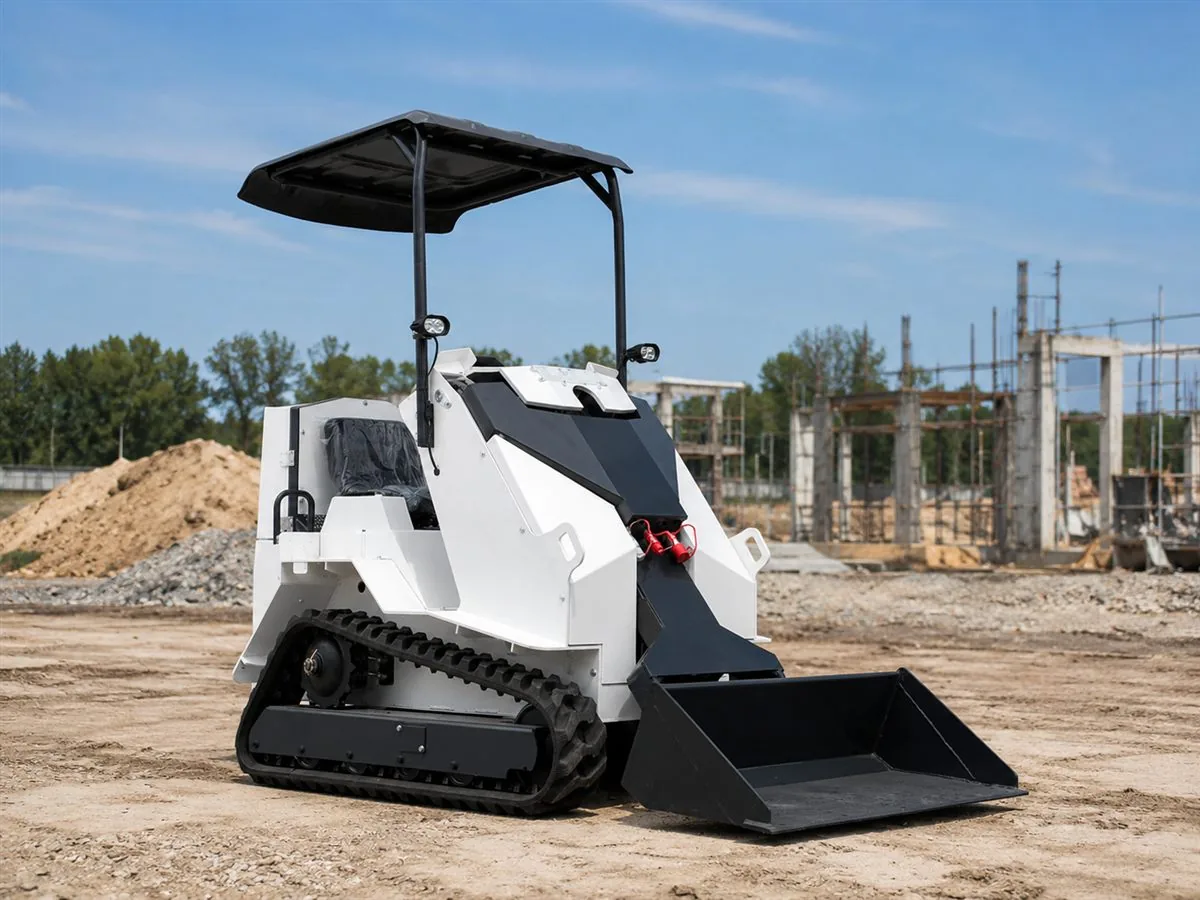

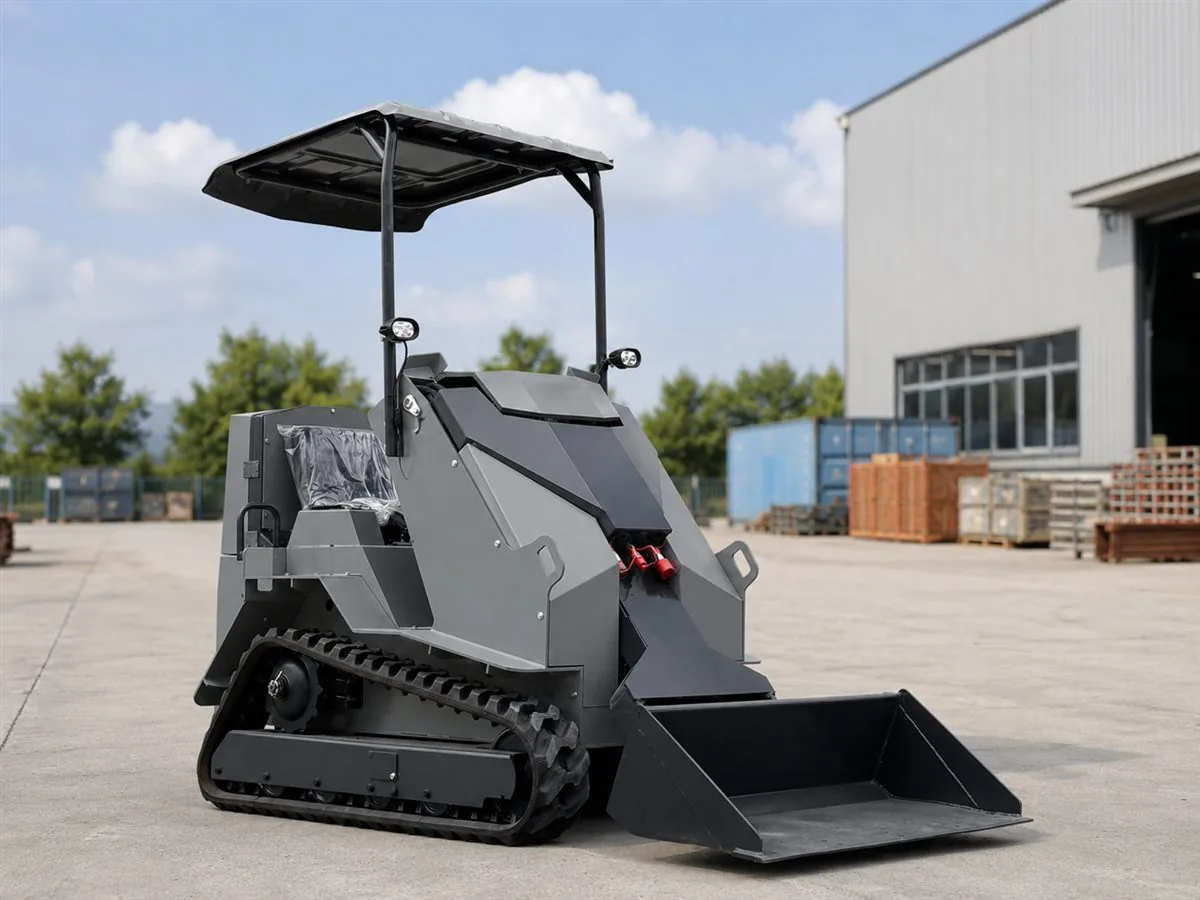

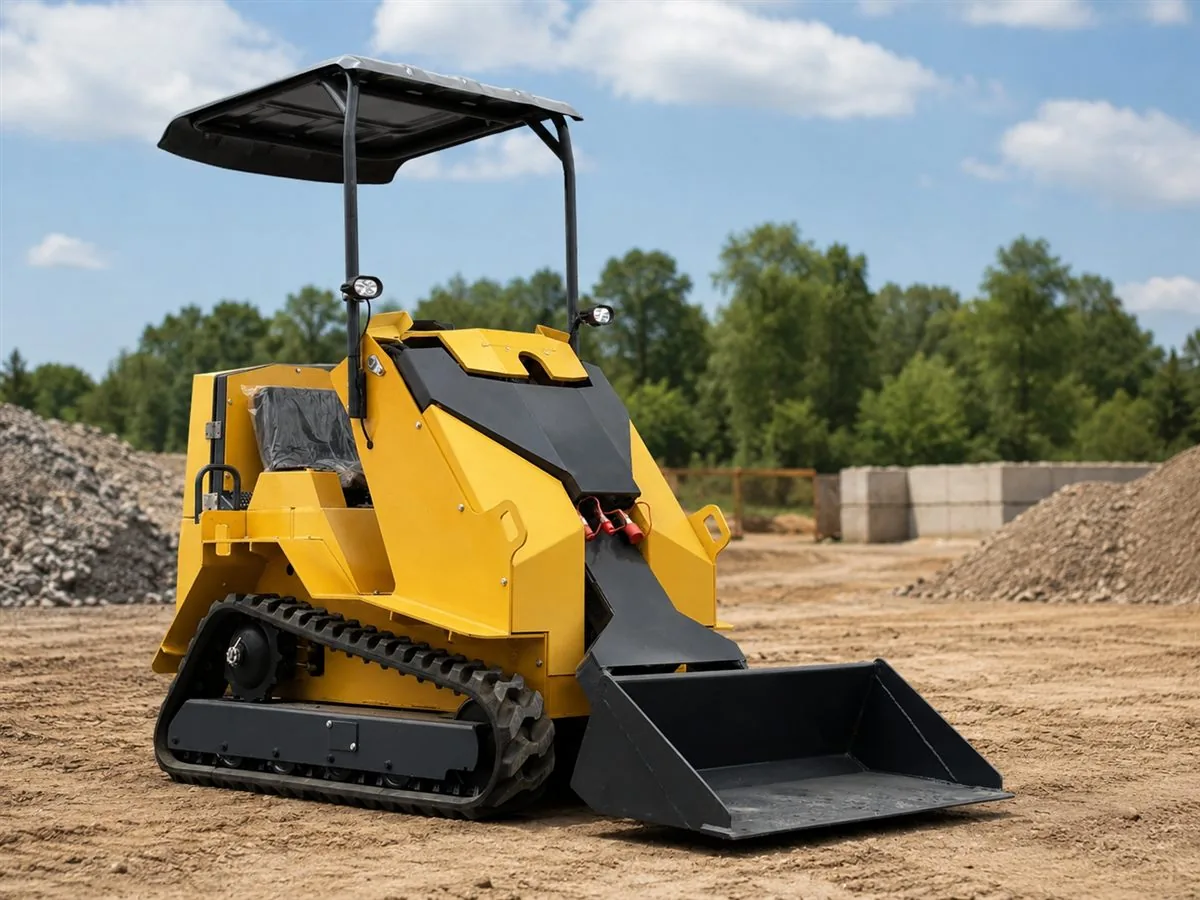

KORVA supports T390 color customization, functional configuration and OEM branding for overseas dealers, rental fleets and equipment distributors.

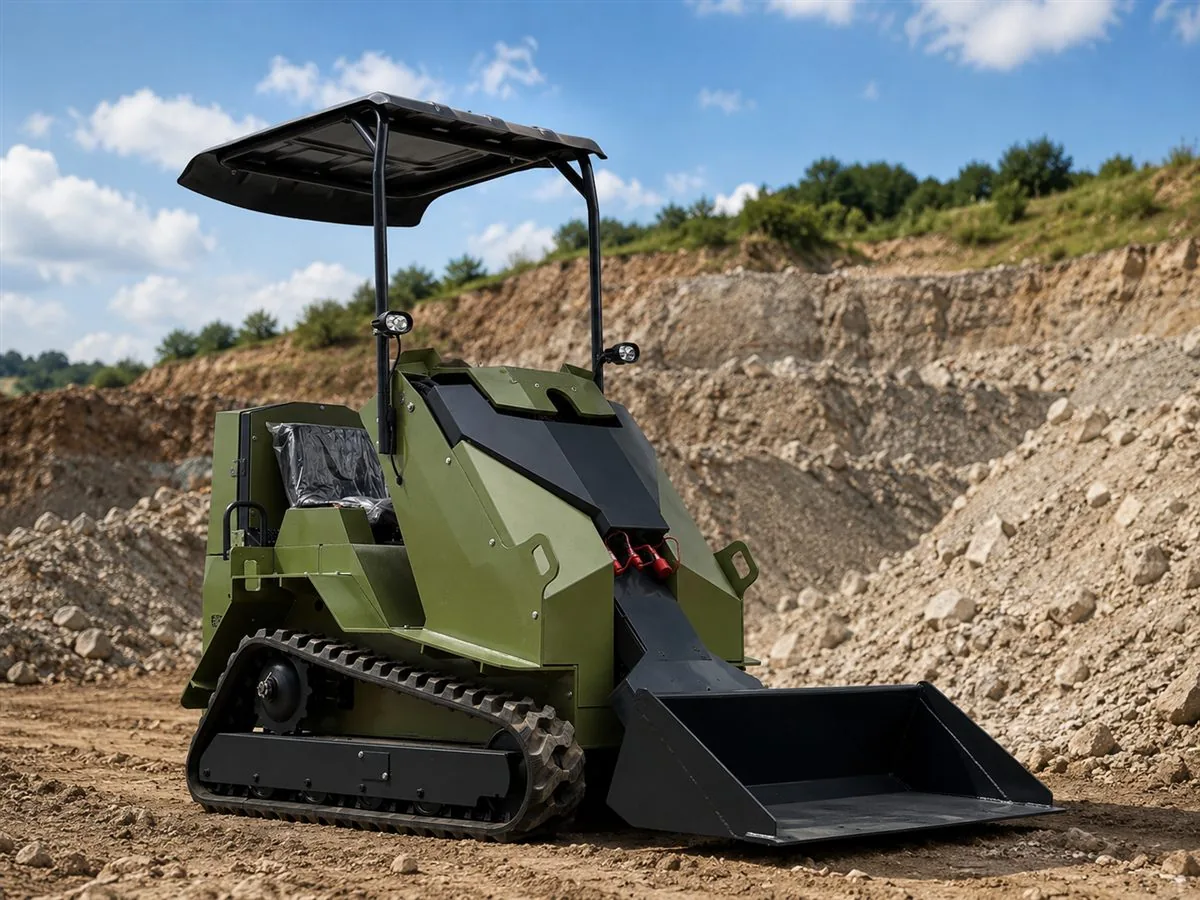

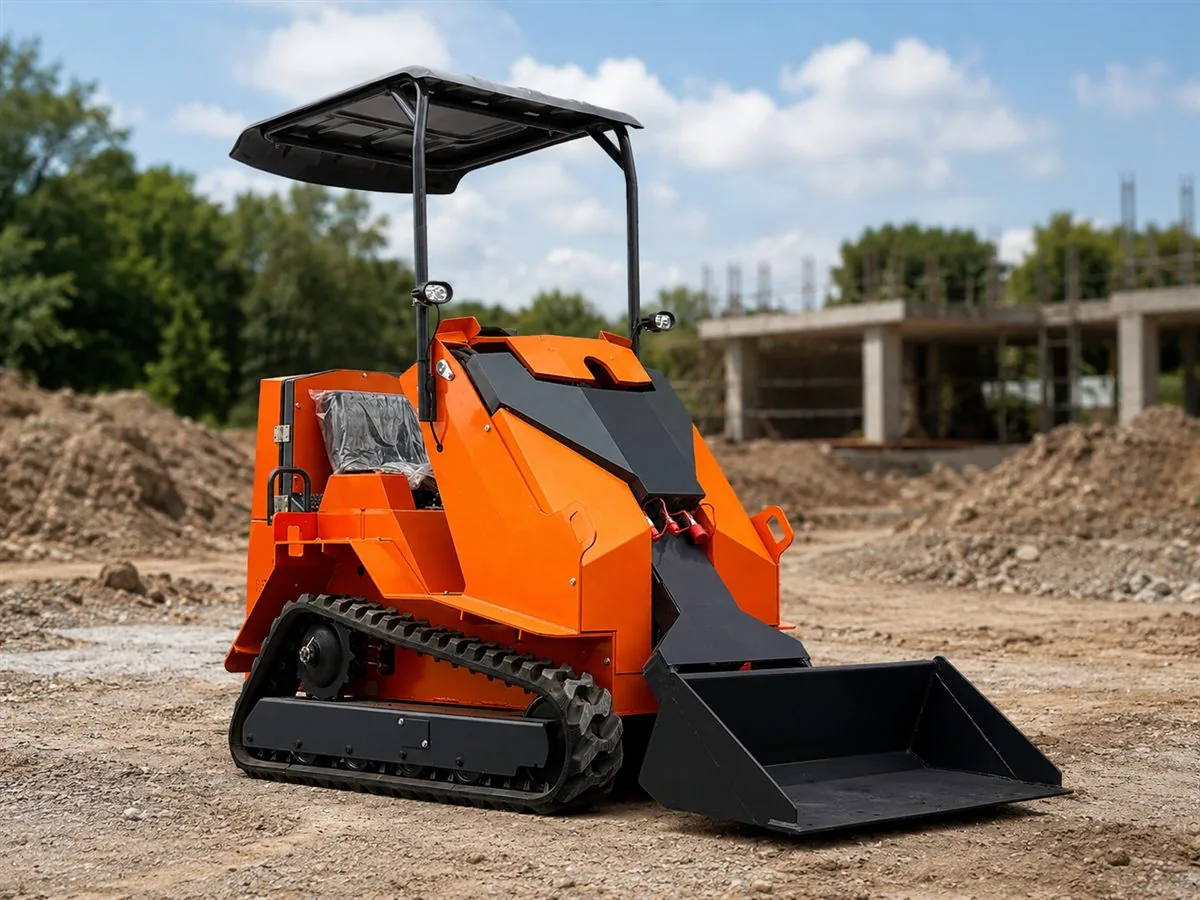

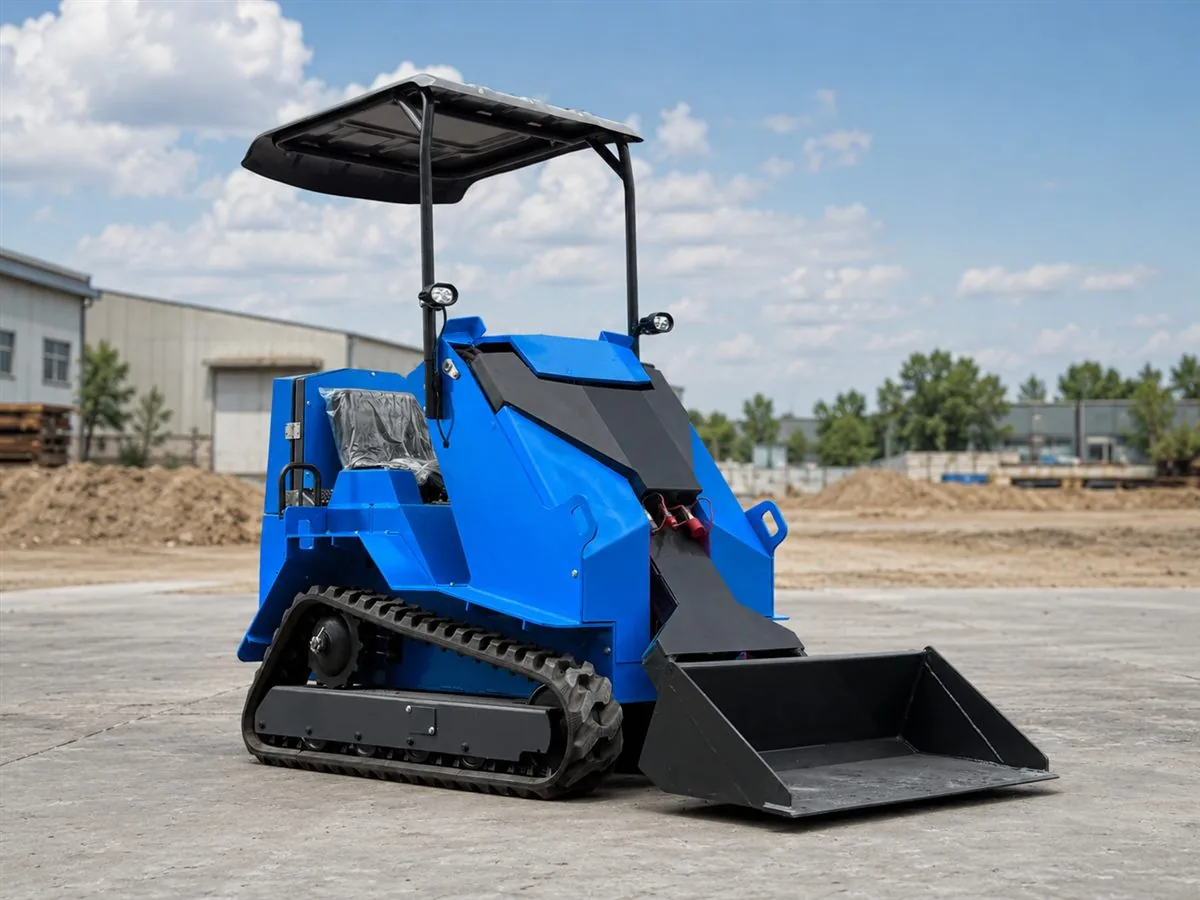

Choose a machine color that fits your fleet or dealer brand. Final paint color, finish and branding details are confirmed before production.
Share your sales channel, target application and destination market so the machine appearance, functions and attachment package can be discussed before quotation.
Send your preferred color, power option, branding requirements, attachments, quantity and destination. We will review the available T390 customization options and prepare a matched quotation.
Both models keep a compact working footprint, but the undercarriage changes how the machine behaves on different ground conditions.

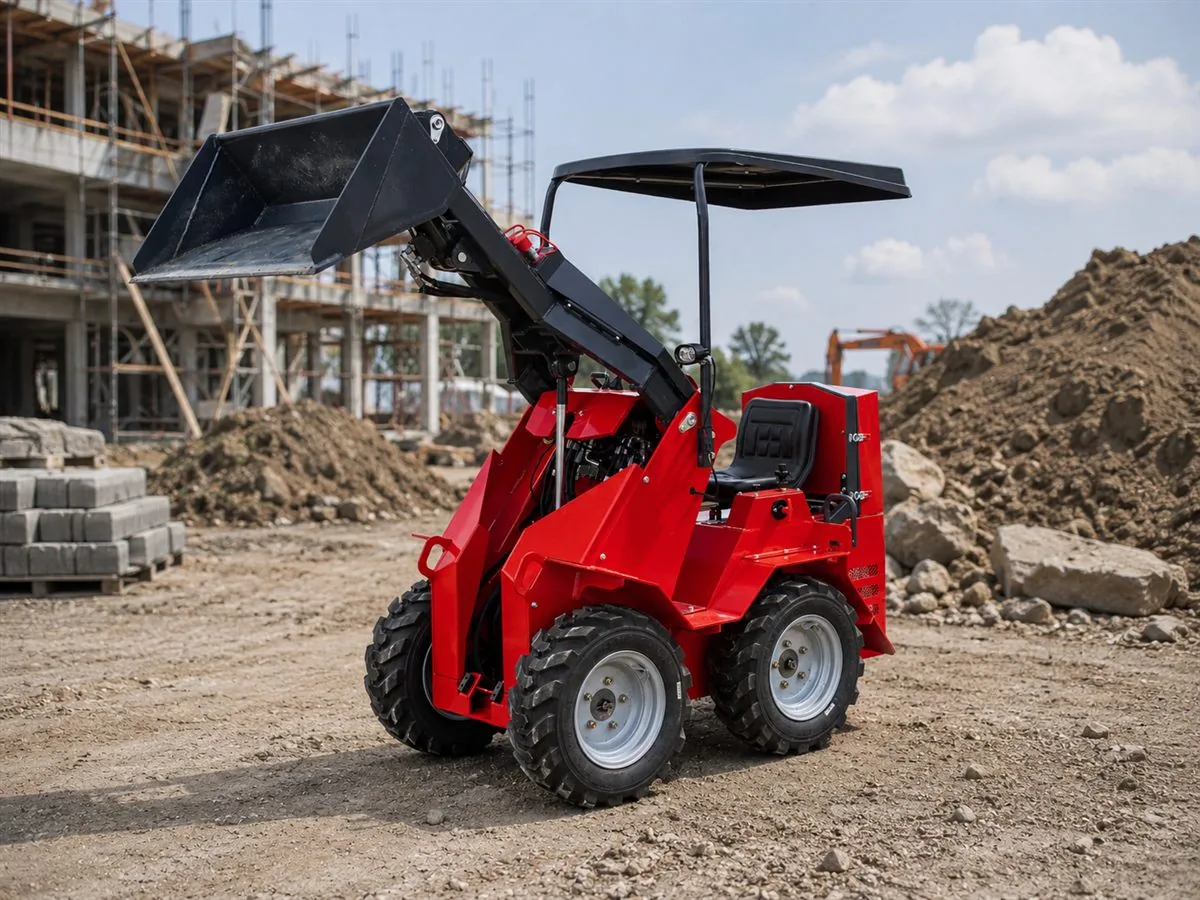

Choose the S390 when wheel mobility on firm construction yards and compacted surfaces is the priority. Confirm its final specification and tire option before quotation.
Choose the T390 when rubber-track traction and a more stable footprint are priorities for soft soil, muddy farms or mixed construction sites.
| Buyer need | S390 mini skid steer loader | T390 mini skid steer loader |
|---|---|---|
| Chassis type | Ride-on wheel loader | Ride-on tracked loader with rubber tracks |
| Best ground condition | Hard ground, compacted soil, paved yards | Muddy ground, soft soil, mixed terrain |
| Main buyer priority | Wheel mobility and movement on firm ground | Stable traction, better grip and soft-ground confidence |
| Typical application | Paved yards, compacted construction sites and material handling | Farm use, muddy sites, mixed-terrain construction |
| Best sales angle | Firm-ground wheel mobility | Rubber-track traction and longer ground contact |
Send a photo of the working ground, your attachment list and destination country. We will help you compare the S390 wheel model and T390 tracked model before quotation.
Compare S390 and T390See how compact loader components, assembly stations and finished machines support T390 OEM orders before requesting packing and overseas shipping details.

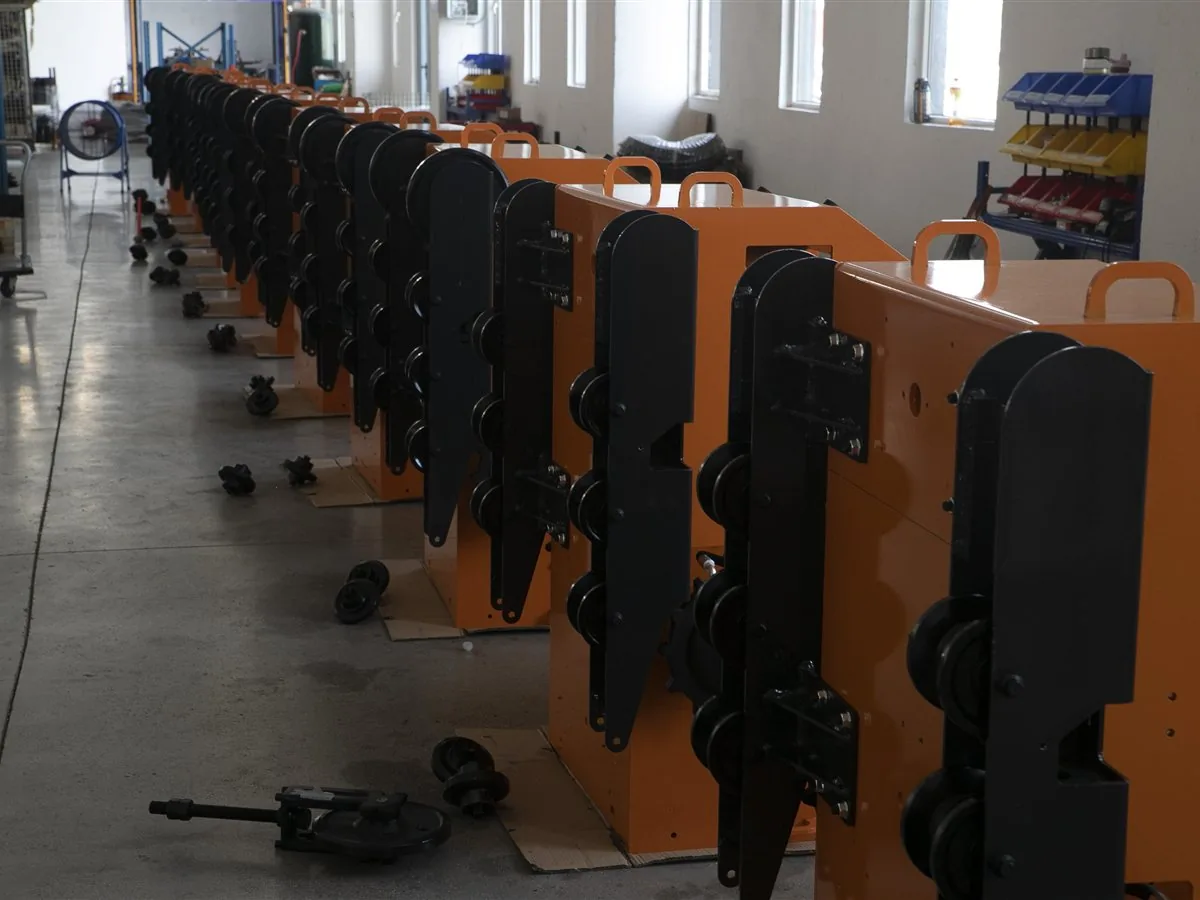

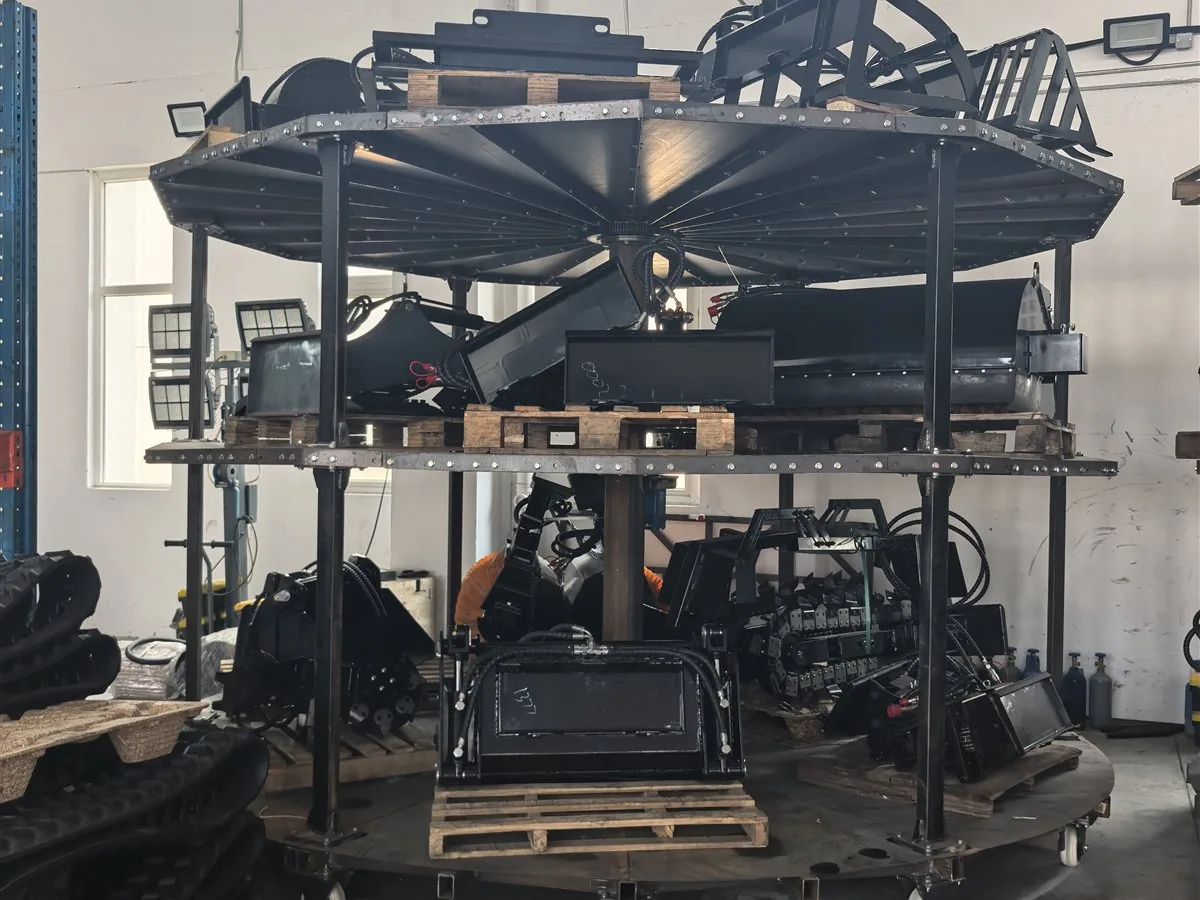

Loader frames, guards and structural components are organized before assembly. Overseas buyers can discuss machine color, decals and OEM presentation before production.

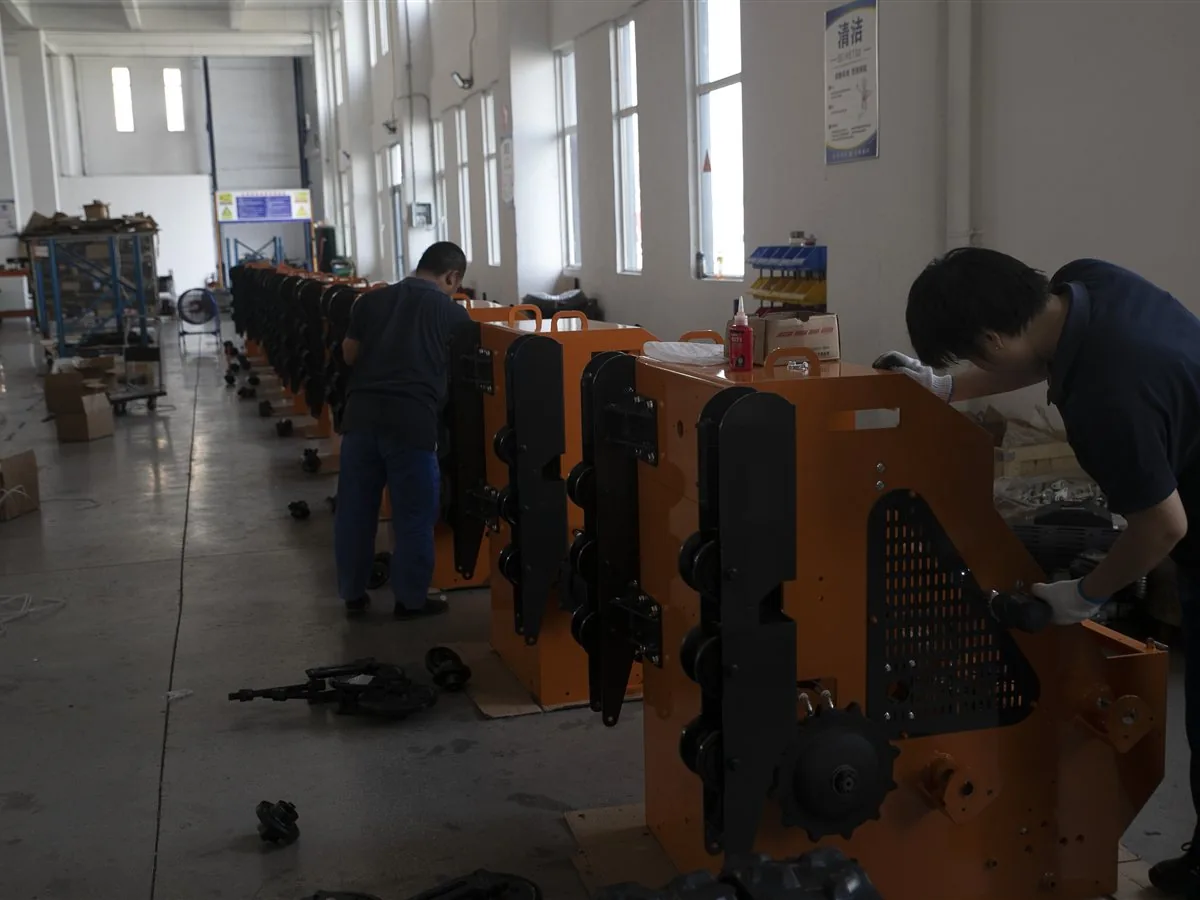

Hydraulic lines, controls and body components are fitted at the assembly station. Your T390 engine, color and attachment requirements are confirmed before production.
Multiple compact loaders move through the production process for configuration and completion. Dealer and rental-fleet requirements can be discussed by quantity and destination.

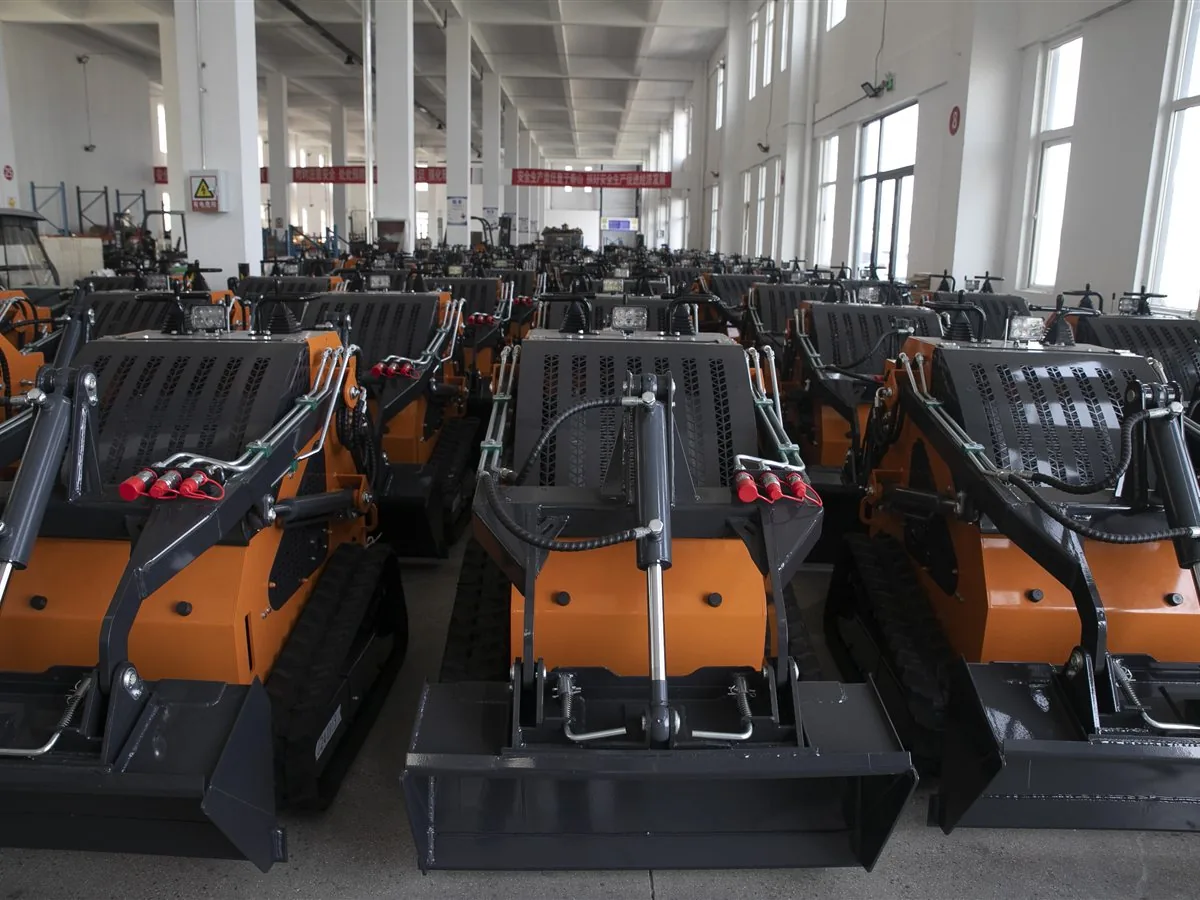

Finished loaders are staged before packing and shipment preparation. Ask for current packing, loading and container photos together with your shipping quotation.
Need current workshop, packing or container-loading photos for your order?
Request Production and Shipping PhotosShort answers for the first quotation step.
The T390 is suited to compact construction sites, material yards, livestock areas, property work and rental fleets that need ride-on controls with rubber-track traction.
The T390 is the tracked version. Buyers prioritizing wheel mobility on firm ground can compare it with the S390 wheel model.
Yes. The T390 uses an operator seat and ride-on controls. Confirm the selected power option and attachment package before ordering.
Bucket, forks, auger, sweeper, trencher and other tools can be discussed after confirming the mounting interface and hydraulic requirements.
The brochure lists lithium electric, KOOP, Rato and Briggs & Stratton options. Final power, emission documents and market suitability must be confirmed in the quotation.
Send your destination, quantity, attachments, power preference and OEM requirements for a matched quotation.
KORVA supports T390 ride-on loader buyers with export wooden packing photos, container loading proof and shipment readiness updates.
Each skid steer loader is securely packed to help protect key components during sea transportation.

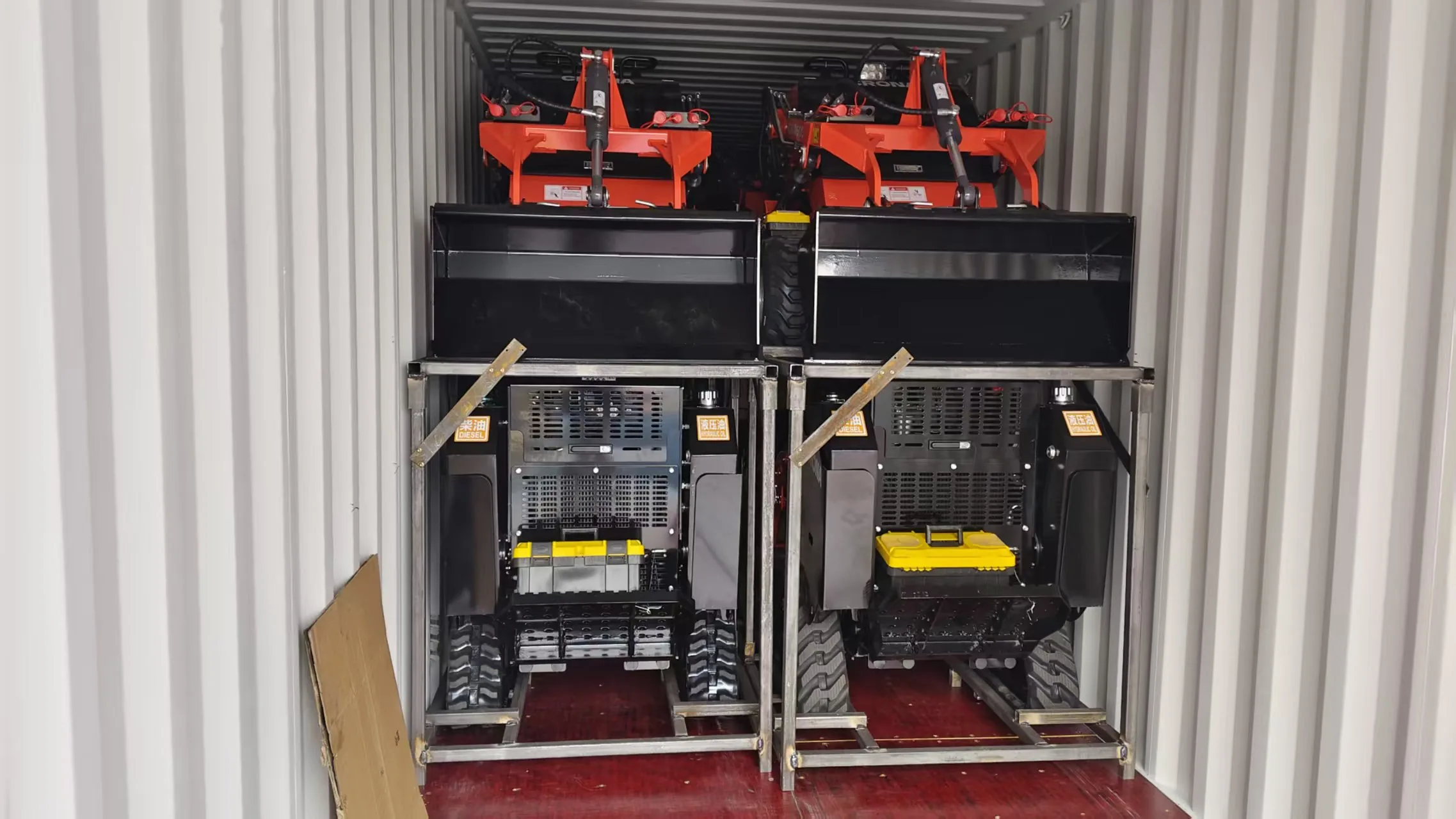

Professional loading helps improve container space use and supports safer overseas shipment.

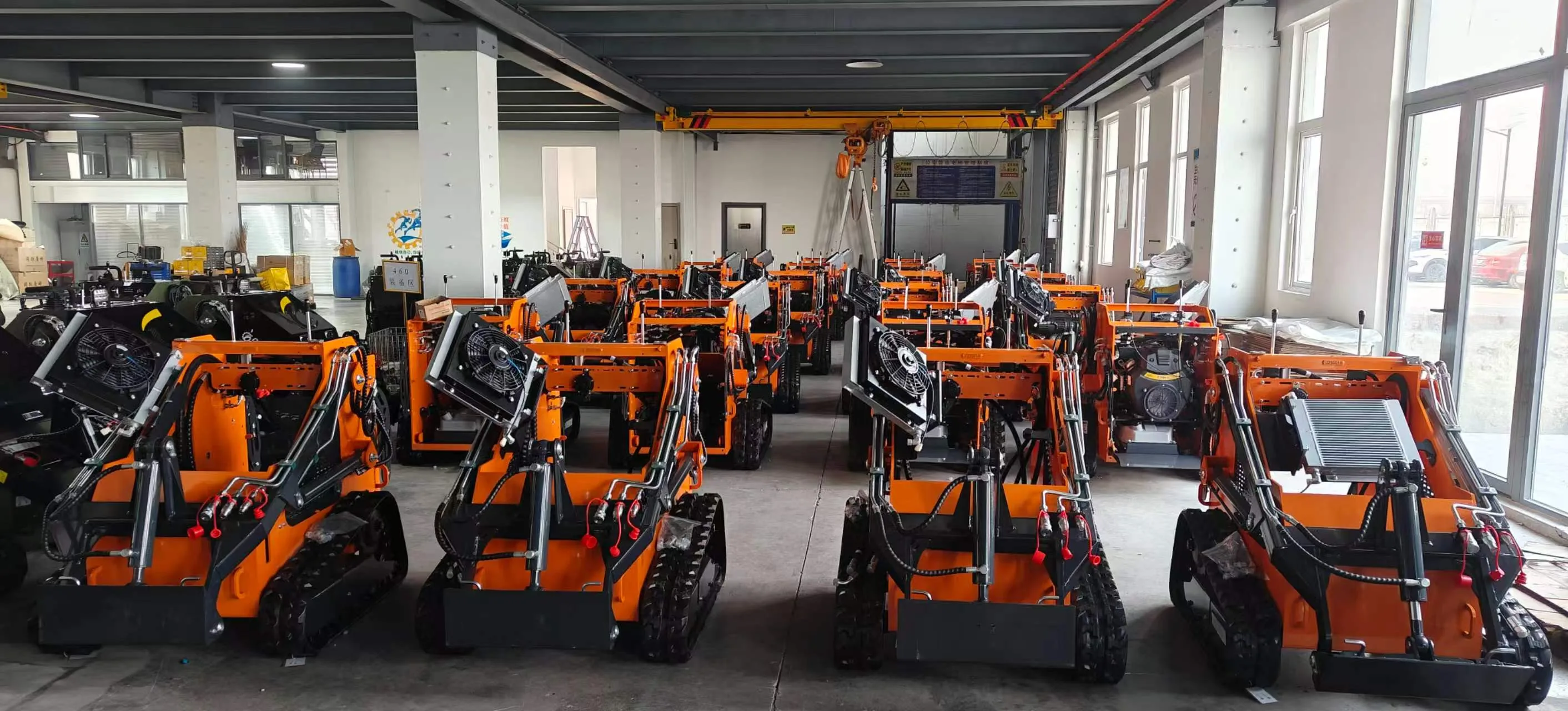

Packed machines are prepared for shipment with organized loading arrangements for overseas buyers.
