A 1400 kg hydraulic-pilot wheel mini skid steer with 400 kg rated load for construction yards, paved areas, farm lanes and material-handling work.

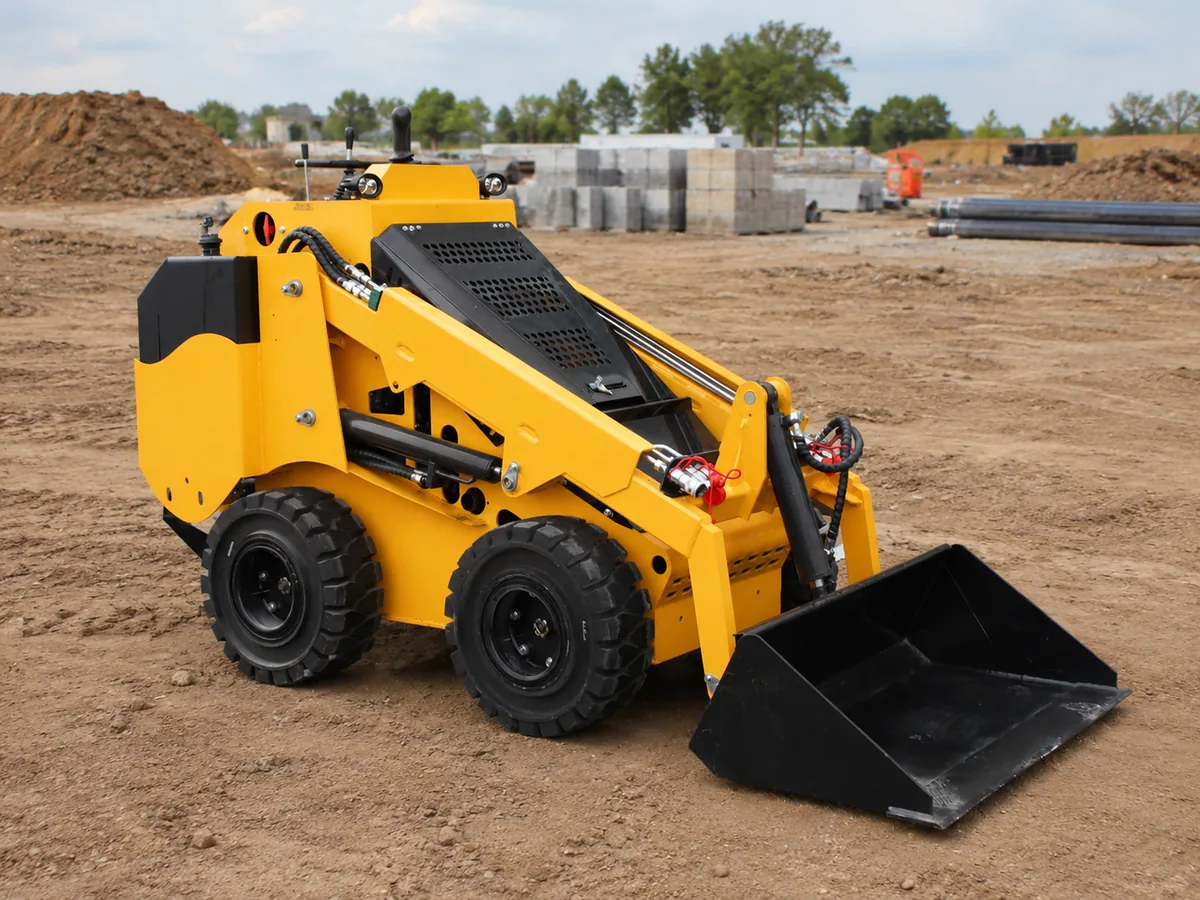

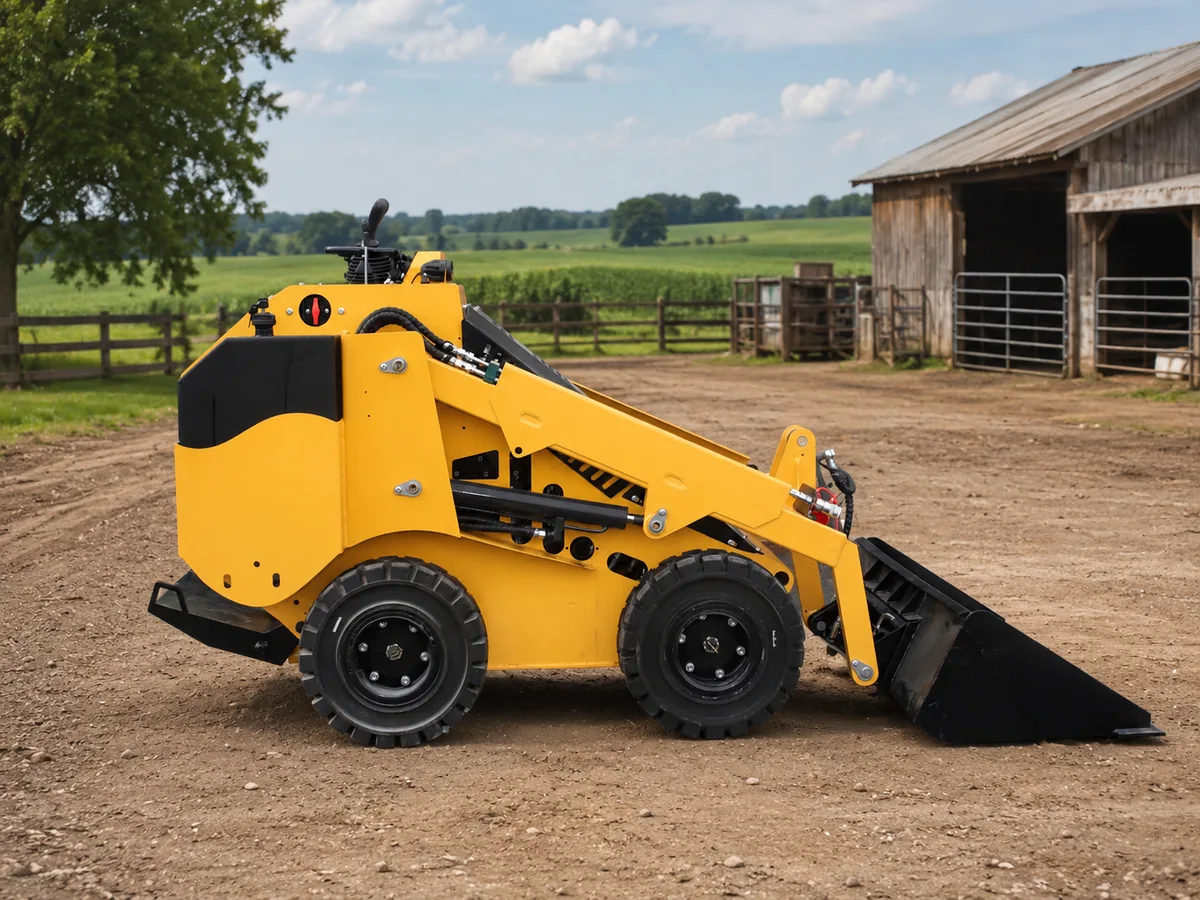

View the S750 from multiple working angles and examine its compact wheel chassis, loading structure and operator controls. The gallery highlights features relevant to construction, farm maintenance and material-handling work.

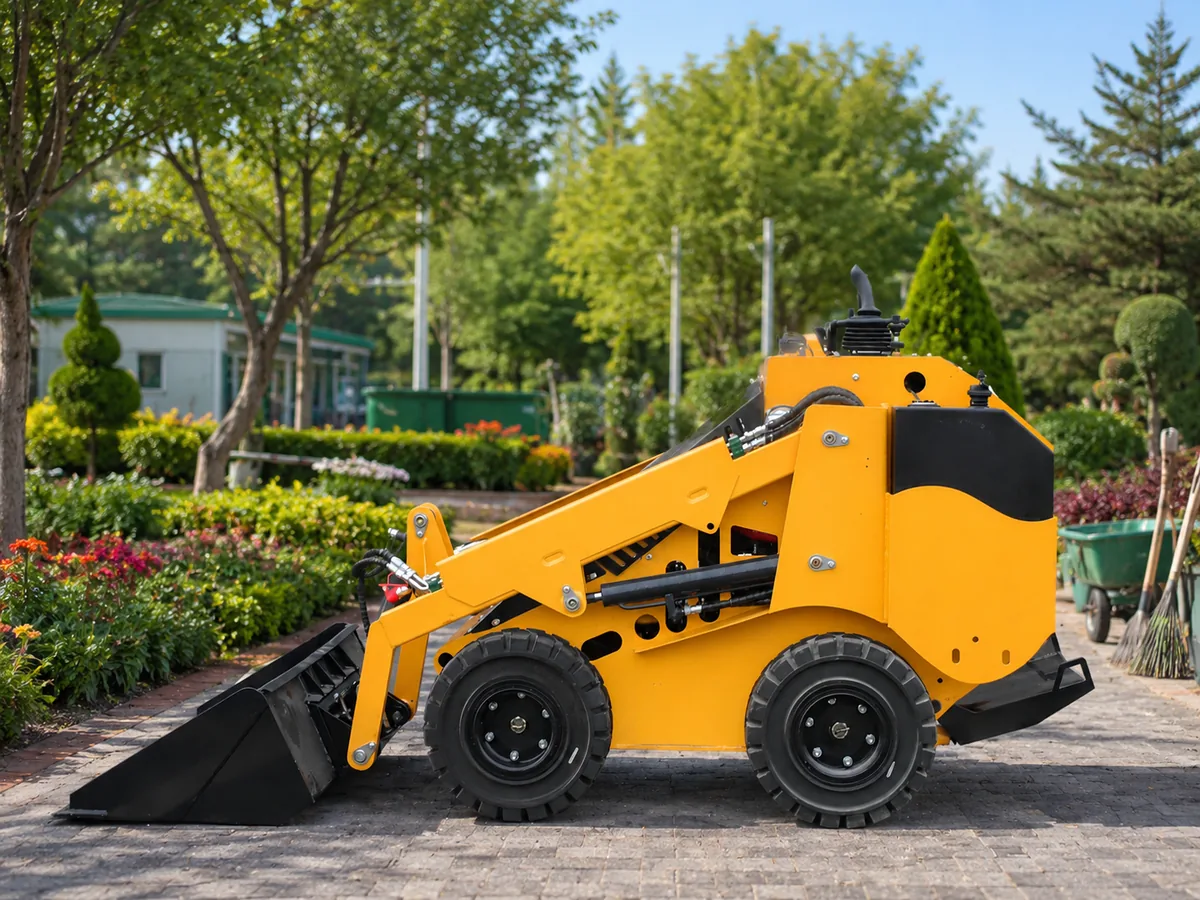

The S750 combines a 1400 kg operating weight, 400 kg rated load and 450 kg maximum load with a compact wheel chassis for firm working surfaces.
The front loading setup supports loose-material handling, construction cleanup and short-distance moves around firm yards and compact jobsites.
Two piston pumps, one gear pump and dual auxiliary outputs support matched buckets, forks, augers, sweepers, trenchers and other compatible attachments.

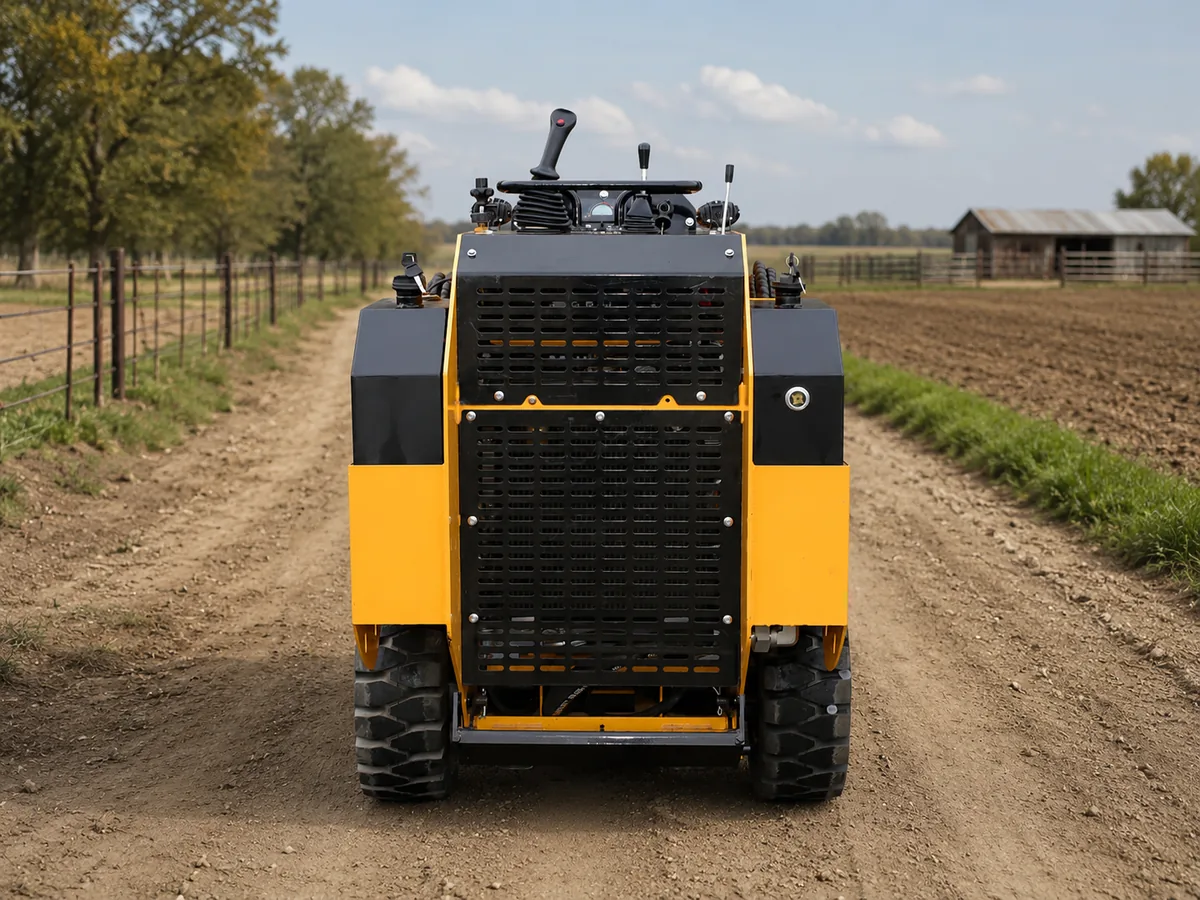

The compact rear profile supports work around buildings, material stacks and access routes where a full-size skid steer is less practical.

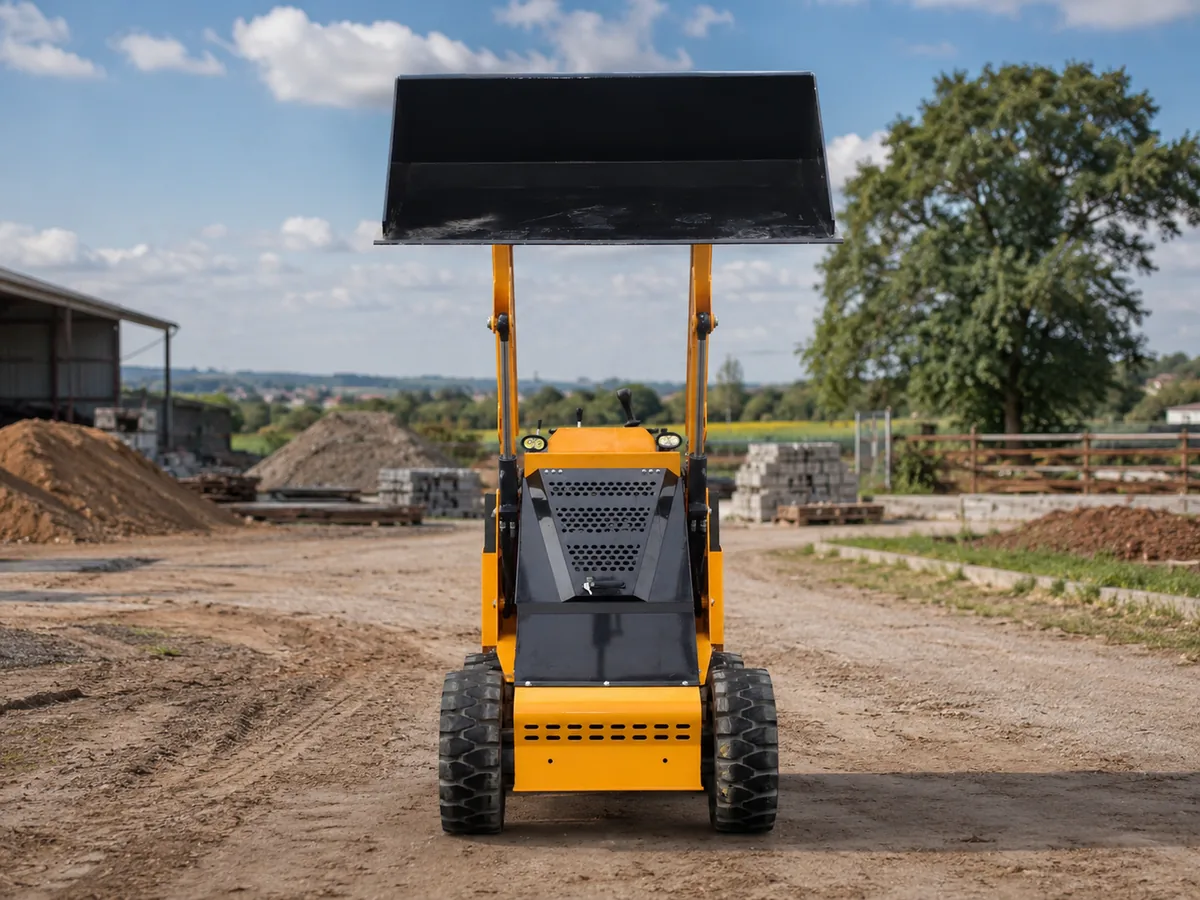

The S750 mini skid steer loader combines a 1270 mm bucket with dual auxiliary hydraulic outputs for loading, trenching, sweeping and other powered attachment work.
The S750 is available with YANMAR 3TNV80, KUBOTA D1105 or Laidong 385 diesel power, plus a 14 kW 72V 200Ah lithium iron phosphate configuration.
Looking for an S750 wheel mini skid steer loader video? The product demonstration will show wheel travel, hydraulic pilot steering, bucket lifting and attachment operation on firm working surfaces.
The S750 combines 400 kg rated load, hydraulic pilot operation and solid tires for efficient movement on paved yards, compacted soil and maintained farm lanes.
The S750 is positioned for construction loading, farm work, bulk material handling and rental fleets that need a compact carrier for changing ground conditions.
Its wheel chassis supports frequent travel on firm surfaces, while hydraulic pilot controls support precise loading and attachment work.
Review the main performance, working range and machine dimensions before choosing attachments or requesting a shipping quote.
| Model | S750 |
|---|---|
| Operating weight | 1400 kg |
| Bucket capacity | 0.15 m³ |
| Climbing ability | 25 degree |
| Maximum breakout force | 4.5 kN |
| Rated load | 400 kg |
| Maximum load | 450 kg |
| Travel speed | 0-6 km/h |
| Three-item working cycle | 9 s |
| Bucket width | 1270 mm |
|---|---|
| Maximum loading height | 2140 mm |
| Maximum dumping height | 1700 mm |
| Maximum operating height | 2920 mm |
| Height to bucket pin | 2300 mm |
| Bucket dump angle at maximum height | 63° |
| Minimum machine height | 1550 mm |
| Tail length | 500 mm |
| Ground clearance | 240 mm |
| Dumping distance | 150 mm |
| Overall dimensions | 2700 × 1270 × 1550 mm |
|---|---|
| Length including bucket | 2700 mm |
| Length excluding bucket | 2070 mm |
| Wheelbase | 860 mm |
| Tire type | Solid tires |
| Tire model | 21 × 8-9 |
| Working system pressure | 25 bar |
|---|---|
| Hydraulic pump package | Two piston pumps and one gear pump |
| Auxiliary hydraulics | Dual hydraulic outputs |
| Control system | Hydraulic pilot operation |
| Diesel engine options | YANMAR 3TNV80 / KUBOTA D1105 / Laidong 385 |
| Electric option | 14 kW, 72V 200Ah lithium iron phosphate battery |
| Additional options | Remote control and bucket self-leveling valve |
| Fuel tank capacity | 30 L for diesel configuration |

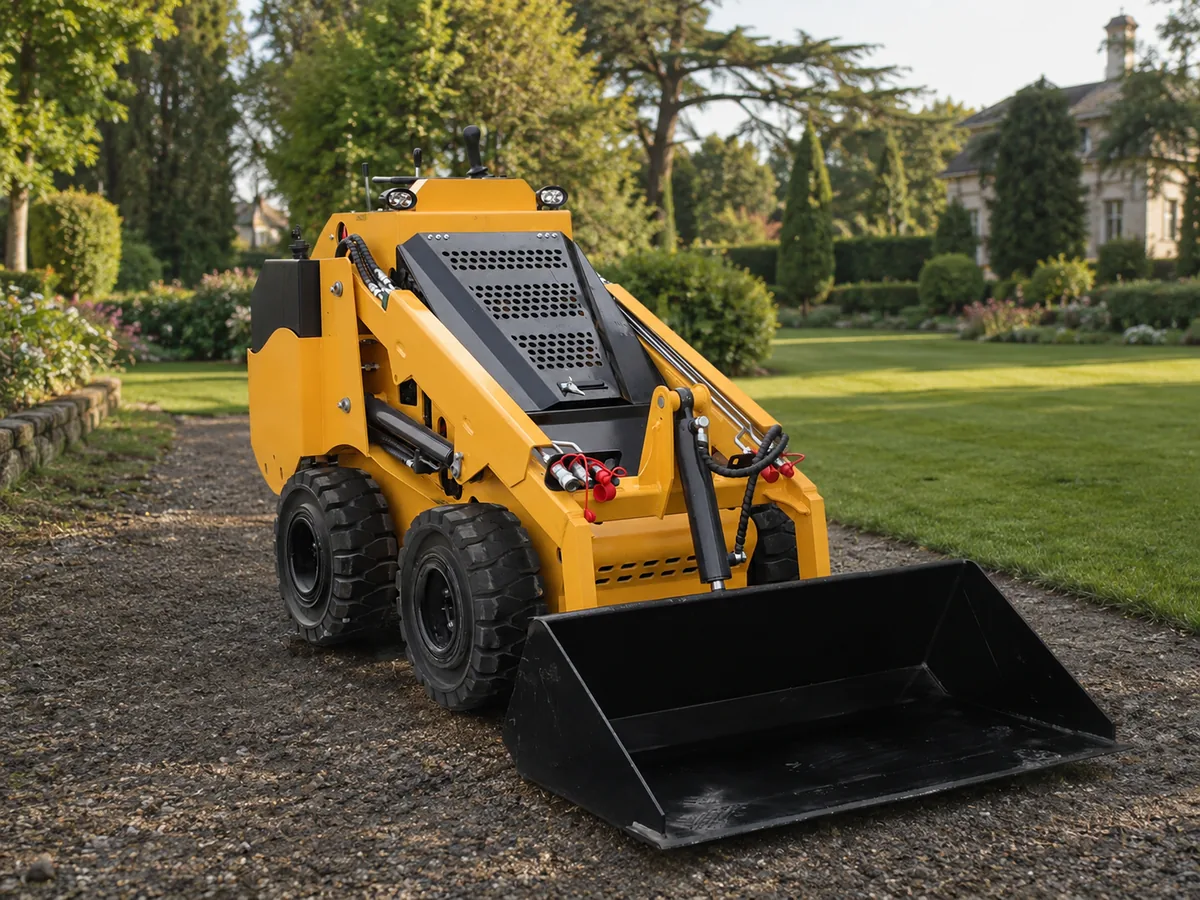

The S750 serves buyers who need a compact wheel loader for construction yards, farms, landscaping and material handling on stable surfaces.
Move loose material and clean compact jobsites on paved or compacted working surfaces.
Support loading, cleanup and attachment work on maintained farm lanes and firm livestock yards.
Handle soil, gravel and packaged material with a matched bucket or fork.
Offer a compact wheel loader for contractors working on firm yards and maintained sites.
Compare practical attachment packages for landscaping, drilling, trenching, mowing, cleaning and compaction. Final matching depends on the mounting interface and hydraulic requirements.
KORVA supports S750 color customization, functional configuration and OEM branding for overseas dealers, rental fleets and equipment distributors.

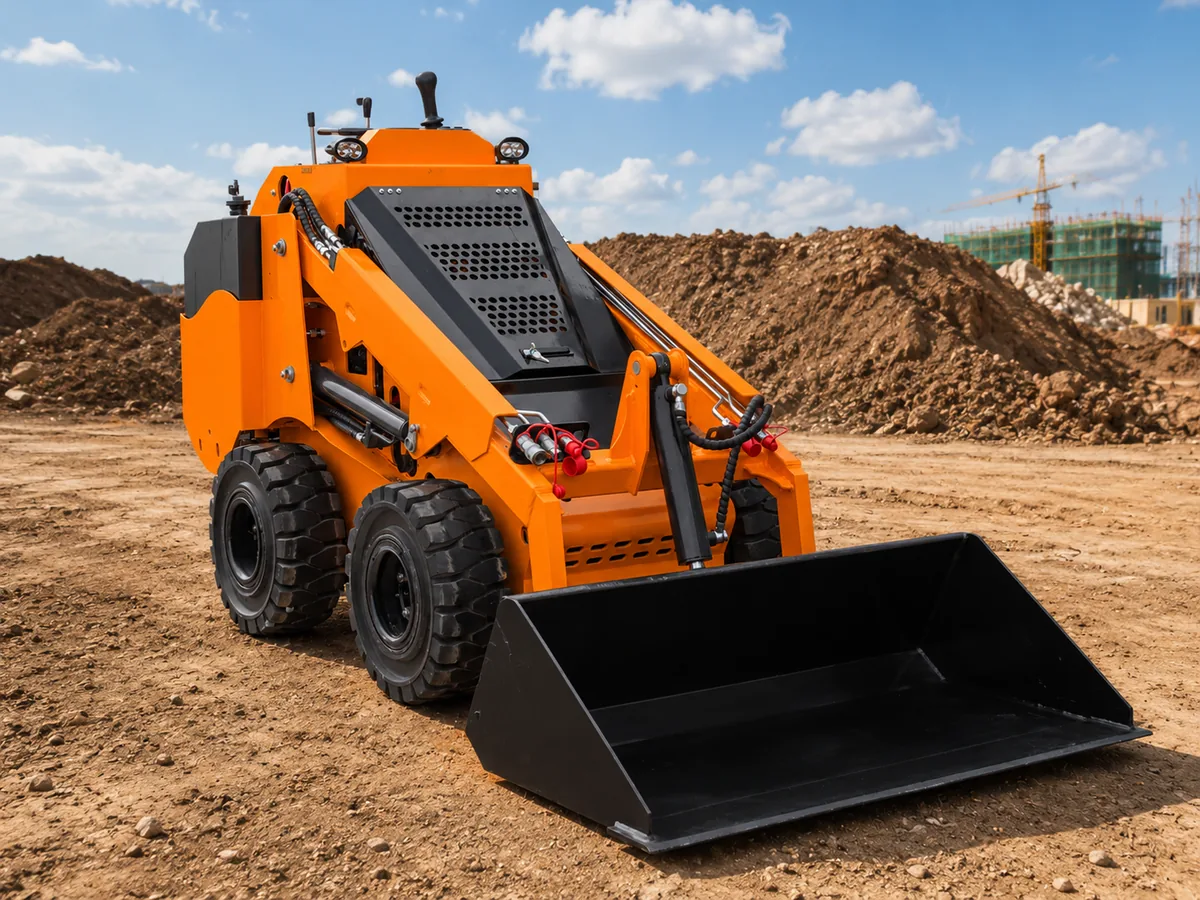

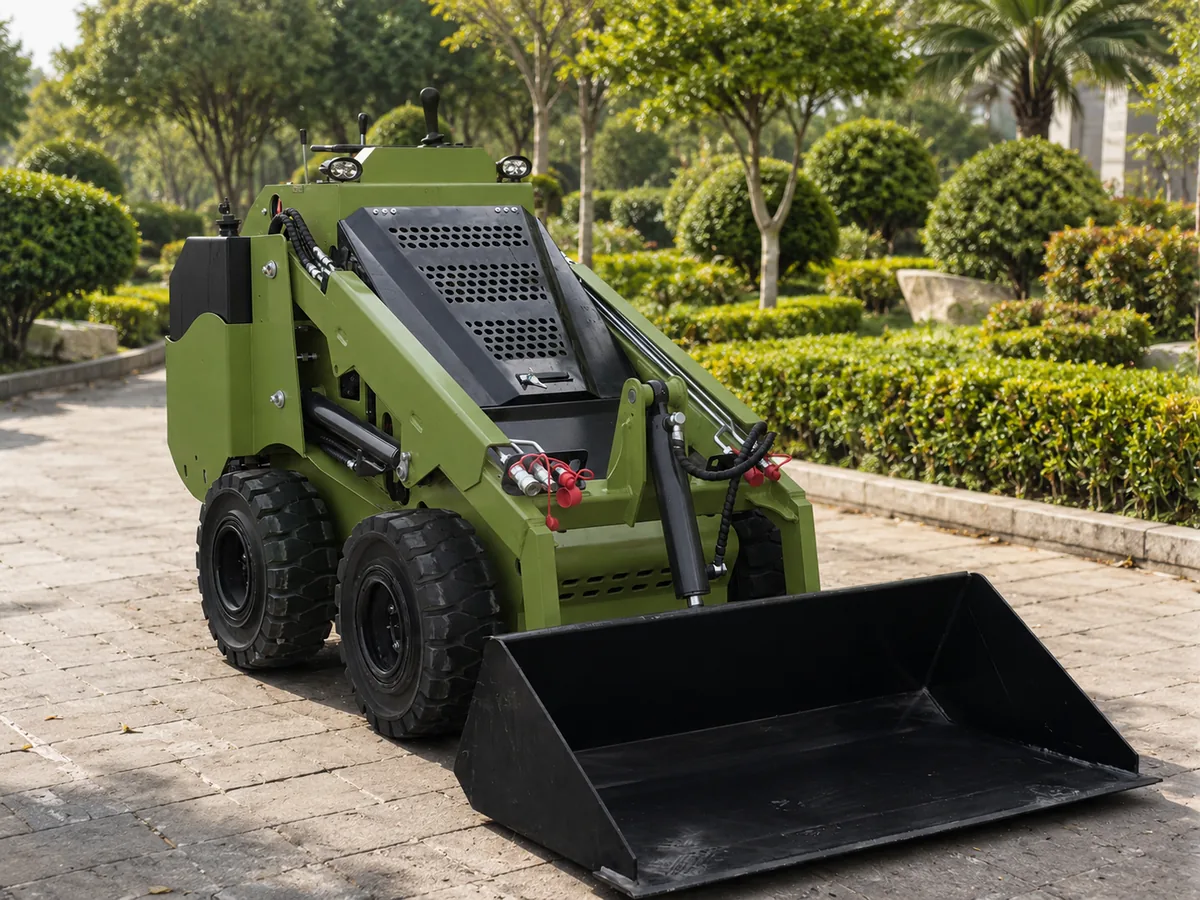

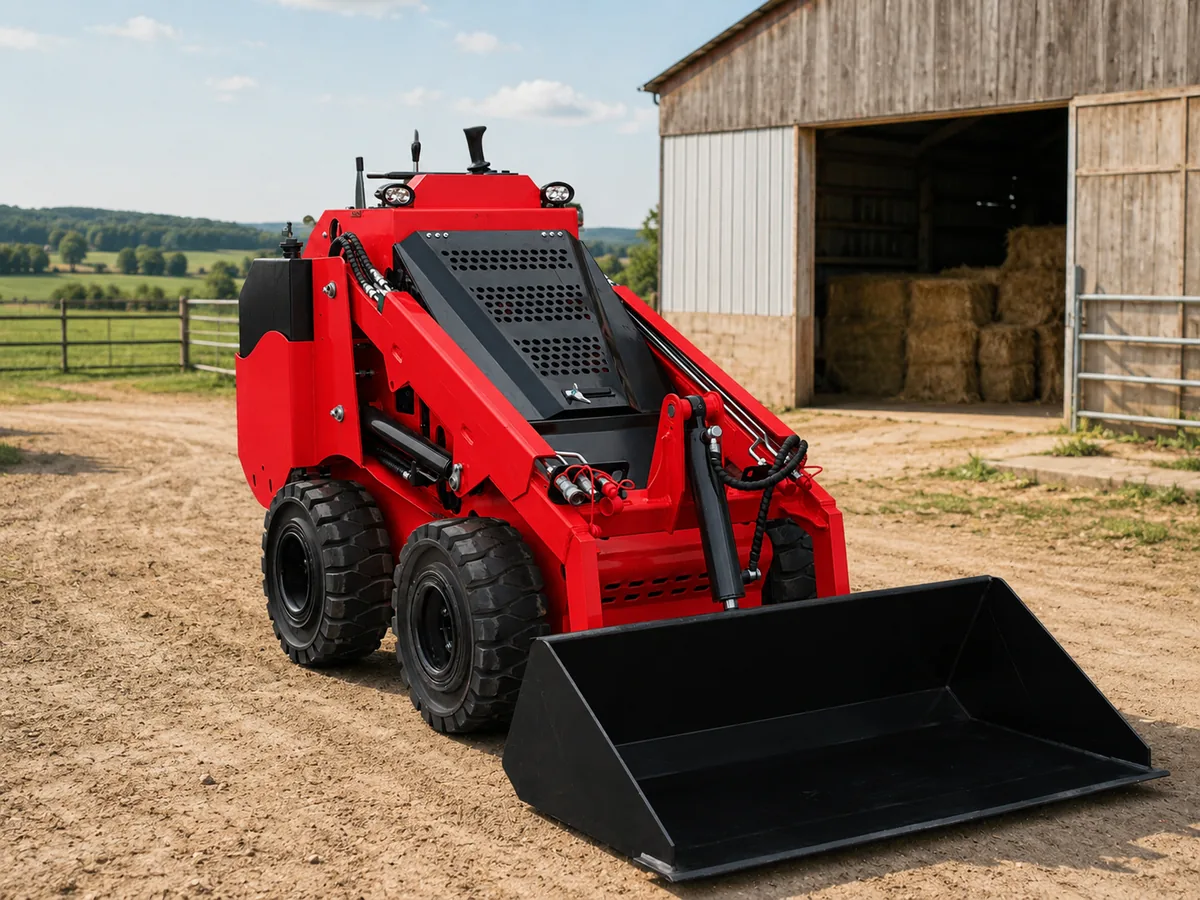

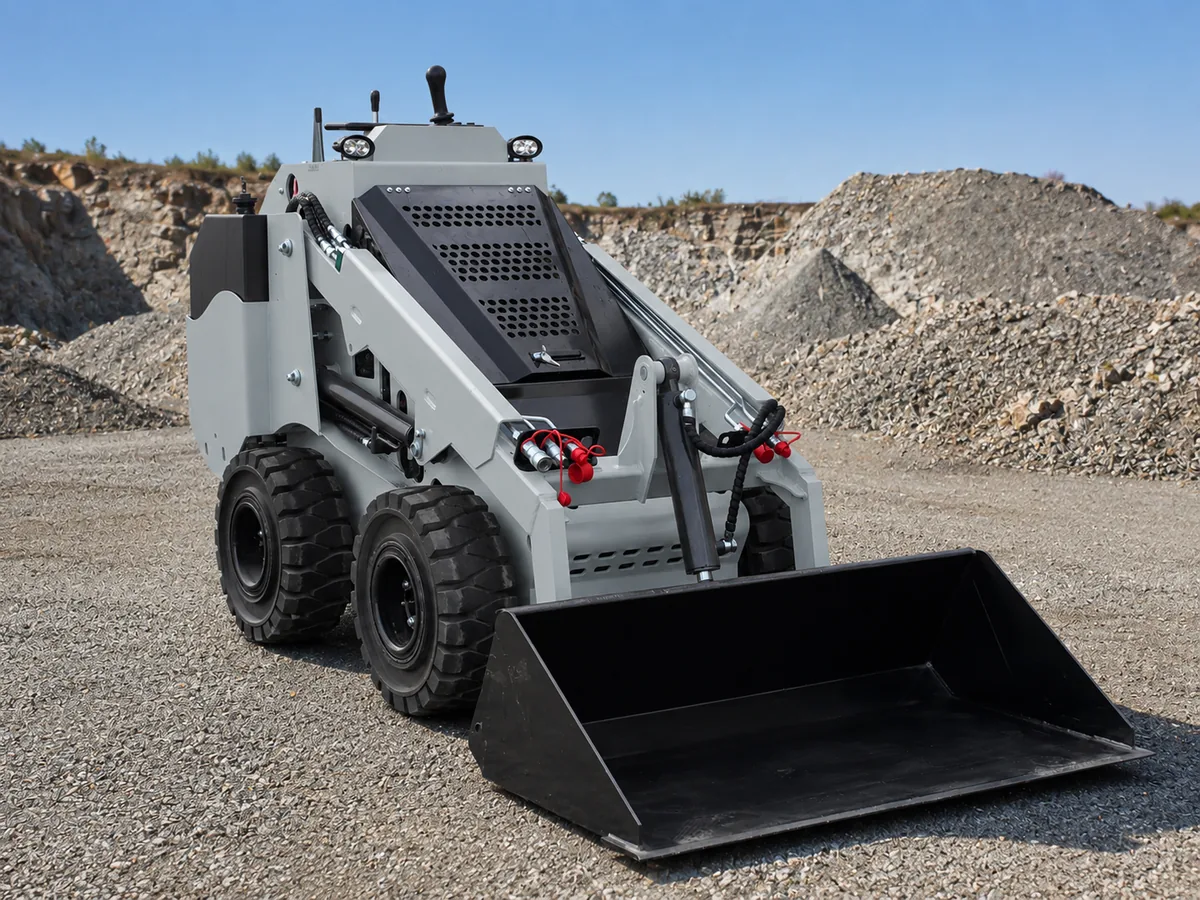

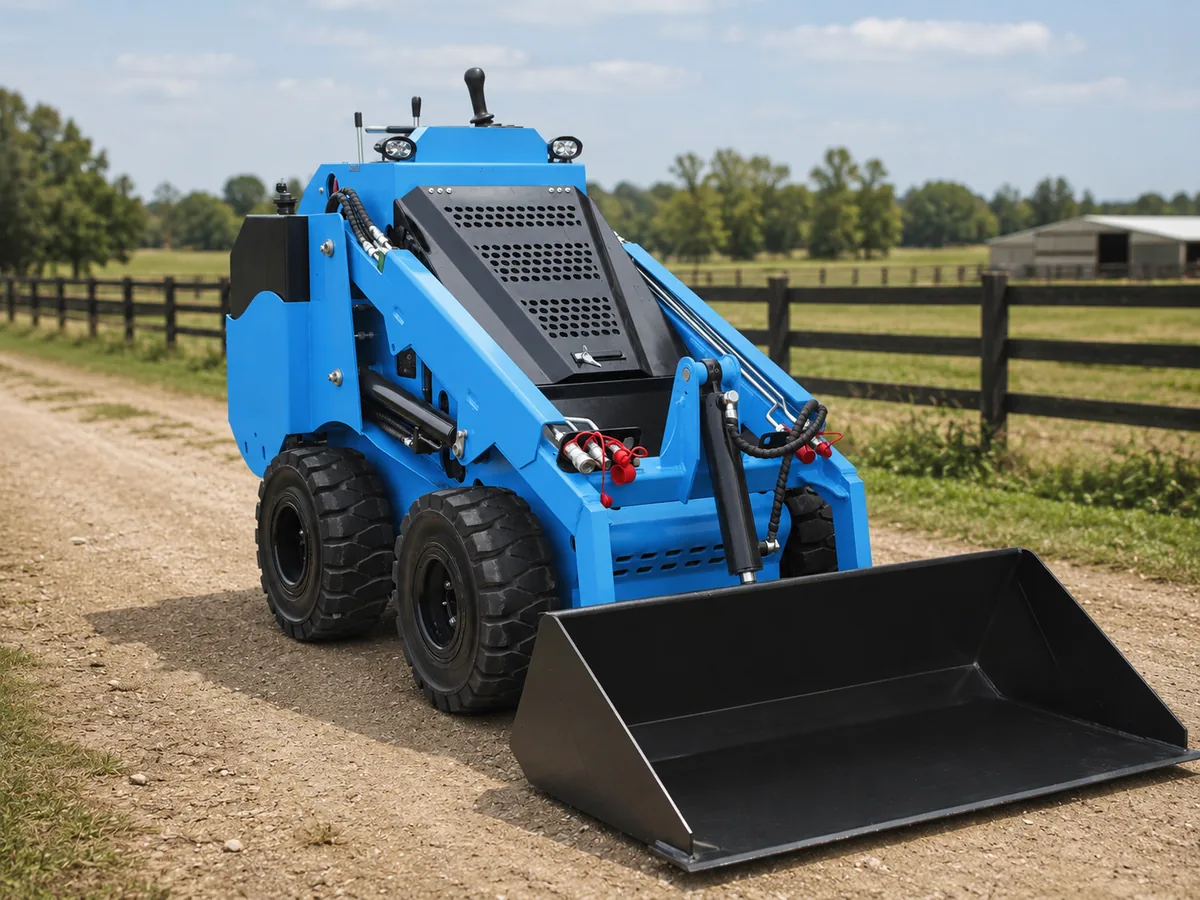

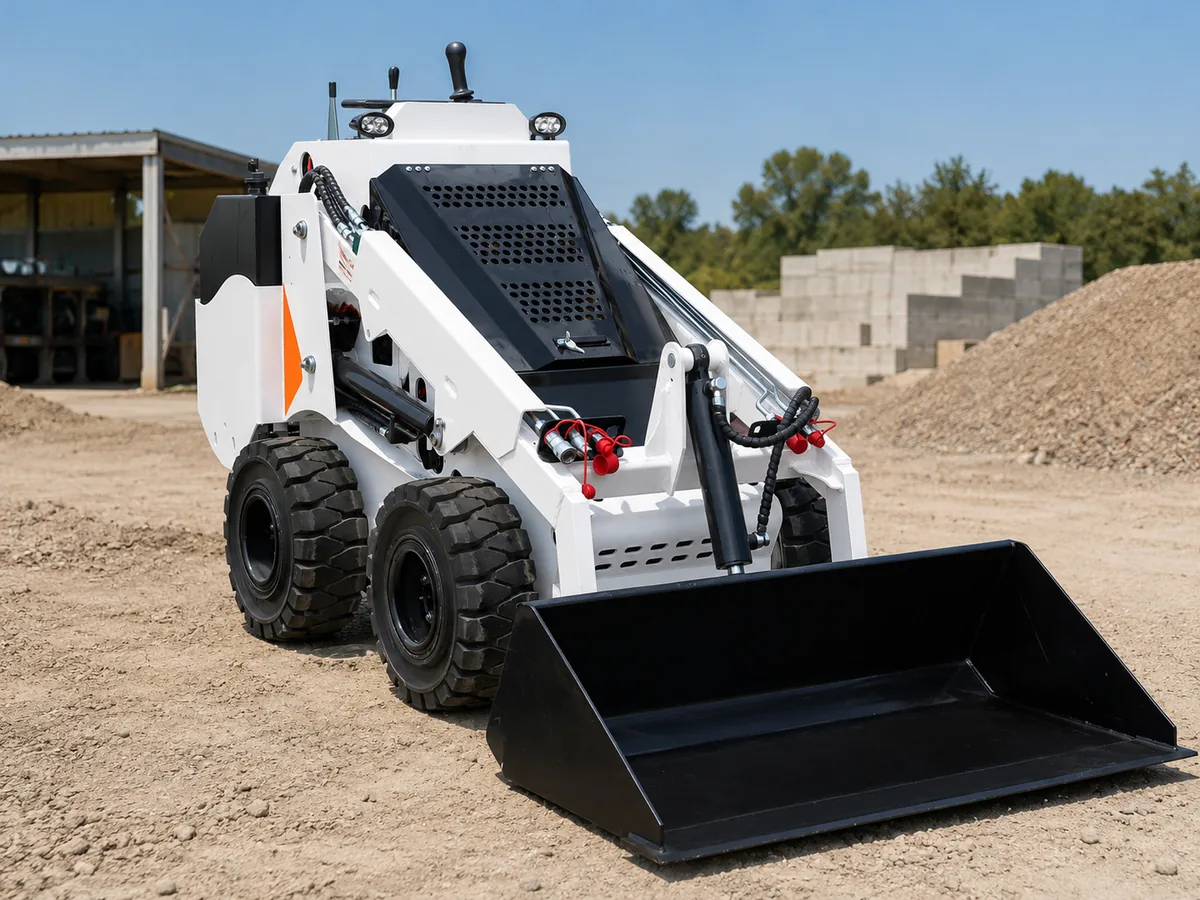

Choose a machine color that fits your fleet or dealer brand. Final paint color, finish and branding details are confirmed before production.
Choose the power package for your application and destination market. Final engine, battery and destination-market documents are confirmed before quotation.
Share your sales channel, target application and destination market so the machine appearance, functions and attachment package can be discussed before quotation.
Send your preferred color, power option, remote-control requirement, branding, attachments, quantity and destination. We will review the available S750 configuration and prepare a matched quotation.
Both models keep a compact working footprint, but the undercarriage changes how the machine behaves on different ground conditions.
Choose the S750 for construction yards, compacted soil and material handling where solid tires and wheel mobility are the priority.

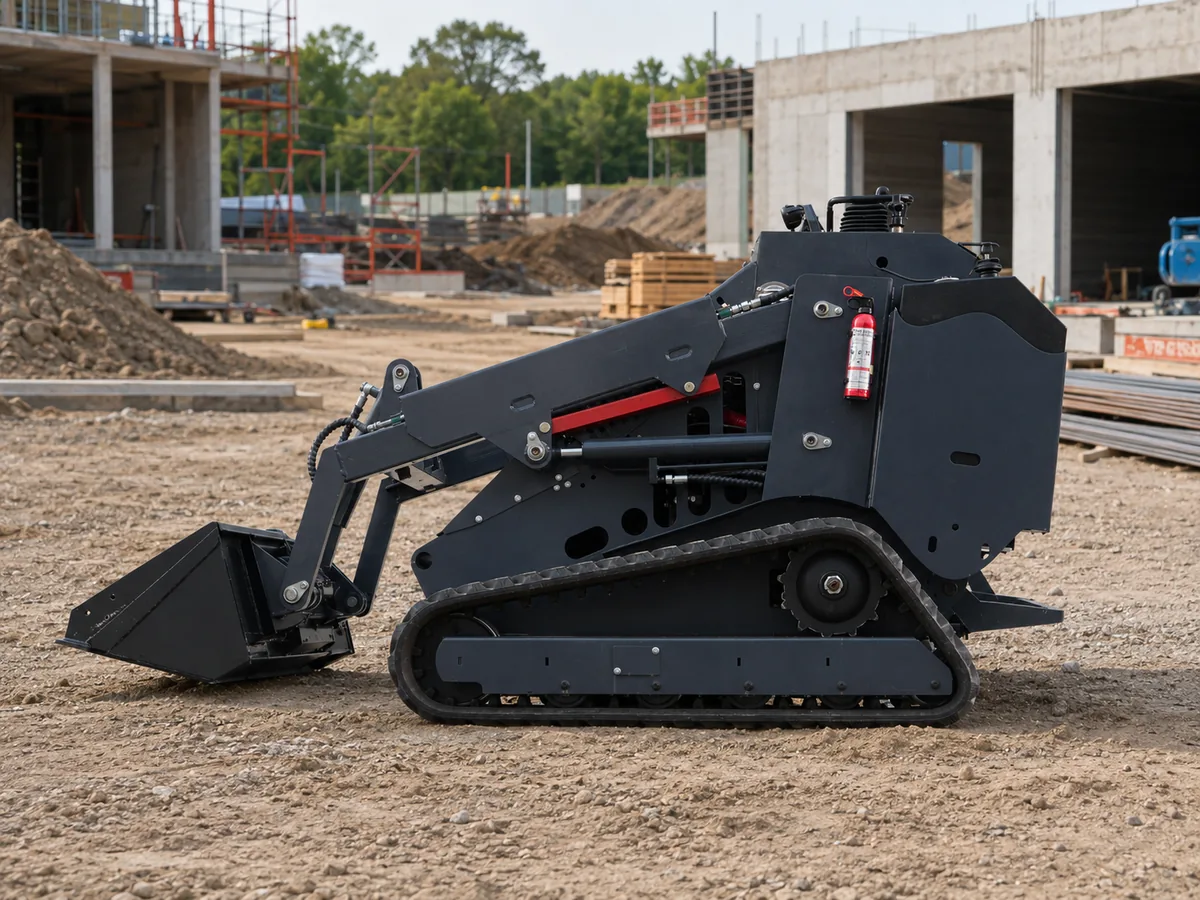

Choose the T750 when rubber-track traction and a longer ground contact area are priorities for soft soil, muddy farms or mixed construction sites.
| Buyer need | S750 mini skid steer loader | T750 mini skid steer loader |
|---|---|---|
| Chassis type | Wheel-driven compact loader | Tracked compact loader with rubber tracks |
| Best ground condition | Hard ground, compacted soil, paved yards | Muddy ground, soft soil, mixed terrain |
| Main buyer priority | Wheel mobility and simple movement on firm ground | Stable traction, better grip and soft-ground confidence |
| Typical application | Paved yards, compacted construction sites and material handling | Farm use, muddy sites, mixed-terrain construction |
| Best sales angle | Firm-ground wheel mobility | 180 mm rubber-track traction and longer ground contact |
Send a photo of the working ground, your attachment list and destination country. We will help you compare the S750 wheel model and T750 tracked model before quotation.
Compare S750 and T750See how compact loader components, assembly stations and finished machines support S750 OEM orders before requesting packing and overseas shipping details.

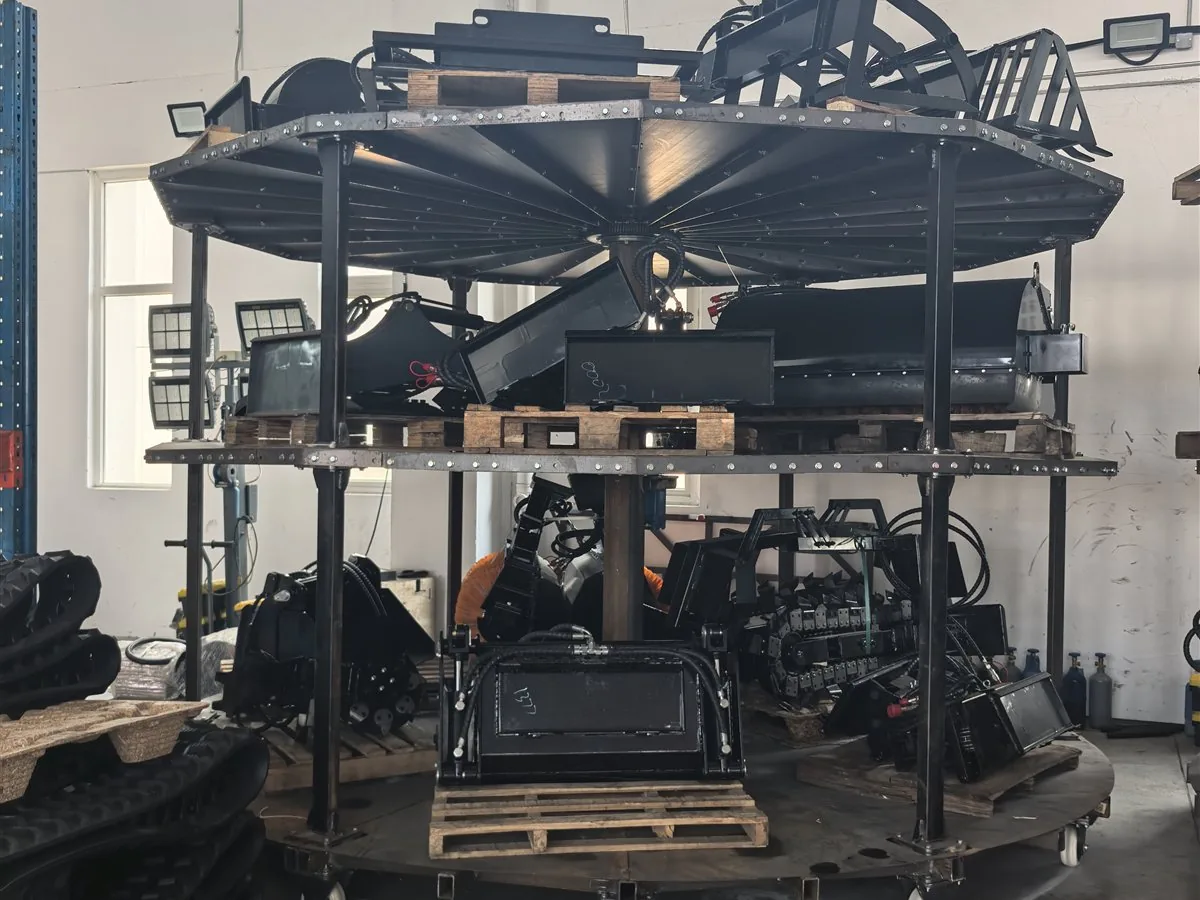

Loader frames, guards and structural components are organized before assembly. Overseas buyers can discuss machine color, decals and OEM presentation before production.

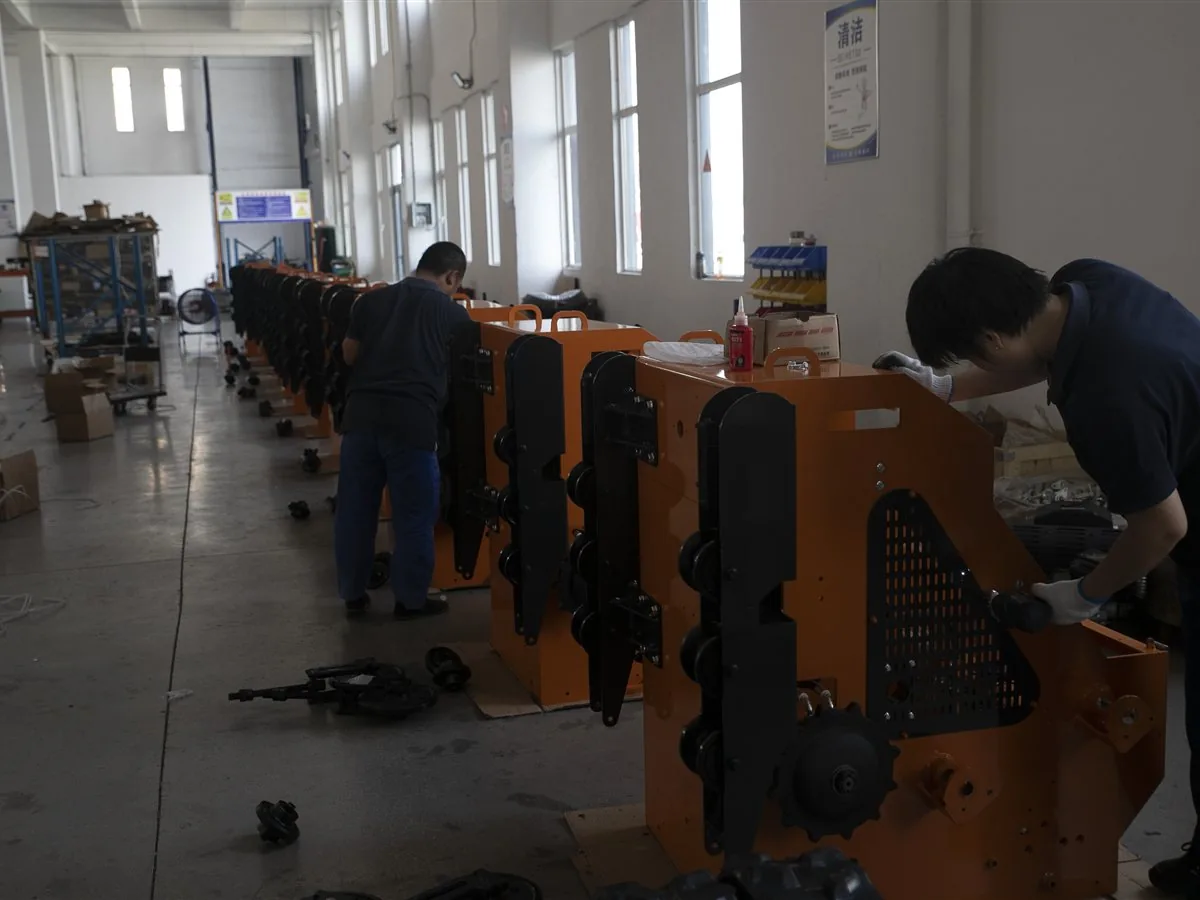

Hydraulic lines, controls and body components are fitted at the assembly station. Your S750 engine, color and attachment requirements are confirmed before production.

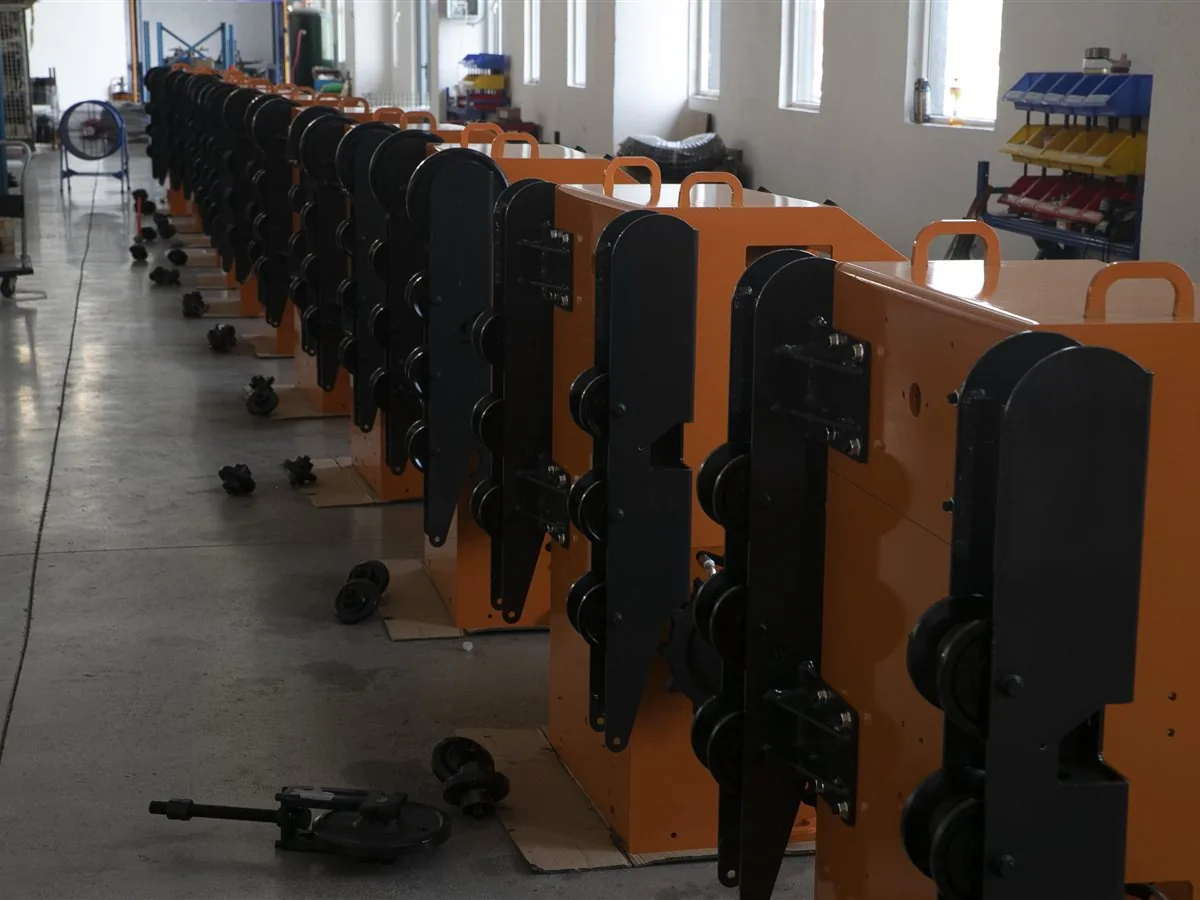

Multiple compact loaders move through the production process for configuration and completion. Dealer and rental-fleet requirements can be discussed by quantity and destination.

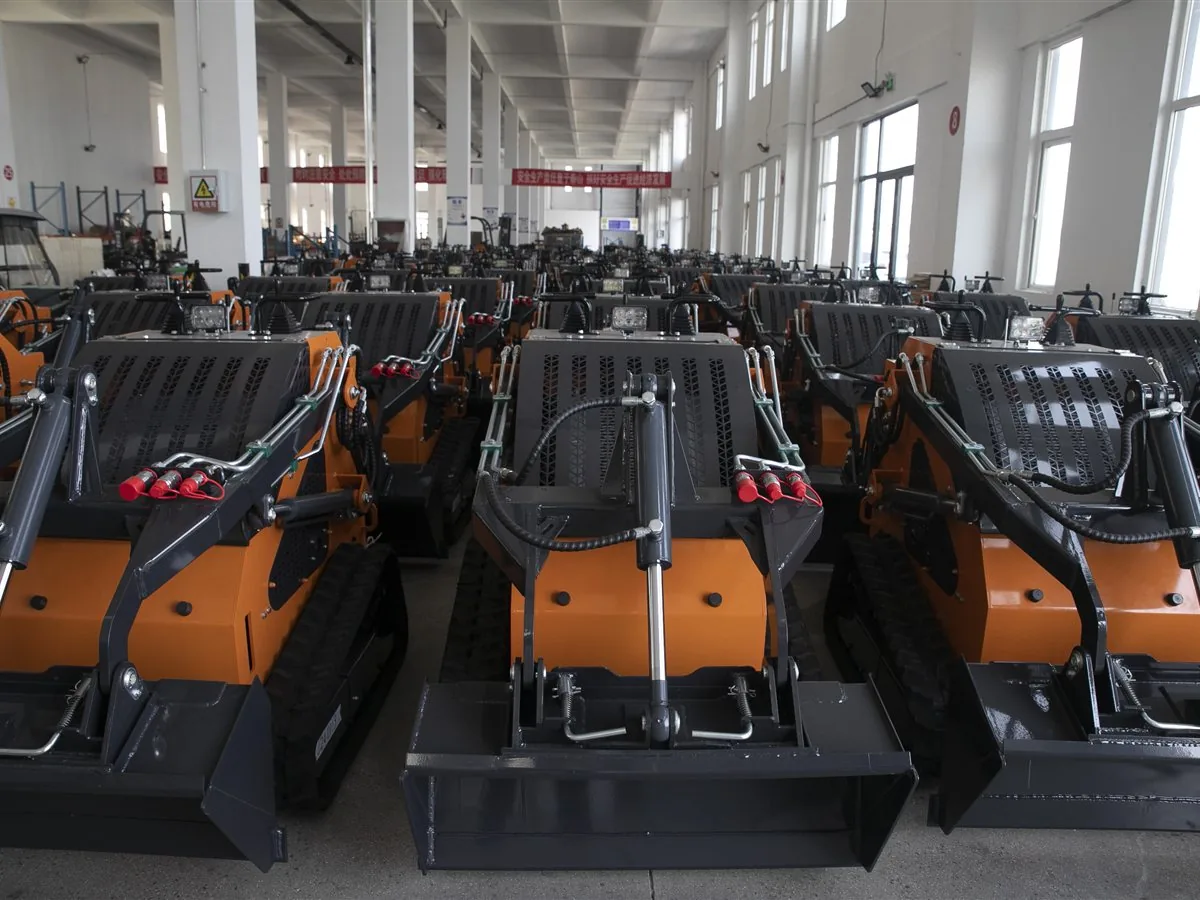

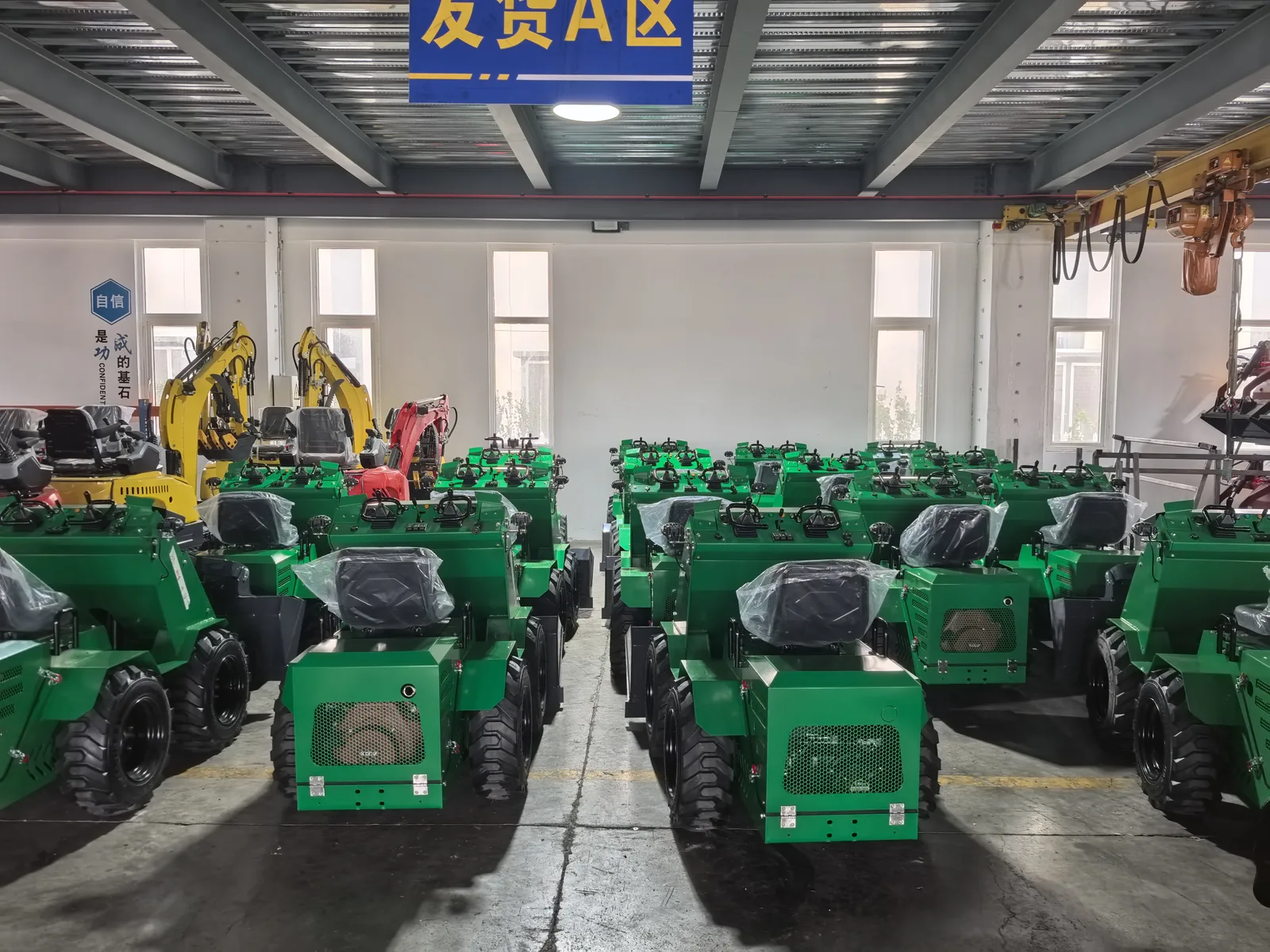

Finished loaders are staged before packing and shipment preparation. Ask for current packing, loading and container photos together with your shipping quotation.
Need current workshop, packing or container-loading photos for your order?
Request Production and Shipping PhotosShort answers for the first quotation step.
The S750 is suited to construction yards, paved areas, compacted soil, maintained farm lanes and material yards that benefit from wheel mobility.
The S750 is the wheel version with solid tires. Buyers needing rubber-track traction on softer ground can compare it with the T750 tracked model.
Confirmed options include YANMAR 3TNV80, KUBOTA D1105 and Laidong 385 diesel engines, plus a 14 kW 72V 200Ah lithium iron phosphate battery configuration.
Bucket, forks, auger, sweeper, trencher and other tools can be discussed after confirming the mounting interface and hydraulic requirements.
The confirmed package includes two piston pumps, one gear pump, hydraulic pilot operation and dual auxiliary outputs. Remote control and a bucket self-leveling valve are available options.
Send your destination, quantity, attachments, engine preference, tire requirement, hydraulic package and OEM requirements for a matched quotation.
KORVA supports S750 hydraulic-pilot wheel loader orders with wooden packing photos, container loading proof and export delivery preparation.

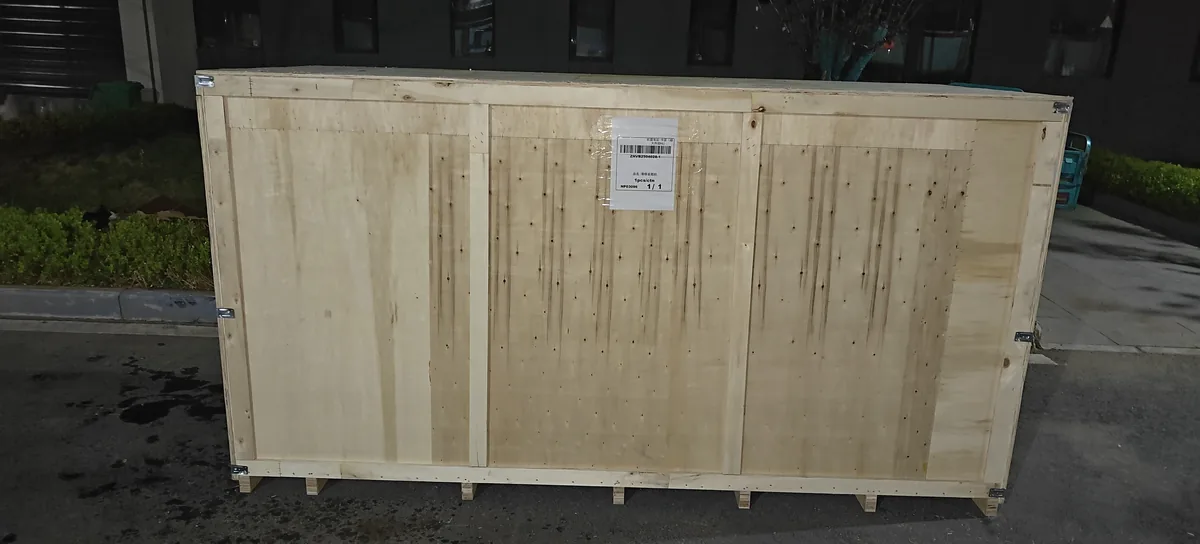

Each skid steer loader is securely packed to help protect key components during sea transportation.

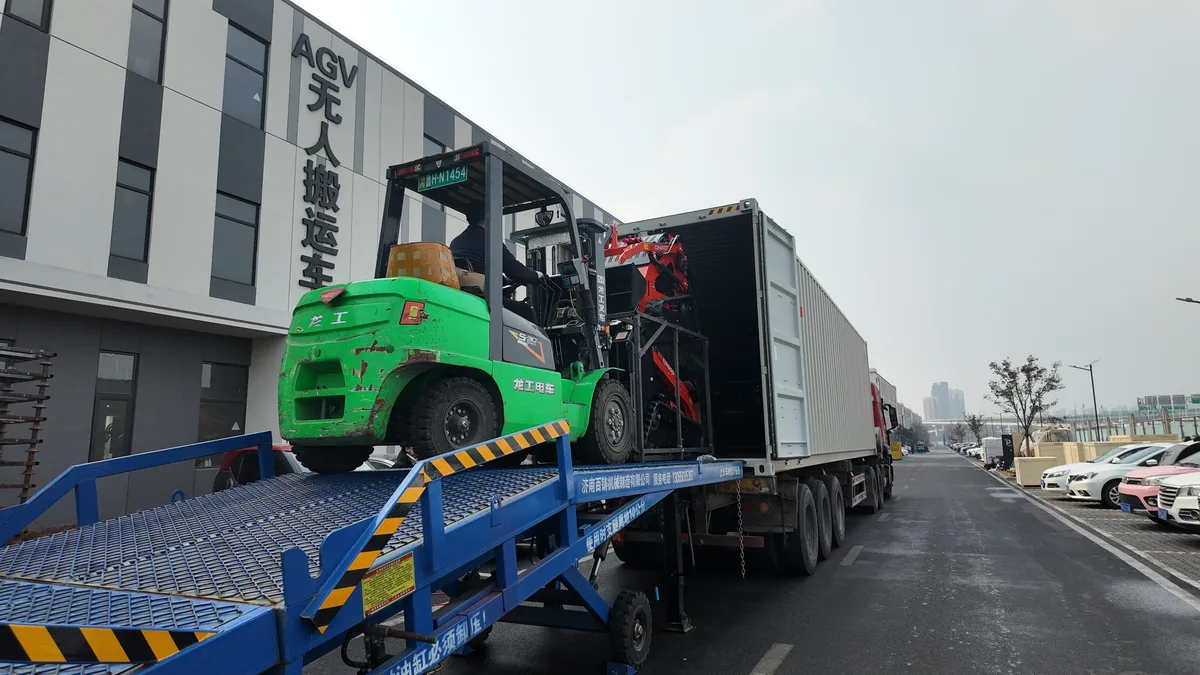

Professional loading helps improve container space use and supports safer overseas shipment.
Packed machines are prepared for shipment with organized loading arrangements for overseas buyers.
