S490 Ride-On Mini Skid Steer Loader

A 1200 kg ride-on wheel loader with 250 kg rated load for construction yards, material handling and frequently changing work in narrow areas.

250 kg rated load 4.5 kN breakout force 0.12 m³ bucket Ride-on operation Solid tires optional Three-pump hydraulics
Get Price on WhatsApp View Specifications
Explore the S490
Product video

See the S490 in operation

Looking for a S490 ride-on mini skid steer loader video? The product demonstration will show seated operation, wheel travel, steering, bucket lifting and attachment work.

Play

S490 working video coming soon

Ask us for current operation videos while the full YouTube presentation is being prepared.

Product Video Coming Soon
Ride-on loader overview

Compact seated loader for construction and property work

The S490 combines an ergonomic operator seat, published loading performance and a wheel footprint for compact working areas.

Why this model works

The S490 is positioned for construction loading, property work, dock handling, yard cleanup and rental fleets that need a compact ride-on carrier.

Its wheel chassis, 360-degree steering and seated control position support frequent task changes in narrow or uneven work areas.

  • 250 kg rated load and 350 kg maximum load
  • 4.5 kN breakout force for loading tasks
  • Ergonomic ride-on operator seat
  • Material handling with buckets or forks
  • Wheel mobility for firm yards and compacted surfaces
Operating weight1200 kg
Bucket capacity0.12 m³
Travel speed0 - 6 km/h
Climbing ability25 degrees
Rated load250 kg
Maximum load350 kg
Breakout force4.5 kN
Wheelbase925 mm
Use these published specifications for initial model selection. Tire, power option, attachments and export documents will be confirmed before quotation.
Specifications and quick facts

S490 technical specifications

Review the main performance, working range and machine dimensions before choosing attachments or requesting a shipping quote.

Model and Basic Performance
ModelS490
Operating weight1200 kg
Bucket capacity0.12 m³
Climbing ability25 degree
Maximum breakout force4.5 kN
Rated load250 kg
Maximum load350 kg
Travel speed0-6 km/h
Three-item working cycle9 s
Loader Dimensions and Working Range
Bucket width1050 mm
Maximum loading height1740 mm
Maximum dumping height1429 mm
Maximum operating height2574 mm
Height to bucket pin1933 mm
Bucket dump angle at maximum height63°
Minimum machine height1300 mm
Tail length500 mm
Ground clearance180 mm
Dumping distance595 mm
Machine Dimensions
Overall dimensions2644 × 1089 × 1264 mm
Length including bucket2700 mm
Length excluding bucket2300 mm
Wheelbase925 mm
Tire modelPneumatic tires; solid tires optional
Hydraulic, Engine and Export Configuration
Working system pressure17–21 bar
Optional hydraulic packageThree pumps, three valves and dual hydraulic outputs
RATO engine optionR740
KOOP engine option292
Briggs & Stratton engine optionVanguard 23
YANMAR engine option3TNV80F
KUBOTA engine optionD1105
Fuel tank capacity10 L
Applications

S490 applications for compact sites and frequent task changes

The S490 serves buyers who need a compact ride-on wheel loader for construction, dock handling, yards, livestock areas and property work.

Firm construction yards

Move loose material and clean compact jobsites where wheel mobility is useful.

Livestock areas and property work

Support loading, cleanup and attachment work on firm farm lanes and maintained surfaces.

Material yards

Handle soil, gravel and packaged material with a matched bucket or fork.

Rental and dealer fleets

Offer a wheel compact loader for contractors working across mixed ground conditions.

Ride-on operationErgonomic seat for repeated loading and attachment work.
Wheel mobility925 mm wheelbase and Pneumatic tires; solid tires optional tires for compact firm-ground work.
Attachment flexibilityConfigure hydraulic tools for loading, cleanup and site work.
Attachments

Match the S490 with attachments for your work

Compare practical attachment packages for landscaping, drilling, trenching, mowing, cleaning and compaction. Final matching depends on the mounting interface and hydraulic requirements.

Ask Attachment Options Open Attachment Catalog
Manufacturer, OEM and price

S490 manufacturer, customization and price options

KORVA supports S490 color customization, functional configuration and OEM branding for overseas dealers, rental fleets and equipment distributors.

Custom color examples for S490 orders

Choose a machine color that fits your fleet or dealer brand. Final paint color, finish and branding details are confirmed before production.

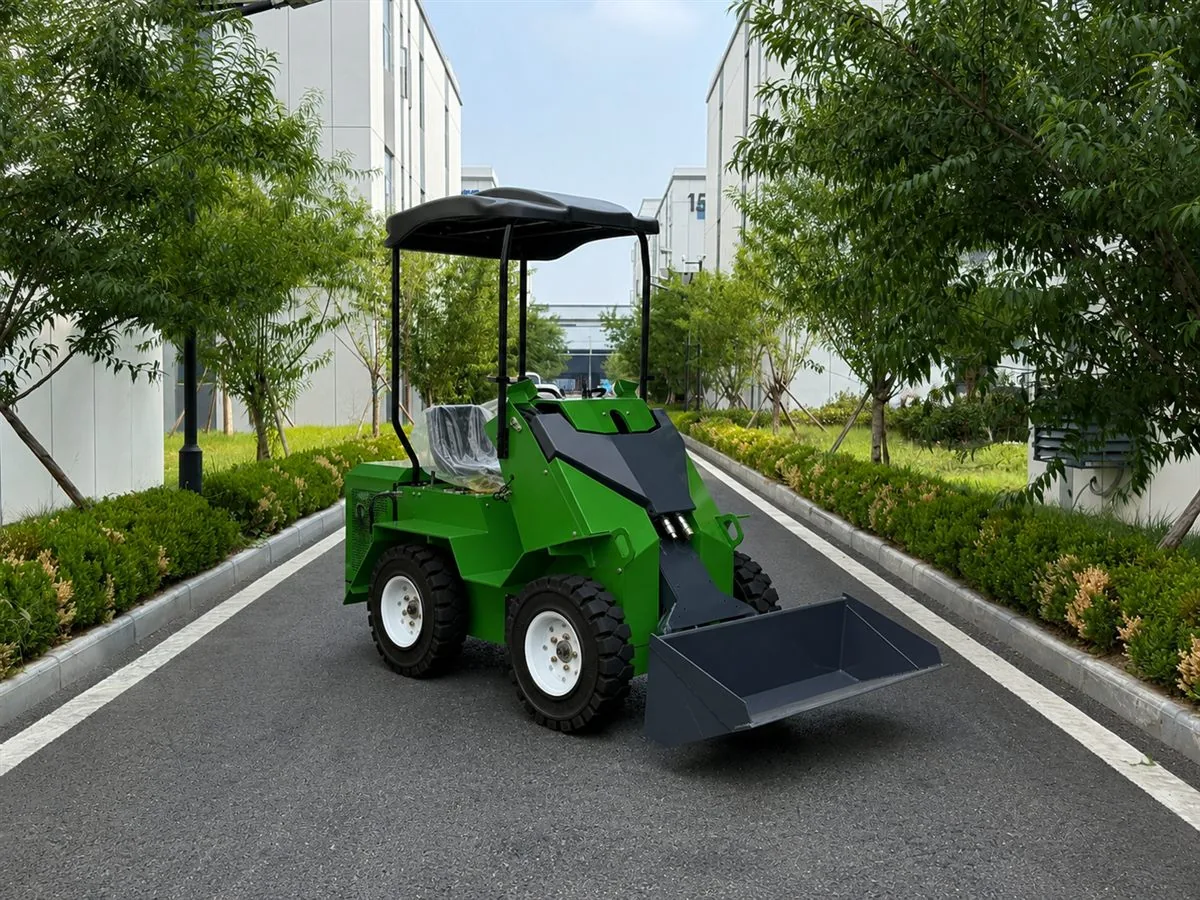

Green customized KORVA S490 ride-on wheel mini skid steer loader for farm material handling
Ride-On Loader for Farm Material Handling

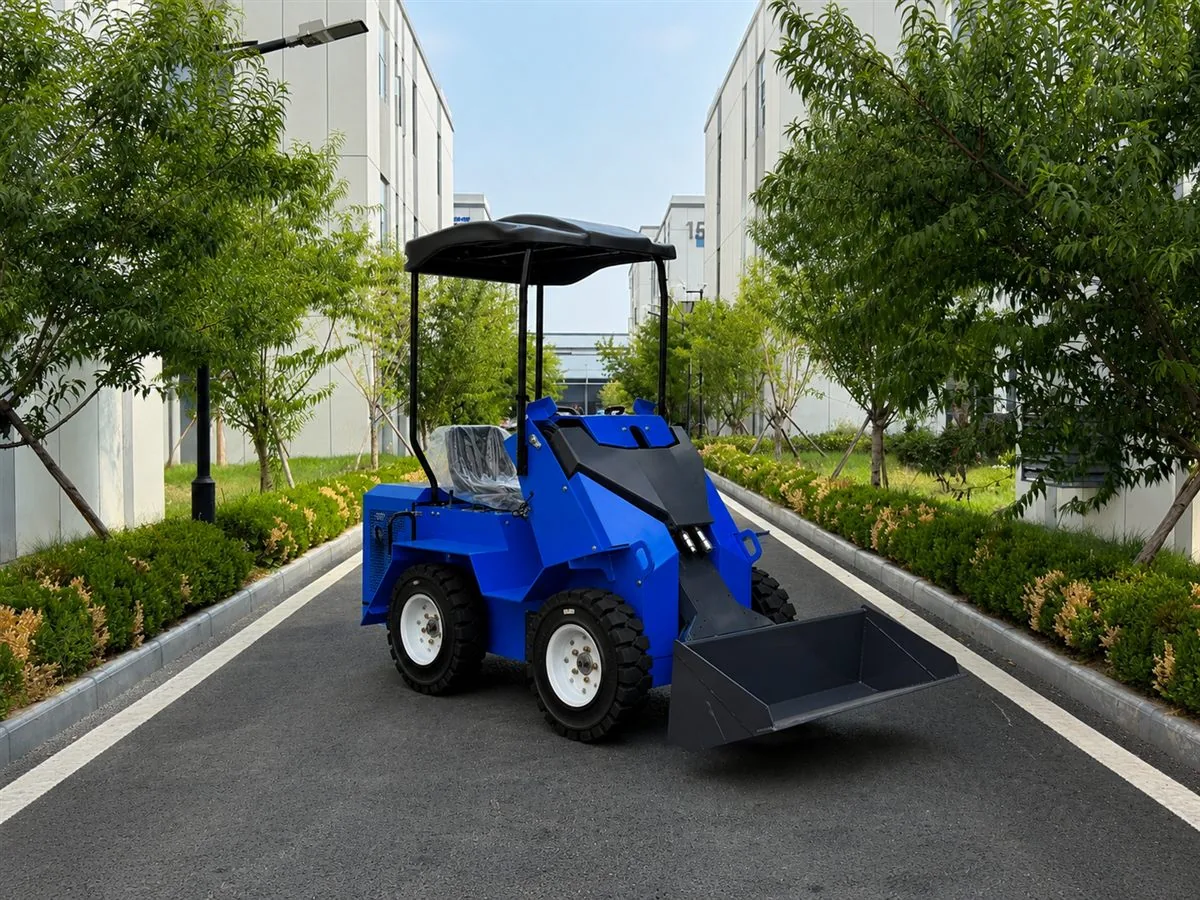

Blue customized KORVA S490 ride-on wheel mini skid steer loader for mixed construction sites
Ride-On Loader for Mixed Construction Sites

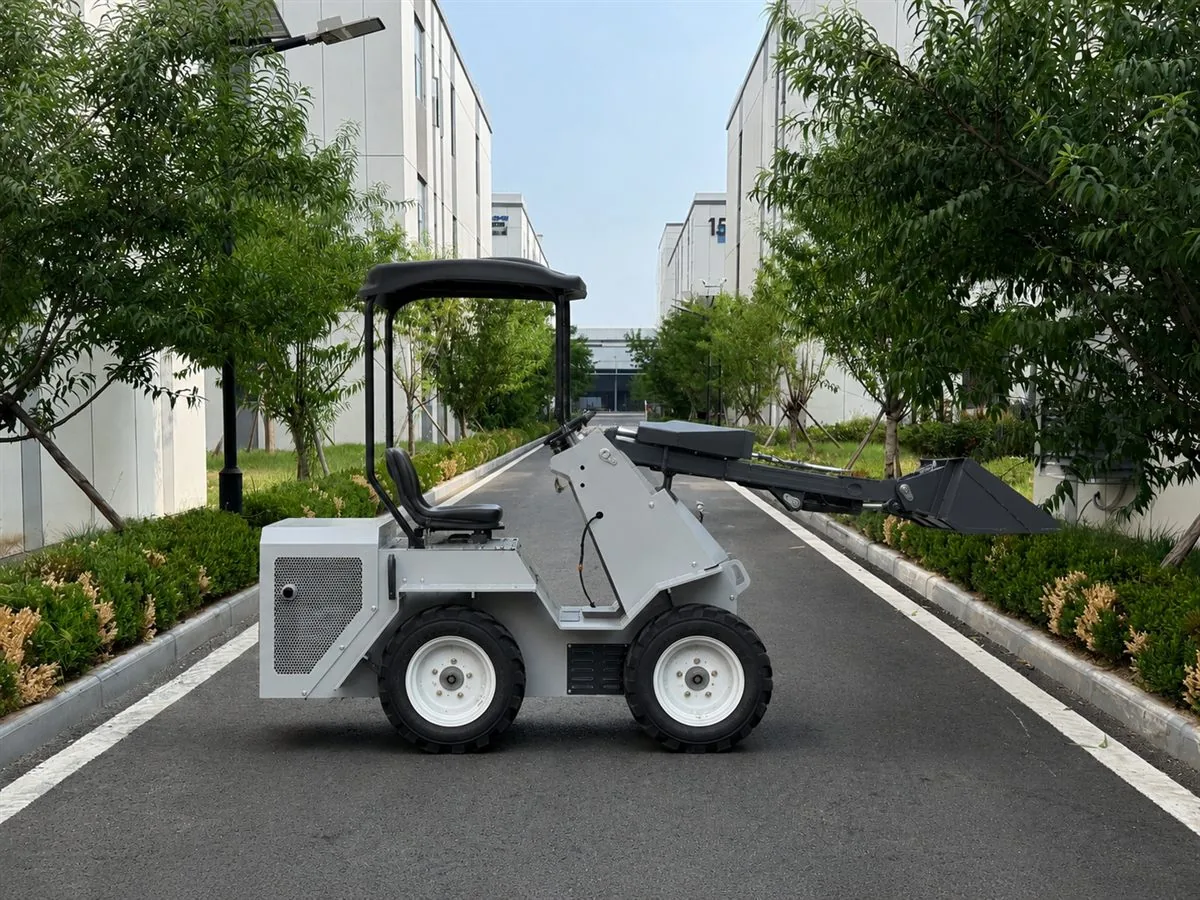

Gray customized KORVA S490 ride-on wheel mini skid steer loader for dealer fleets
OEM Ride-On Loader for Dealer Fleets

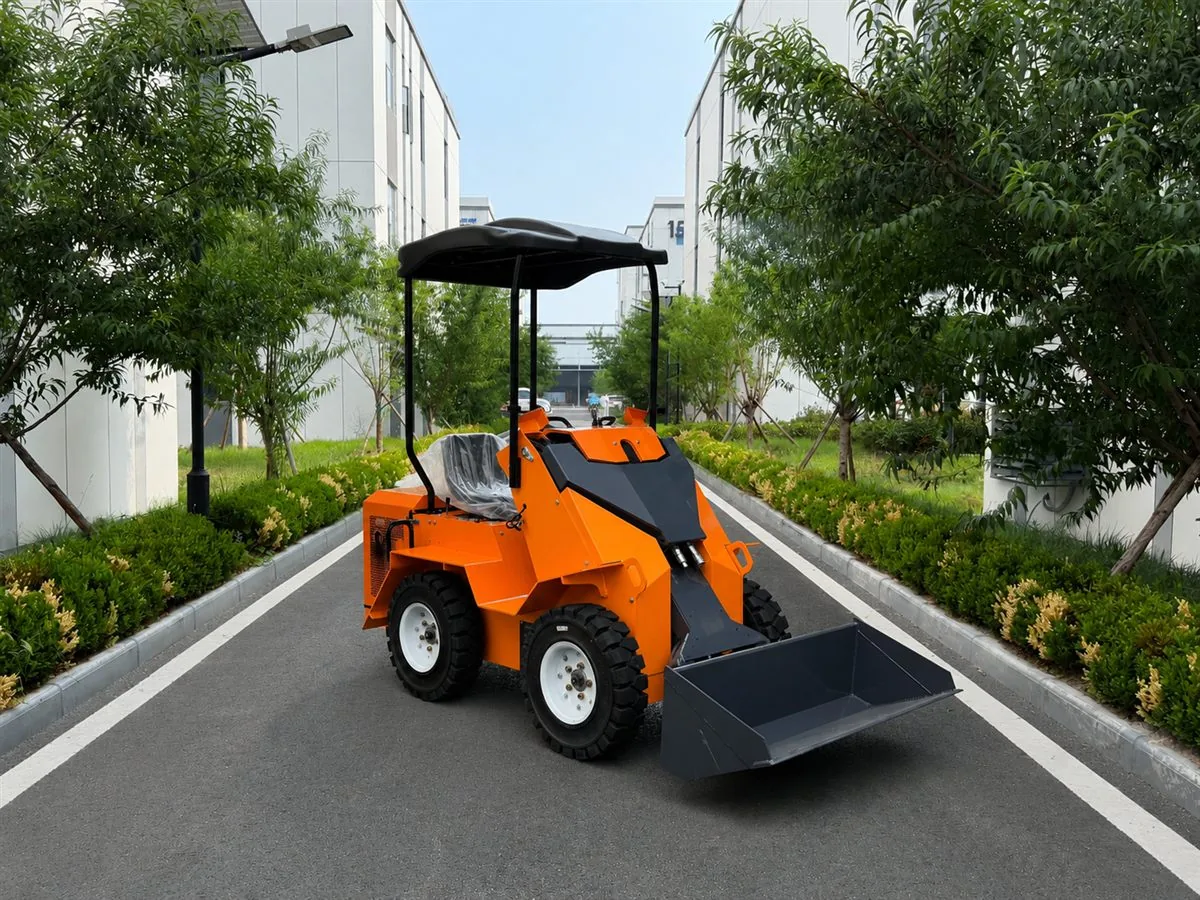

Orange customized KORVA S490 ride-on wheel mini skid steer loader for construction loading
Ride-On Loader for Construction Loading

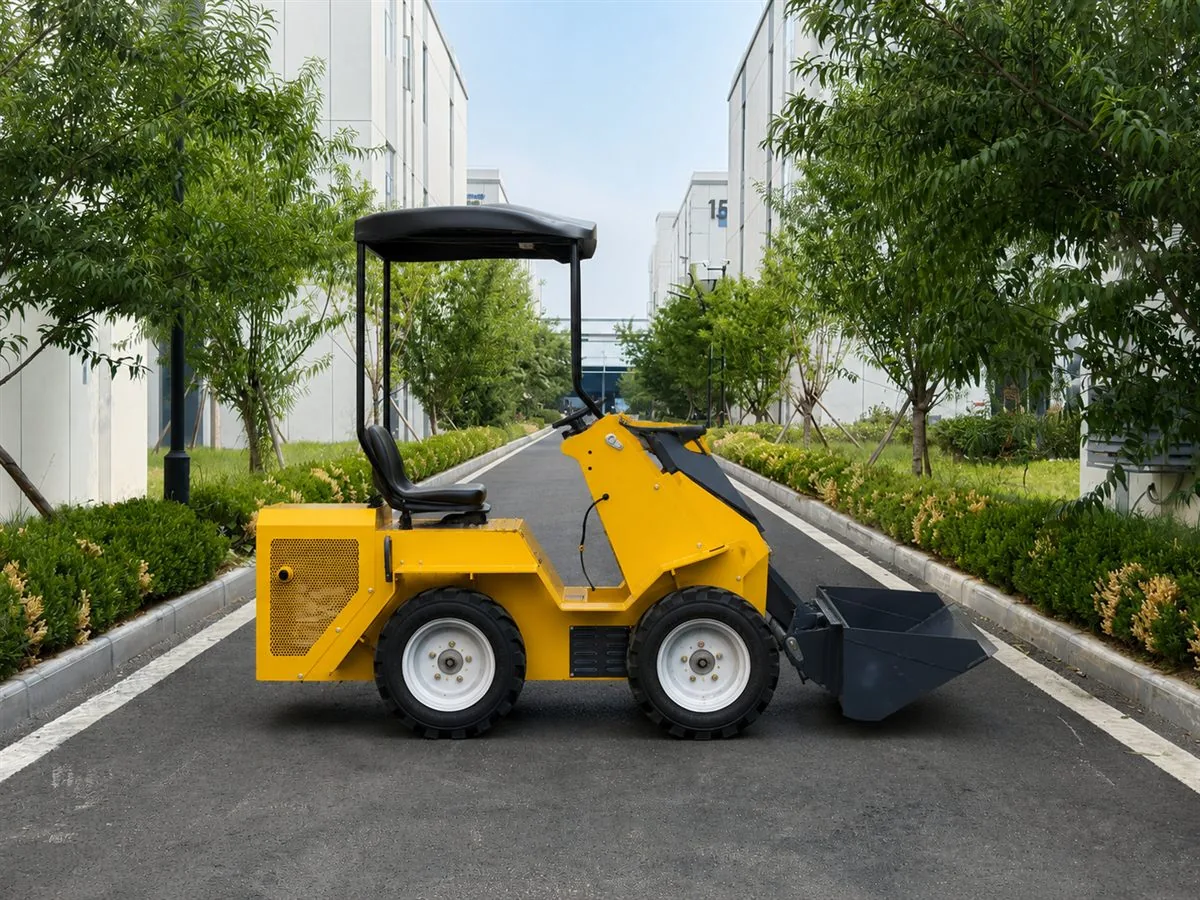

Yellow customized KORVA S490 ride-on wheel mini skid steer loader for rental business
Ride-On Mini Loader for Rental Business
White customized KORVA S490 ride-on wheel mini skid steer loader for OEM branding
OEM Ride-On Loader for Private Label Orders

Build a configuration for your market

Share your sales channel, target application and destination market so the machine appearance, functions and attachment package can be discussed before quotation.

  • Custom machine colors and exterior finish
  • OEM logo, decals and private-label presentation
  • RATO, KOOP, Briggs & Stratton, YANMAR or KUBOTA engine options
  • Wheel ride-on chassis
  • Matched attachment packages for the required application

OEM support for dealers and rental fleets

Send your preferred color, engine option, branding requirements, attachments, quantity and destination. We will review the available S490 customization options and prepare a matched quotation.

Ask OEM Options Email OEM Request
Model comparison

S490 vs T490 ride-on mini skid steer loader comparison

Both models keep a compact working footprint, but the undercarriage changes how the machine behaves on different ground conditions.

Red KORVA S490 wheel ride-on mini skid steer loader comparison view

S490 wheel model

Choose the S490 when wheel mobility on firm construction yards and compacted surfaces is the priority. Confirm its final specification and tire option before quotation.

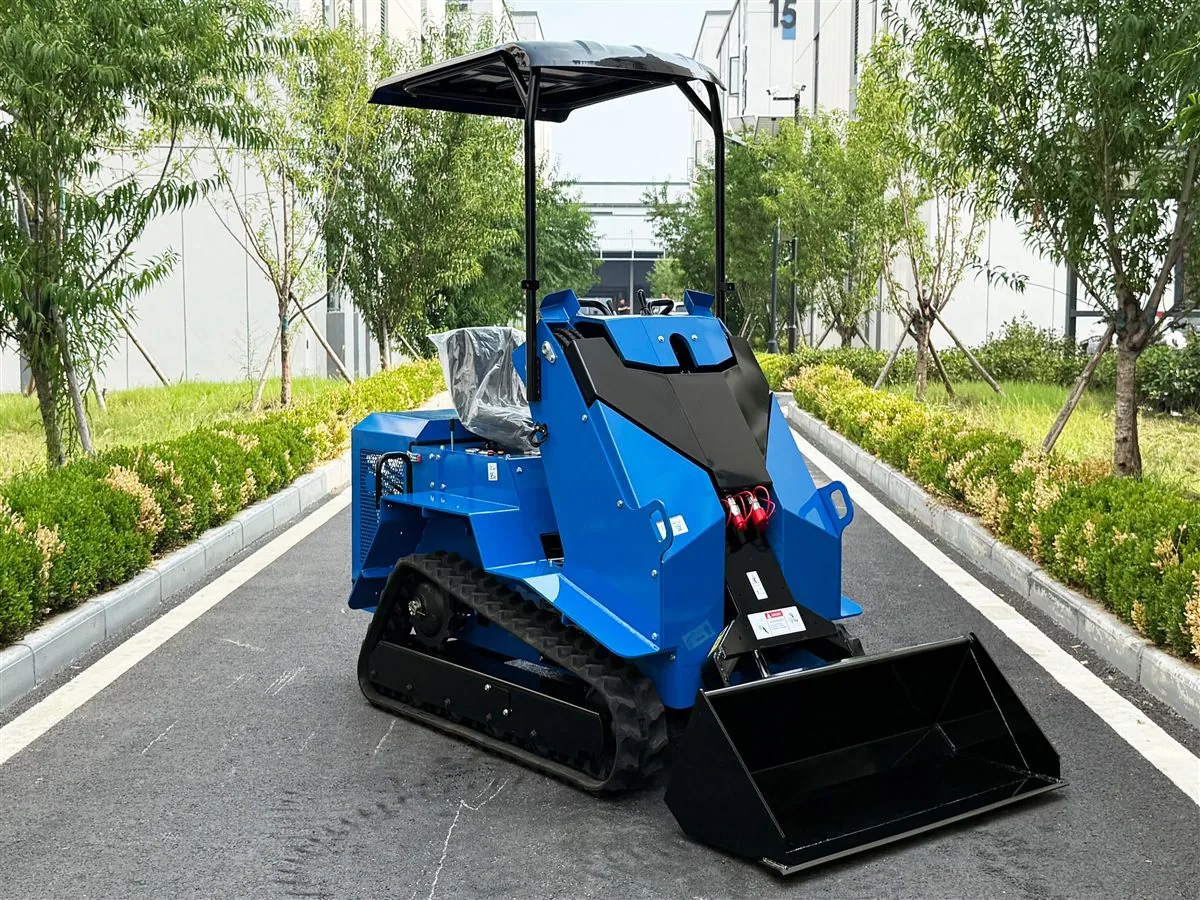

Blue KORVA T490 tracked ride-on mini skid steer loader comparison view

T490 tracked model

Choose the T490 when rubber-track traction and a longer ground contact area are priorities for soft soil or mixed construction sites.

Buyer need S490 mini skid steer loader T490 mini skid steer loader
Chassis type Ride-on wheel loader Ride-on tracked loader with rubber tracks
Best ground condition Hard ground, compacted soil, paved yards Muddy ground, soft soil, mixed terrain
Main buyer priority Wheel mobility and movement on firm ground Stable traction, better grip and soft-ground confidence
Typical application Paved yards, compacted construction sites and material handling Farm use, muddy sites, mixed-terrain construction
Best sales angle Firm-ground wheel mobility Rubber-track traction and longer ground contact

Not sure which chassis fits your site?

Send a photo of the working ground, your attachment list and destination country. We will help you compare the S490 wheel model and T490 tracked model before quotation.

Compare S490 and T490
Workshop and assembly

Mini skid steer loader workshop and production

See how compact loader components, assembly stations and finished machines support S490 OEM orders before requesting packing and overseas shipping details.

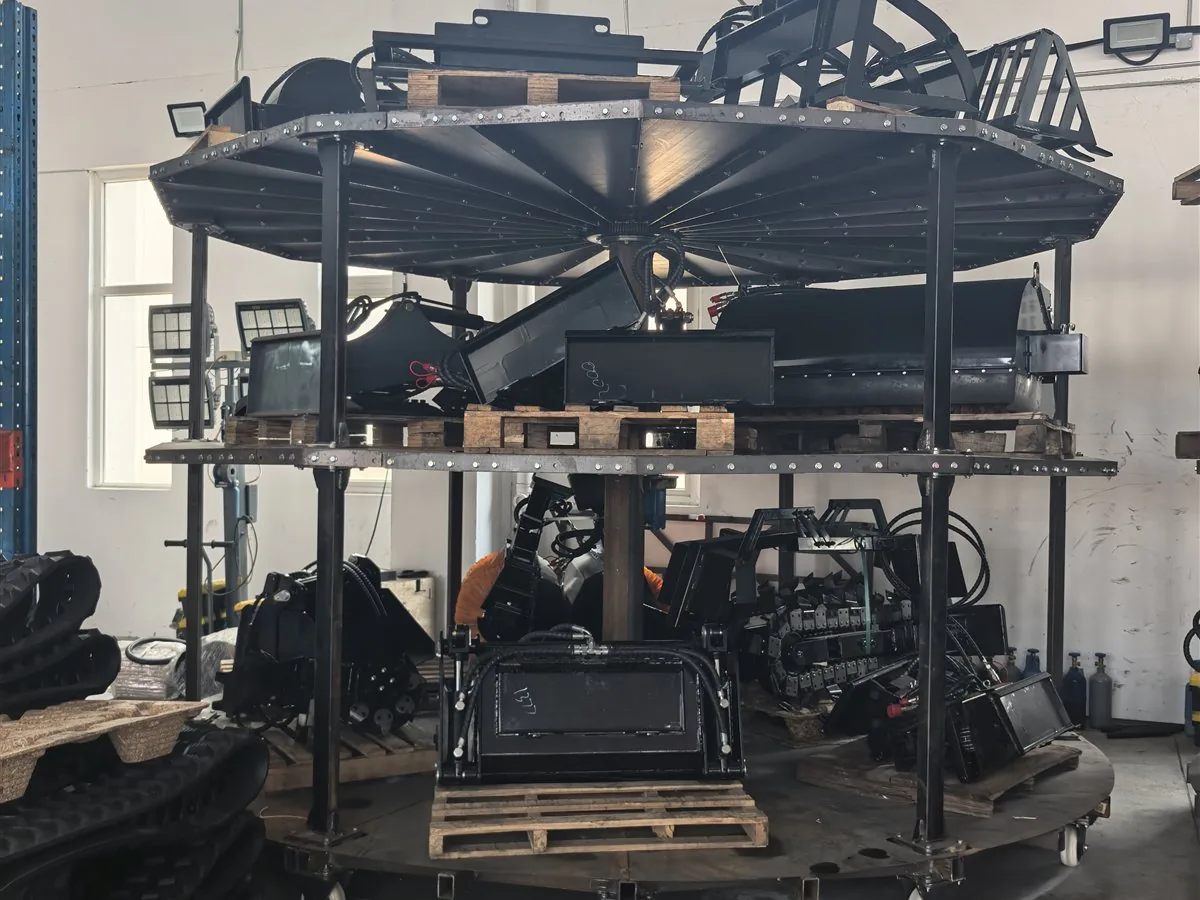

Mini skid steer loader frames and components prepared in the workshop
Parts preparation

Components prepared for mini skid steer assembly

Loader frames, guards and structural components are organized before assembly. Overseas buyers can discuss machine color, decals and OEM presentation before production.

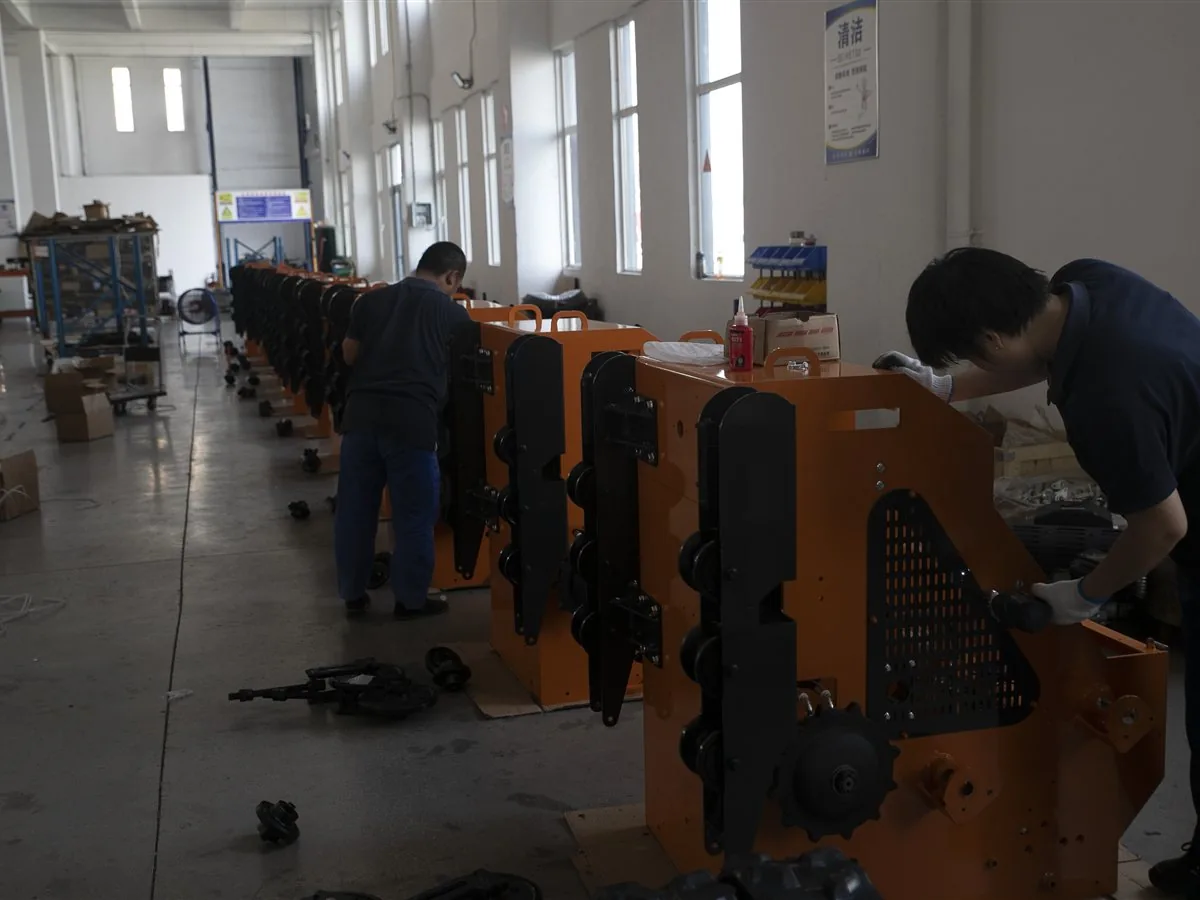

Compact mini skid steer loader assembly workstation for OEM orders
Assembly workstation

Assembly for configured mini skid steer orders

Hydraulic lines, controls and body components are fitted at the assembly station. Your S490 engine, color and attachment requirements are confirmed before production.

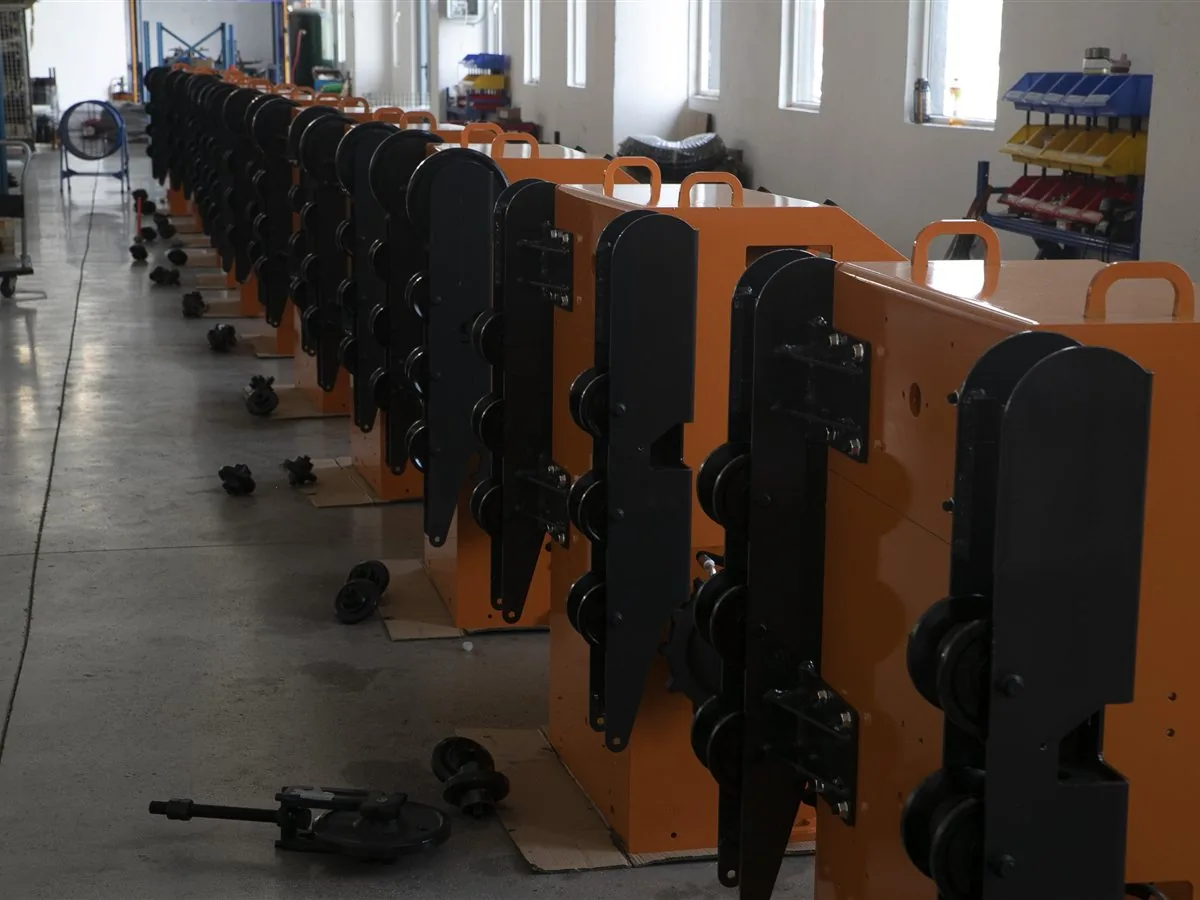

Compact loaders arranged on a mini skid steer production line
Production line

Compact loader production for dealer orders

Multiple compact loaders move through the production process for configuration and completion. Dealer and rental-fleet requirements can be discussed by quantity and destination.

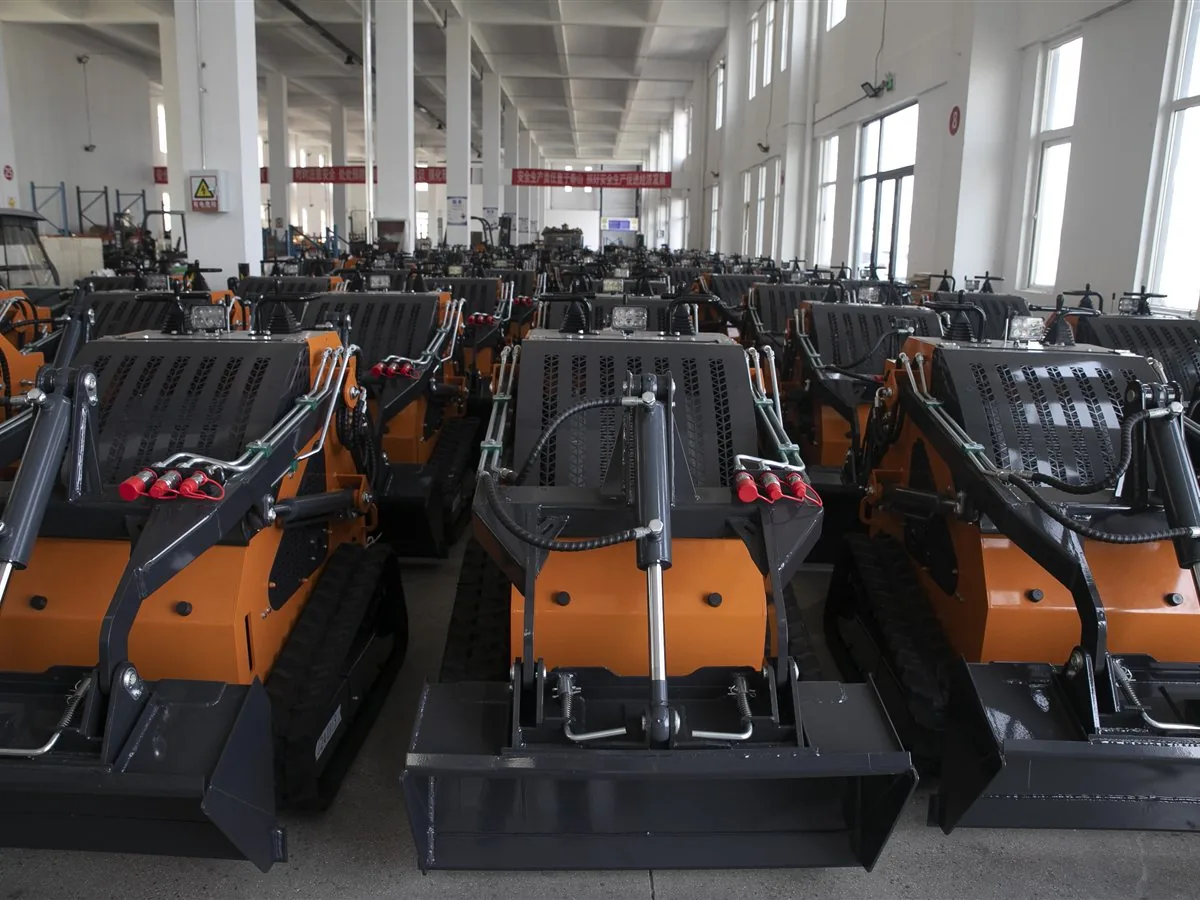

Finished compact mini skid steer loaders staged in the workshop
Finished machines

Mini skid steer loaders ready for shipment planning

Finished loaders are staged before packing and shipment preparation. Ask for current packing, loading and container photos together with your shipping quotation.

Need current workshop, packing or container-loading photos for your order?

Request Production and Shipping Photos
FAQ

S490 mini skid steer loader FAQ

Short answers for the first quotation step.

What is the S490 mini skid steer loader best for?

The S490 is suited to compact construction sites, material yards, livestock areas, property work and rental fleets that need ride-on controls with wheel traction.

Is the S490 a wheel or tracked mini skid steer loader?

The S490 is the wheel version. Buyers prioritizing rubber-track traction on softer ground can compare it with the T490 tracked model.

Is the S490 a ride-on mini skid steer loader?

Yes. The S490 uses an operator seat and ride-on controls. Confirm the selected engine option and attachment package before ordering.

What attachments can I use with the S490?

Bucket, forks, auger, sweeper, trencher and other tools can be discussed after confirming the mounting interface and hydraulic requirements.

Which engine options are available for the S490?

Available engine options include RATO R740, KOOP 292, Briggs & Stratton Vanguard 23, YANMAR 3TNV80F and KUBOTA D1105. Confirm the selected engine in the quotation.

How do I get the S490 price?

Send your destination, quantity, attachments, engine preference and OEM requirements for a matched quotation.

Packing & Shipping

Higher-capacity wheel loader packing and overseas loading support

KORVA helps S490 wheel loader buyers review wooden packing, container space use and export delivery preparation before the machines leave the factory.

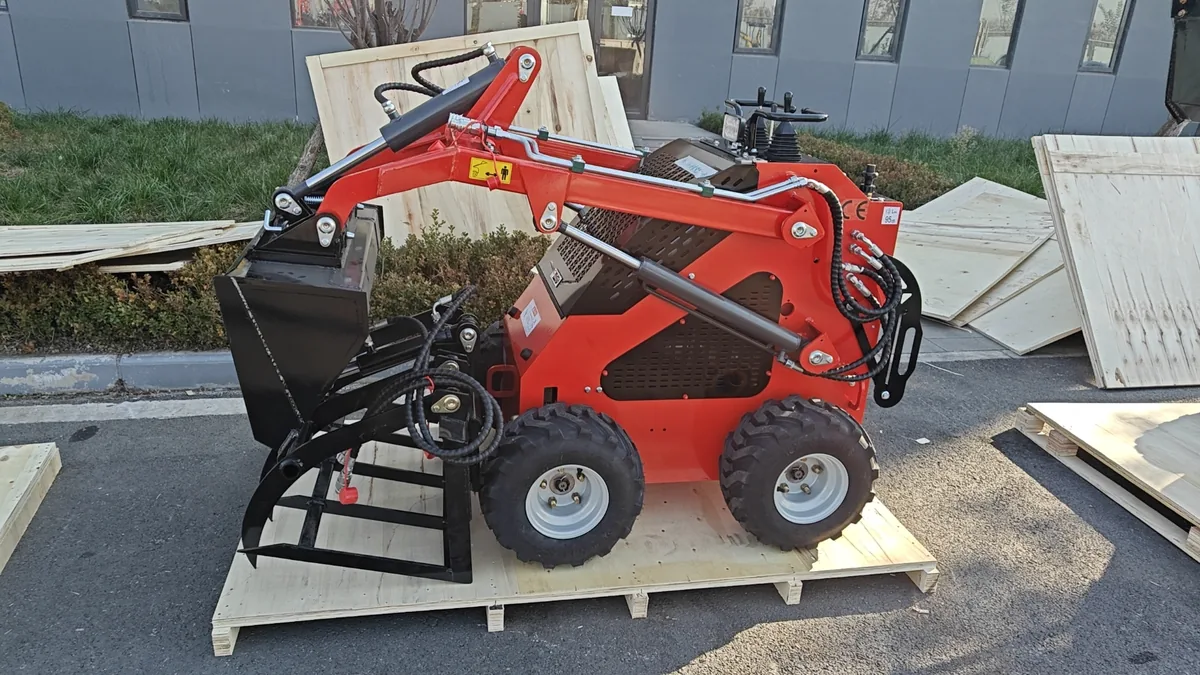

KORVA S490 ride-on wheel mini skid steer loader export wooden packing for overseas shipment

Export Wooden Packing

Each skid steer loader is securely packed to help protect key components during sea transportation.

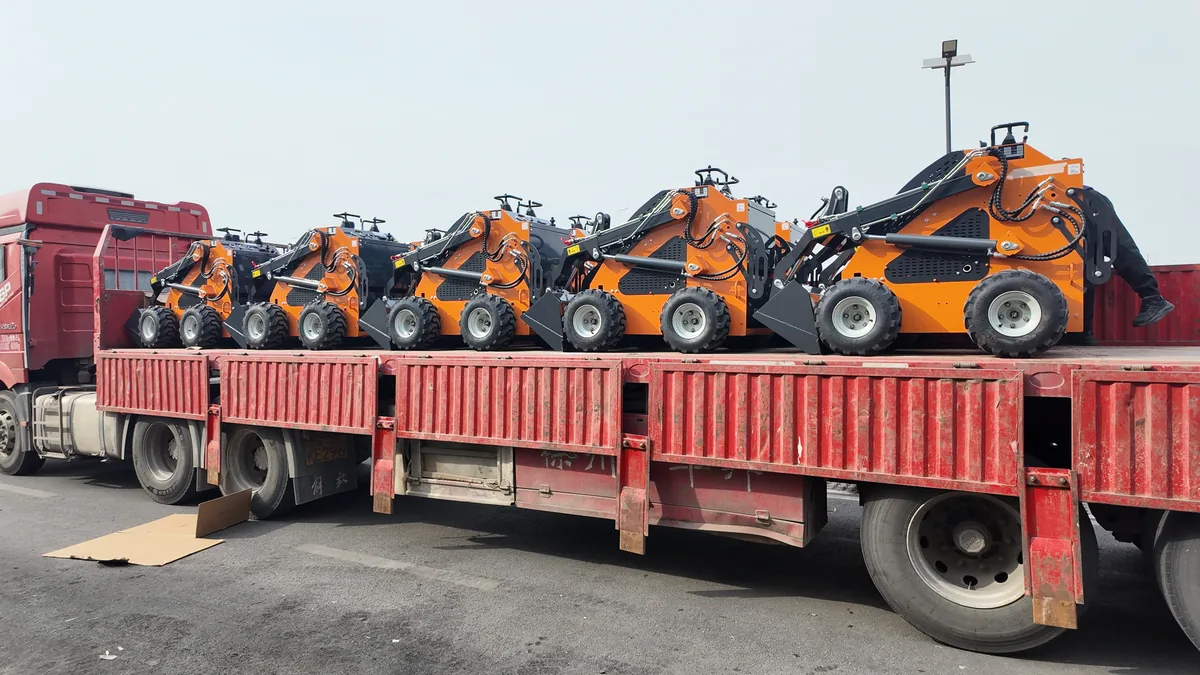

KORVA S490 ride-on wheel mini skid steer loader container loading for international shipment

Container Loading

Professional loading helps improve container space use and supports safer overseas shipment.

KORVA S490 ride-on wheel mini skid steer loader ready for overseas delivery after packing

Ready for Overseas Delivery

Packed machines are prepared for shipment with organized loading arrangements for overseas buyers.
