01
Wall-side work and landscaping
GW30 side swing helps buyers work closer to walls, fences and narrow job-site edges while keeping enough digging force for landscaping, grading and property maintenance.
KORVA GW30 / SIDE SWING TELESCOPIC CRAWLER EXCAVATOR
KORVA GW30 2.8 Ton Telescopic Compact Excavator
A heavy-duty 2.8 ton compact crawler excavator with side swing, telescopic arm and Yanmar 3TNV80F engine.
Built for contractors and equipment dealers, the KORVA GW30 offers stronger digging capability, full hydraulic load-sensitive control and flexible operation for compact construction sites.
2780 kgMachine weight
YANMAR 3TNV80FEngine model
0.068 m3Bucket capacity
2590 mmMax digging depth
Side swingBoom offset function
TelescopicExtendable working setup
GW30 Compact Digger
Side swing, telescopic arm and piston hydraulic system
GW30 is a 2780 kg compact excavator with YANMAR 3TNV80F engine, CE, EURO 5 / EPA 4, side swing, telescopic arm, variable piston pump, full hydraulic load-sensitive valve, two-speed piston travel motor, piston swing motor, 20 kN bucket digging force and standard 200 kg auxiliary counterweight.
- Wall-side trenching, landscaping and property development
- Farm drainage, telescopic digging and ditch cleaning
- Contractor and rental fleet use
- Small construction and site preparation
- Attachment-based work with bucket, auger, breaker and grapple
Applications
Built for heavier compact jobs and offset digging
KORVA GW30 is suitable for side-swing trenching, telescopic digging, landscaping, drainage work, contractor jobs, rental fleets and attachment-based work.
02
Farm trenching and telescopic reach
With 2590 mm max digging depth, 0.068 m3 bucket capacity and telescopic working setup, GW30 is suitable for farm trenching, drainage channels, irrigation trenches and ditch cleaning.
03
Contractor and rental fleet use
For contractors and rental buyers, GW30 offers a stronger configuration than smaller models, including variable piston pump, full hydraulic load-sensitive valve, high and low speed piston travel motor, piston swing motor and cabin option.
Product Video
KORVA GW30 working video
See the GW30 demonstrate two-speed travel, digging, piston swing motor action, load-sensitive hydraulic response, bucket loading and attachment changeover.
Play
Product Video Coming Soon
Contact KORVA to request current GW30 walking, digging, swing and attachment operation videos.
Why Choose KORVA GW30
GW30 side swing telescopic compact excavator configuration
GW30 is built around real purchase decision points: YANMAR 3TNV80F engine, CE, side swing, telescopic arm, EURO 5 / EPA 4 emission configuration, 2780 kg machine weight, 20 kN bucket digging force, variable piston pump, full hydraulic load-sensitive valve, high and low speed piston travel motor, 300*52.5*80 rubber track and cabin option.
YANMAR 3TNV80F engine
Three-cylinder direct injection engine with 1.267 L displacement, 15.2 kW rated power at 2500 rpm and 67.4 N.m maximum torque.
Side swing and telescopic arm
Side swing and telescopic working setup give GW30 stronger flexibility for offset trenching, roadside work and narrow construction sites.
Variable piston pump and full hydraulic load-sensitive valve
The variable piston pump and full hydraulic load-sensitive valve support smoother hydraulic response during digging, grading and attachment work.
Piston travel and swing motors
GW30 uses high and low speed piston travel motor and piston swing motor for buyers focused on travel control, swing action and working stability.
Stronger digging force
GW30 lists 13.5 kN arm digging force, 20 kN bucket digging force and 23 kN maximum tractive force for compact job-site work.
CE, EURO 5 and EPA 4 configuration
GW30 is offered with CE compliance and EURO 5 / EPA 4 emission configuration for buyers sourcing compact excavators for regulated export markets.
Customization

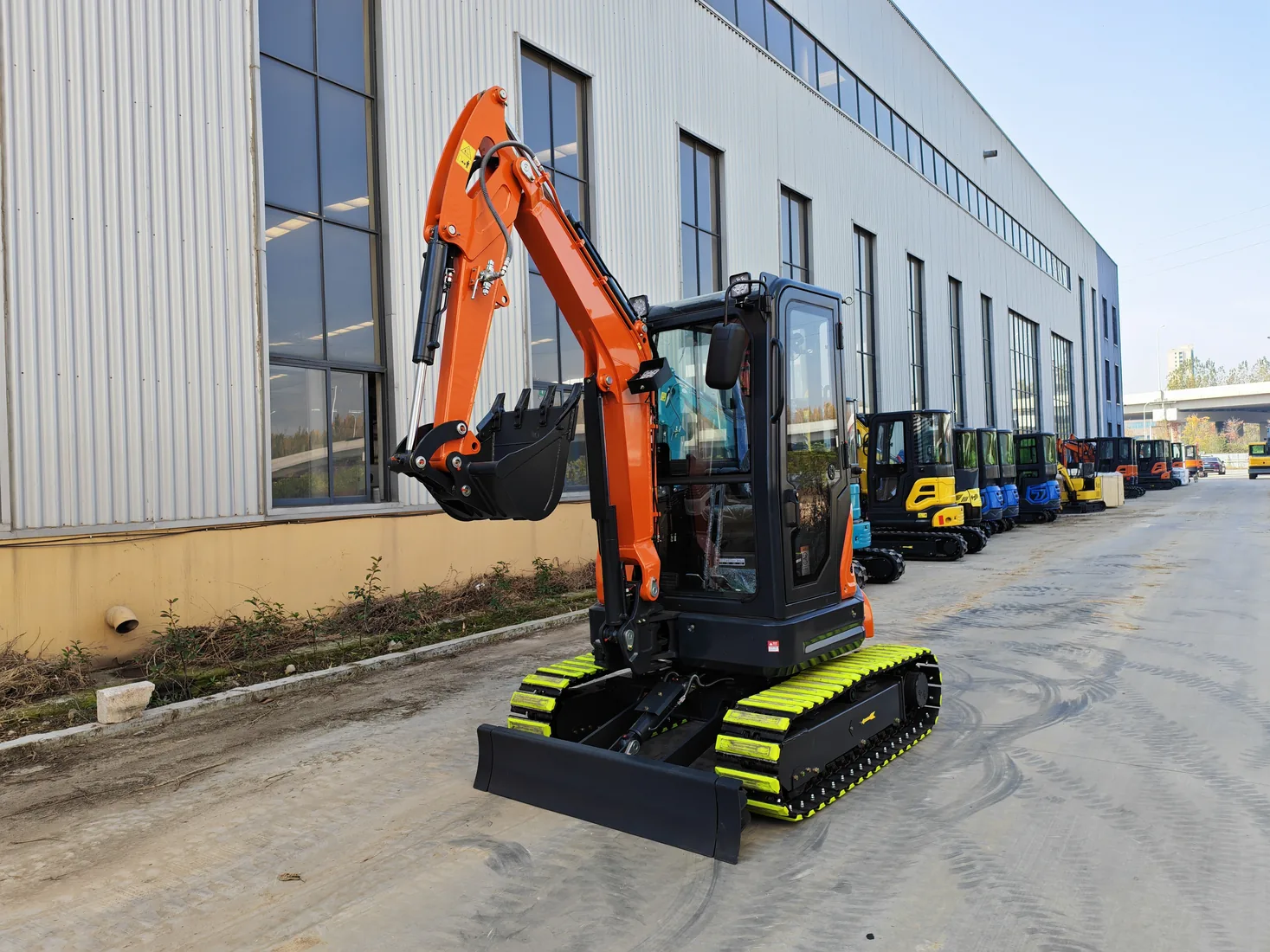

Color, function and attachment customization
For dealers, rental companies and project buyers, KORVA can discuss GW30 customization needs before quotation, including machine color, decals, cabin choice, air conditioning, 300*52.5*80 rubber track, side swing, telescopic arm, hydraulic lines, attachment package and CE / export document requirements.
For batch orders, KORVA can discuss machine color, brand decals and dealer logo requirements before production.
Confirm side swing, telescopic arm, cabin, air conditioning, 300*52.5*80 rubber track, steel crawler option and hydraulic pipeline needs for your target market.
Choose buckets, quick coupler, hydraulic breaker, auger, grapple, thumb clamp, ripper and other tools according to your application.
Technical Data
KORVA GW30 specifications
Before requesting GW30 price, shipping cost and attachment matching, confirm the key specifications and customization needs, including YANMAR 3TNV80F engine, CE, EURO 5 / EPA 4, side swing, telescopic arm, 2780 kg machine weight, 0.068 m3 bucket capacity, 2590 mm digging depth, variable piston pump, full hydraulic load-sensitive valve, 300*52.5*80 rubber track and 200 kg auxiliary counterweight.
Engine & Hydraulic System
ModelGW30
EngineYANMAR 3TNV80F
Engine typeThree-cylinder direct injection
Displacement1.267 L
Rated power15.2 kW / 2500 rpm
Compliance / emissionCE / EURO 5 / EPA 4
Hydraulic pumpVariable piston pump
Hydraulic valveFull hydraulic load-sensitive valve
Hydraulic pressure24.5 MPa
Hydraulic flow70 L/min
Travel motorHigh / low speed piston motor
Swing motorPiston motor
Working Range & Force
Machine weight2780 kg
Bucket capacity0.068 m³
Arm digging force13.5 kN
Bucket digging force20 kN
Standard auxiliary counterweight200 kg
Max. digging height4370 mm
Max. dumping height3060 mm
Max. digging depth2590 mm
Max. digging radius on ground4640 mm
Max. digging radius4520 mm
Side swing angle50 deg right / 65 deg left
Track modelRubber track 300*52.5*80
Travel, Dimensions & Packing
Travel speed2.0 / 3.5 km/h
Traction force23 kN
Gradability30 deg
Max. rotation speed9.5 r/min
Overall length4100 mm
Overall width1370 / 1570 mm
Ground length1960 mm
Wooden box size4150*1470*1950 mm
With cabin box size4200*1470*2550 mm
Attachments
Optional attachments for KORVA GW30
KORVA GW30 can be matched with buckets, auger, hydraulic breaker, ripper, thumb clamp, quick coupler and grapple for farm trenching, landscaping, small construction and rental fleet work. For attachment quotation, please confirm pin size, ear width, center distance, hydraulic flow and pressure.
Bucket200/300/400mm
V Bucket
Rake
Quick Hitch
Clamshell Bucket600/800mm
Ripper
Pallet Fork
Auger200-600mm
Hedge Trimmer
Ramps
Wood Splitter
Grading Bucket600/800/1000mm
Hydraulic Breaker
Cutter
Tilt Bucket600/800mm
Snow Sweeper
Skeleton Bucket
Snow Blade
Trailer
Milling Head
Rotating Grapple
Hydraulic Thumb
Log Grapple
Wood Cone Splitter
FAQ
Frequently asked questions
Key answers about GW30 price, side swing, telescopic arm, hydraulic system, rubber track, cabin, air conditioning and attachment packages.
What information is needed for a GW30 quotation?
Please send the destination country or port, order quantity, cabin and air conditioning requirement, attachment list and whether you need side swing, telescopic arm, 300*52.5*80 rubber track or steel crawler option.
Why choose GW30 instead of a smaller GW model?
GW30 is positioned for buyers who need a heavier compact excavator with 2780 kg operating weight, 0.068 m3 bucket, 20 kN bucket digging force, 2590 mm digging depth and stronger hydraulic configuration for contractor and rental work.
Does GW30 include side swing and telescopic arm?
Yes. GW30 can be discussed with side swing and telescopic working setup for wall-side trenching, roadside work, drainage channels and job sites where extra reach or offset digging is useful.
What hydraulic and travel components are used on GW30?
GW30 uses a variable piston pump, full hydraulic load-sensitive valve, piston swing motor and high / low speed piston travel motor. The hydraulic data includes 24.5 MPa working pressure and 70 L/min flow.
Can GW30 be ordered with cabin, air conditioning and attachment package?
Yes. Buyers can discuss cabin, air conditioning, 300*52.5*80 rubber track, buckets, quick coupler, breaker, auger, grapple and other attachment options before quotation and production.
Contact KORVA to get the latest GW30 compact excavator price, side swing and telescopic arm configuration, attachment options, export document details and shipping quote for your market.
Packing & Shipping
Mini excavator export packing and overseas delivery support
KORVA can provide packing photos, container loading photos and delivery preparation updates for overseas mini excavator buyers before shipment.

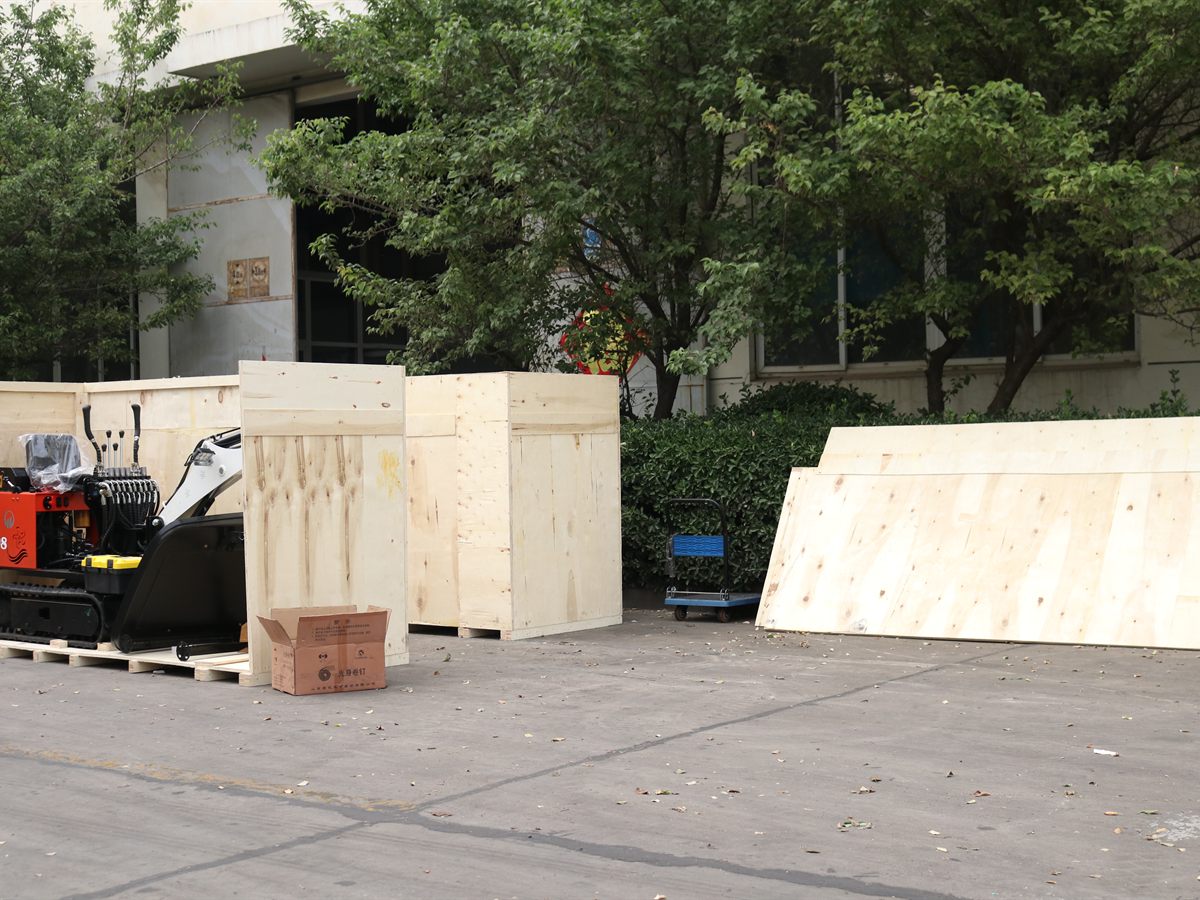

Export Wooden Packing
Secure wooden packing for overseas delivery
Each mini excavator is securely packed to help protect key components during sea transportation.

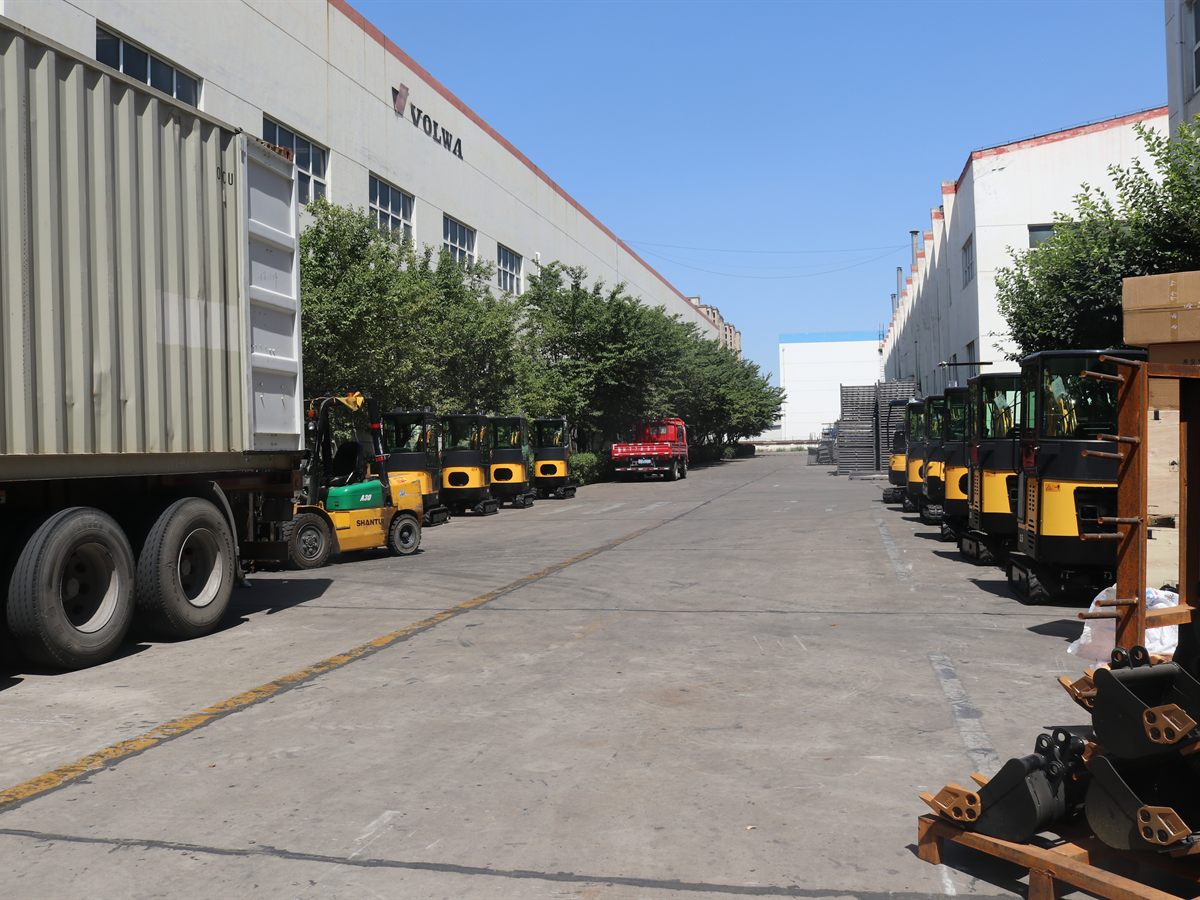

Container Loading
Professional container loading for export delivery
Professional loading helps improve container space use and supports safer overseas shipment.

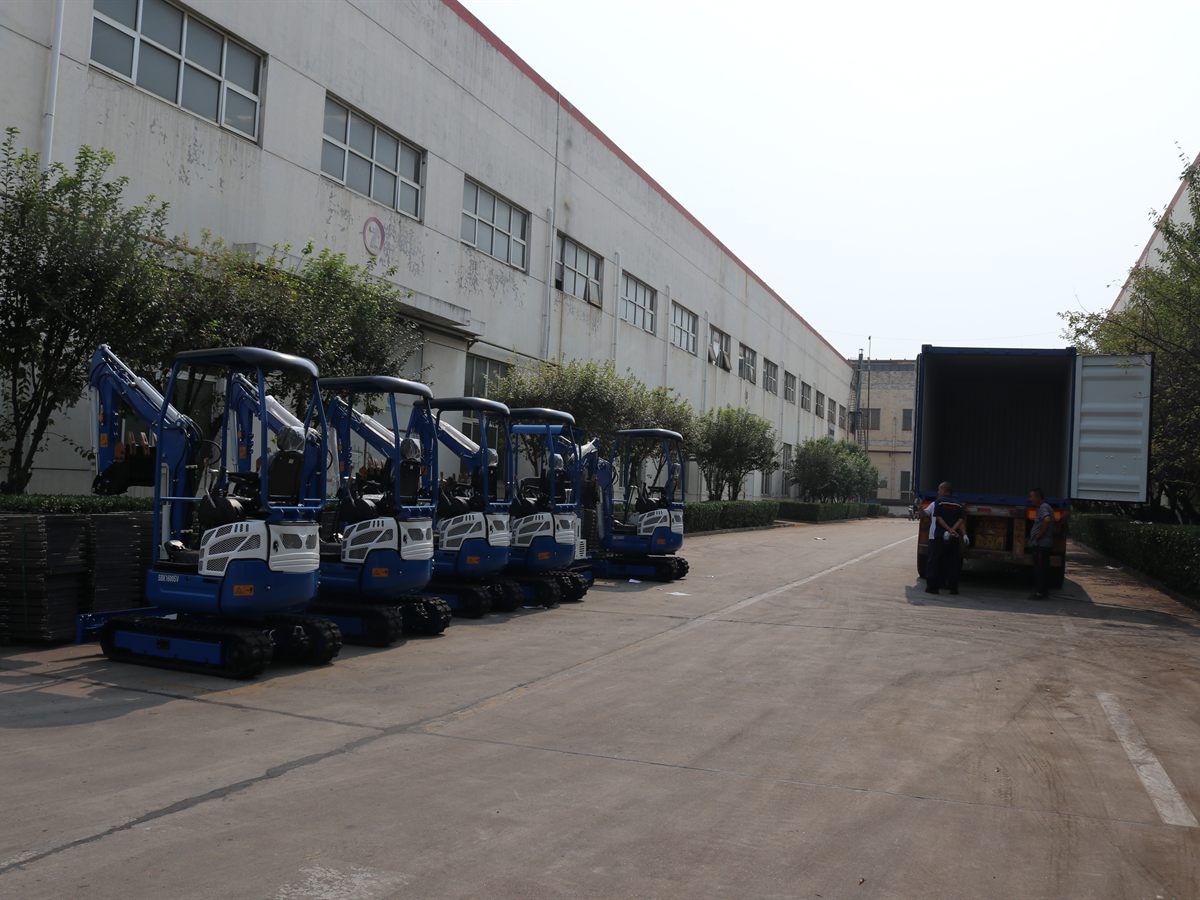

Ready for Overseas Delivery
Packed and ready for international delivery
Packed machines are prepared for shipment with organized loading arrangements for overseas buyers.
