01
Wall-side work and landscaping
GW25 side swing helps buyers work closer to walls, fences and narrow job-site edges while keeping enough digging force for landscaping, grading and property maintenance.
KORVA GW25 / 2.2 TON SIDE SWING TELESCOPIC EXCAVATOR

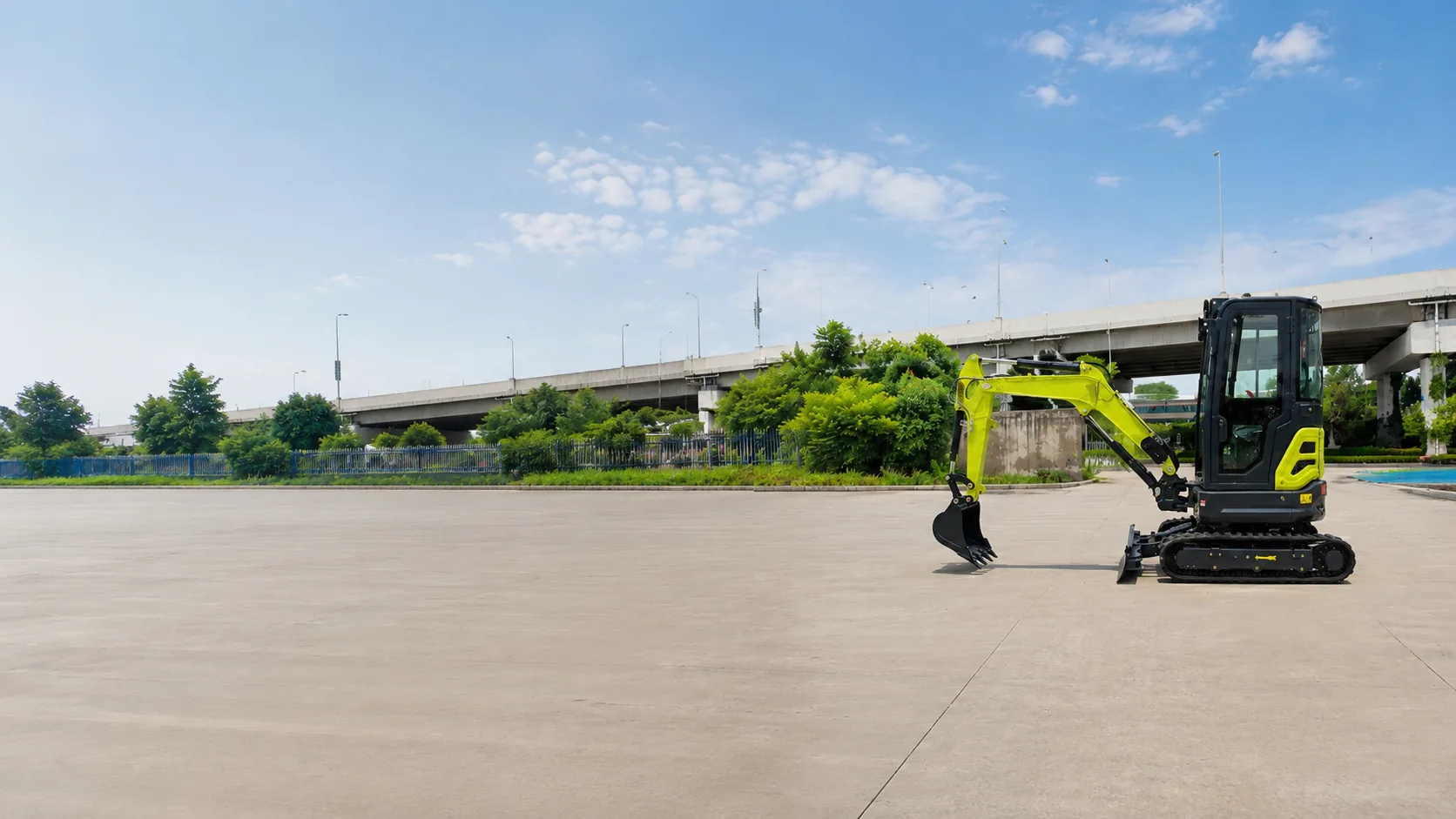

KORVA GW25 2.2 Ton Side Swing Excavator
A 2.2 ton compact crawler excavator with side swing, telescopic arm and Yanmar engine for narrow and demanding job sites.
The KORVA GW25 combines a Yanmar engine, variable piston pump, load-sensitive valve and side swing boom to support flexible digging in landscaping, utility and small construction projects.
2200 kgMachine weight
YANMAR 3TNV80FEngine model
0.068 m3Bucket capacity
2410 mmMax digging depth
Side swingBoom offset function
TelescopicExtendable working setup
GW25 Compact Digger
Side swing, telescopic arm and piston hydraulic system
GW25 is a 2200 kg compact excavator with YANMAR 3TNV80F engine, side swing, telescopic arm, variable piston pump, load-sensitive valve, two-speed piston travel motor, piston swing motor and 20 kN bucket digging force.
- Wall-side trenching, landscaping and property development
- Farm drainage, telescopic digging and ditch cleaning
- Contractor and rental fleet use
- Small construction and site preparation
- Attachment-based work with bucket, auger, breaker and grapple
Applications
Built for heavier compact jobs and offset digging
KORVA GW25 is suitable for side-swing trenching, telescopic digging, landscaping, drainage work, contractor jobs, rental fleets and attachment-based work.
02
Farm trenching and telescopic reach
With 2410 mm max digging depth, 0.068 m3 bucket capacity and telescopic working setup, GW25 is suitable for farm trenching, drainage channels, irrigation trenches and ditch cleaning.
03

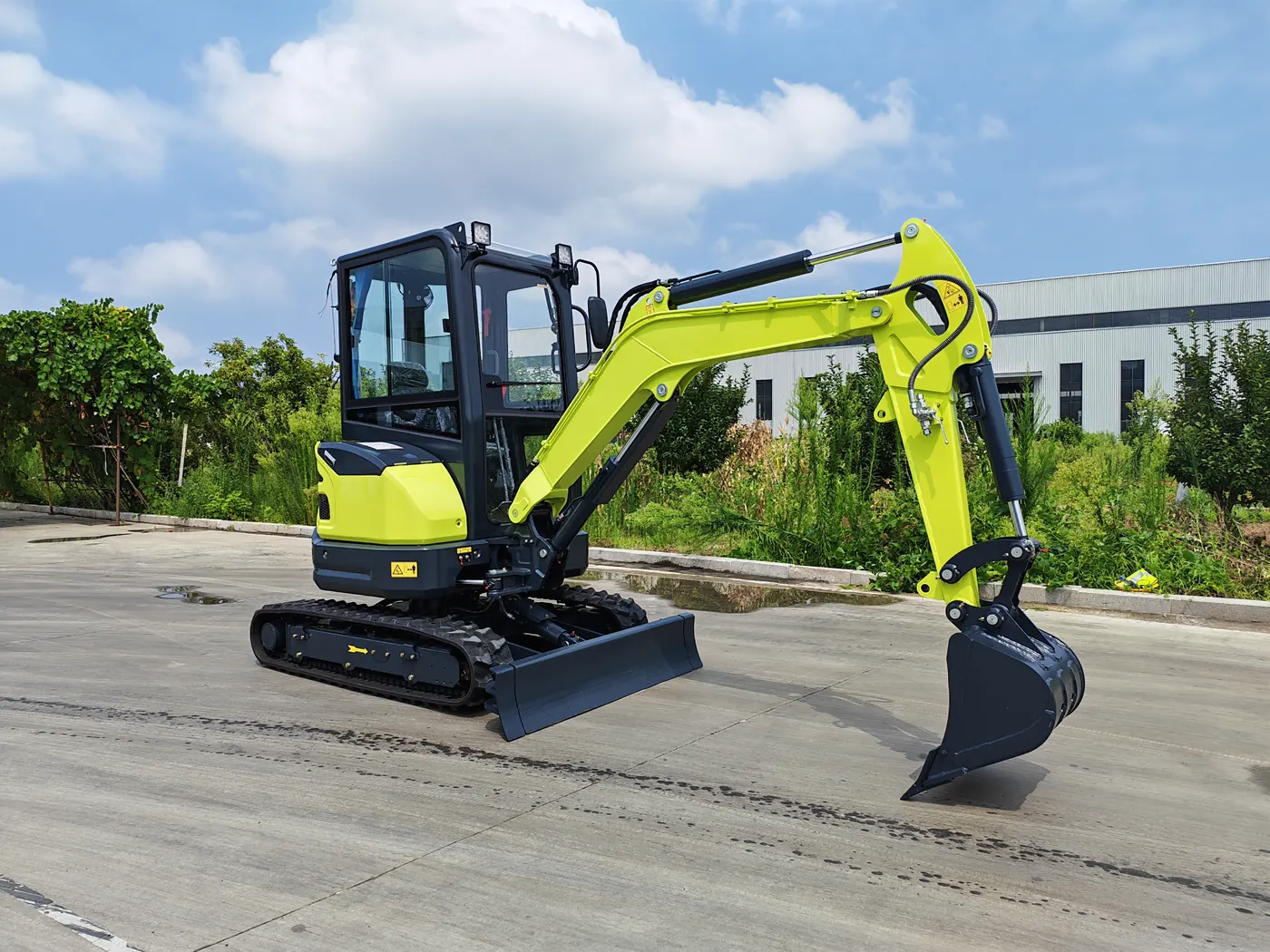

Contractor and rental fleet use
For contractors and rental buyers, GW25 offers a stronger configuration than entry models, including variable piston pump, load-sensitive valve, high and low speed piston travel motor, piston swing motor and cabin option.
Product Video

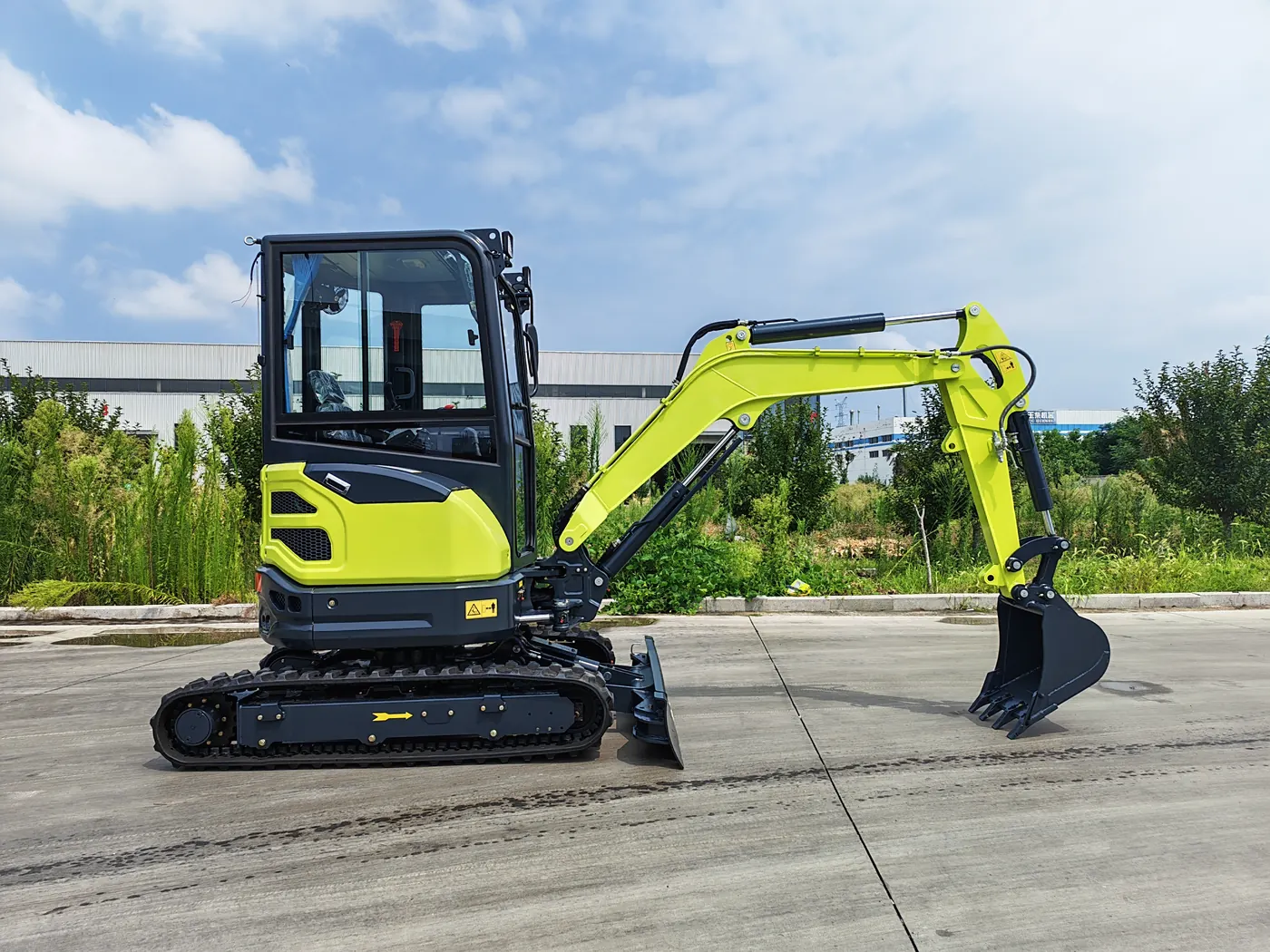

KORVA GW25 working video
See the GW25 demonstrate two-speed travel, digging, piston swing motor action, load-sensitive hydraulic response, bucket loading and attachment changeover.
Play
Product Video Coming Soon
Contact KORVA to request current GW25 walking, digging, swing and attachment operation videos.
Why Choose KORVA GW25
A higher-grade compact excavator for overseas buyers
GW25 is built around real purchase decision points: YANMAR 3TNV80F engine, side swing, telescopic arm, EURO 5 / EPA 4 emission configuration, 2200 kg machine weight, 20 kN bucket digging force, variable piston pump, load-sensitive valve, high and low speed piston travel motor and cabin option.
YANMAR 3TNV80F engine
Three-cylinder direct injection engine with 1.267 L displacement, 15.2 kW rated power at 2500 rpm and 67.4 N.m maximum torque.
Side swing and telescopic arm
Side swing and telescopic working setup give GW25 stronger flexibility for offset trenching, roadside work and narrow construction sites.
Variable piston pump and load-sensitive valve
The variable piston pump and load-sensitive valve support smoother hydraulic response during digging, grading and attachment work.
Piston travel and swing motors
GW25 uses high and low speed piston travel motor and piston swing motor for buyers focused on travel control, swing action and working stability.
Stronger digging force
GW25 lists 13.5 kN arm digging force, 20 kN bucket digging force and 23 kN maximum tractive force for compact job-site work.
EURO 5 and EPA 4 configuration
GW25 is offered with EURO 5 / EPA 4 emission configuration for buyers sourcing compact excavators for regulated export markets.
Customization

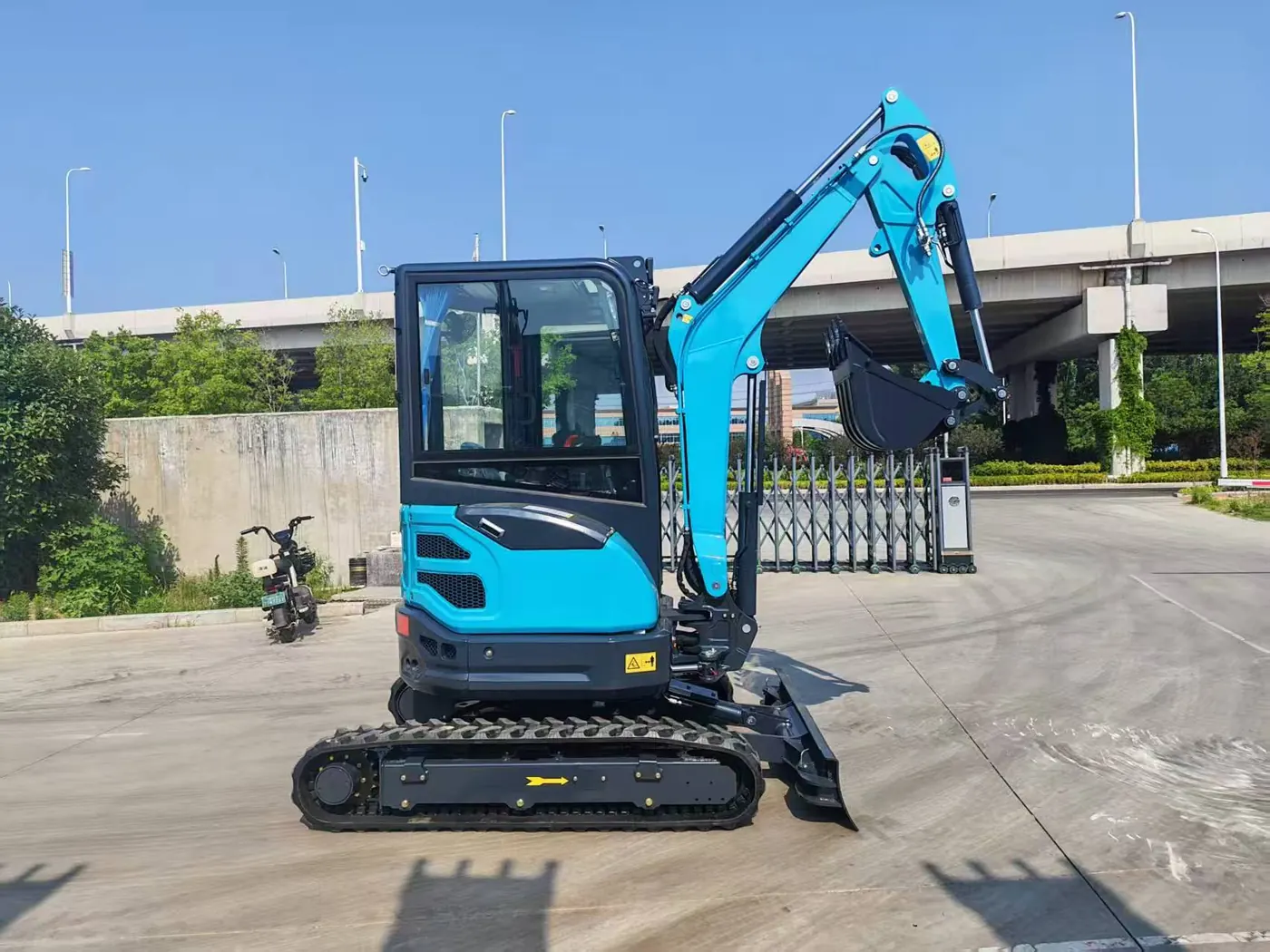

Color, function and attachment customization
For dealers, rental companies and project buyers, KORVA can discuss GW25 customization needs before quotation, including machine color, decals, cabin or canopy choice, air conditioning, 250*48*82 rubber track, side swing, telescopic arm, hydraulic lines, attachment package and export document requirements.
For batch orders, KORVA can discuss machine color, brand decals and dealer logo requirements before production.
Confirm side swing, telescopic arm, cabin or canopy choice, air conditioning, 250*48*82 rubber track and hydraulic pipeline needs for your target market.
Choose buckets, quick coupler, hydraulic breaker, auger, grapple, thumb clamp, ripper and other tools according to your application.
Technical Data
KORVA GW25 specifications
Before requesting GW25 price, shipping cost and attachment matching, confirm the key specifications and customization needs, including YANMAR 3TNV80F engine, side swing, telescopic arm, 2200 kg machine weight, 0.068 m3 bucket capacity, 2410 mm digging depth, variable piston pump, load-sensitive valve and 250*48*82 rubber track.
Engine & Hydraulic System
ModelGW25
EngineYANMAR 3TNV80F
Engine typeThree-cylinder direct injection
Displacement1.267 L
Rated power15.2 kW / 2500 rpm
Compliance / emissionEURO 5 / EPA 4
Hydraulic pumpVariable piston pump
Hydraulic valveLoad-sensitive valve
Hydraulic pressure24.5 MPa
Hydraulic flow70 L/min
Travel motorHigh / low speed piston motor
Swing motorPiston motor
Working Range & Force
Machine weight2200 kg
Bucket capacity0.068 m³
Arm digging force13.5 kN
Bucket digging force20 kN
Max. digging height4190 mm
Max. dumping height2880 mm
Max. digging depth2410 mm
Max. digging radius on ground4520 mm
Side swing angle50 deg right / 65 deg left
Track modelRubber track 250*48*82
Travel, Dimensions & Packing
Travel speed2.0 / 3.8 km/h
Traction force23 kN
Gradability30 deg
Max. rotation speed9.5 r/min
Overall length4100 mm
Overall width1300 / 1500 mm
Ground length1860 mm
Wooden box size3950*1420*1850 mm
With cabin box size4000*1420*2500 mm
Attachments
Optional attachments for KORVA GW25
KORVA GW25 can be matched with buckets, auger, hydraulic breaker, ripper, thumb clamp, quick coupler and grapple for farm trenching, landscaping, small construction and rental fleet work. For attachment quotation, please confirm pin size, ear width, center distance, hydraulic flow and pressure.
Bucket200/300/400mm
V Bucket
Rake
Quick Hitch
Clamshell Bucket600/800mm
Ripper
Pallet Fork
Auger200-600mm
Hedge Trimmer
Ramps
Wood Splitter
Grading Bucket600/800/1000mm
Hydraulic Breaker
Cutter
Tilt Bucket600/800mm
Snow Sweeper
Skeleton Bucket
Snow Blade
Trailer
Milling Head
Rotating Grapple
Hydraulic Thumb
Log Grapple
Wood Cone Splitter
FAQ
Frequently asked questions
Key answers about GW25 price, side swing, telescopic arm, hydraulic system, rubber track, cabin, air conditioning and attachment packages.
What information is needed for a GW25 quotation?
Please send the destination country or port, order quantity, cabin or canopy preference, air conditioning requirement, attachment list and whether you need side swing, telescopic arm and specific rubber track configuration.
Why choose GW25 instead of a smaller GW model?
GW25 is positioned for buyers who need a heavier compact excavator with 2200 kg operating weight, 0.068 m3 bucket, 20 kN bucket digging force, 2410 mm digging depth and stronger hydraulic configuration for contractor and rental work.
Does GW25 include side swing and telescopic arm?
Yes. GW25 can be discussed with side swing and telescopic working setup for wall-side trenching, roadside work, drainage channels and job sites where extra reach or offset digging is useful.
What hydraulic and travel components are used on GW25?
GW25 uses a variable piston pump, load-sensitive valve, piston swing motor and high / low speed piston travel motor. The hydraulic data includes 24.5 MPa working pressure and 70 L/min flow.
Can GW25 be ordered with cabin, air conditioning and attachment package?
Yes. Buyers can discuss cabin, air conditioning, 250*48*82 rubber track, buckets, quick coupler, breaker, auger, grapple and other attachment options before quotation and production.
Contact KORVA to get the latest GW25 compact excavator price, side swing and telescopic arm configuration, attachment options, export document details and shipping quote for your market.
Packing & Shipping
Mini excavator export packing and overseas delivery support
KORVA can provide packing photos, container loading photos and delivery preparation updates for overseas mini excavator buyers before shipment.

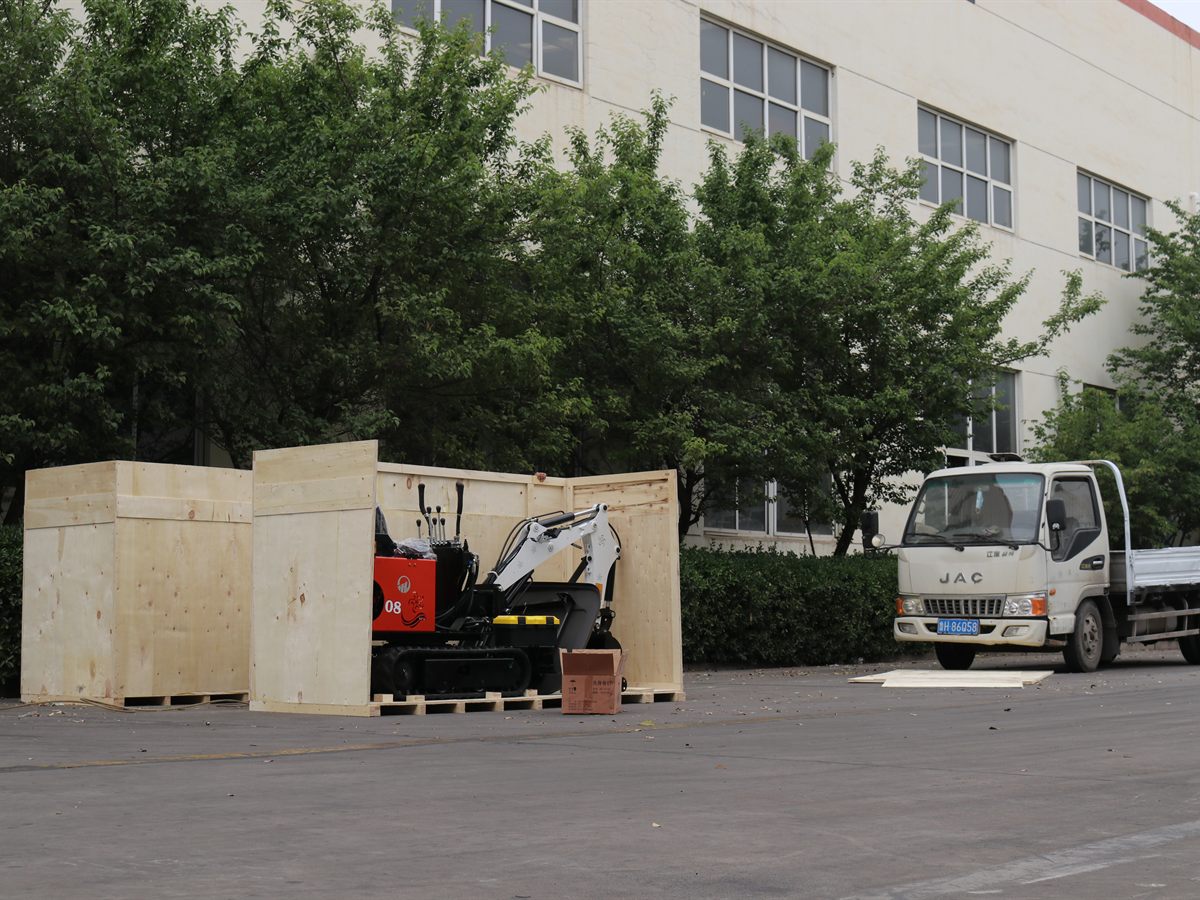

Export Wooden Packing
Secure wooden packing for overseas delivery
Each mini excavator is securely packed to help protect key components during sea transportation.

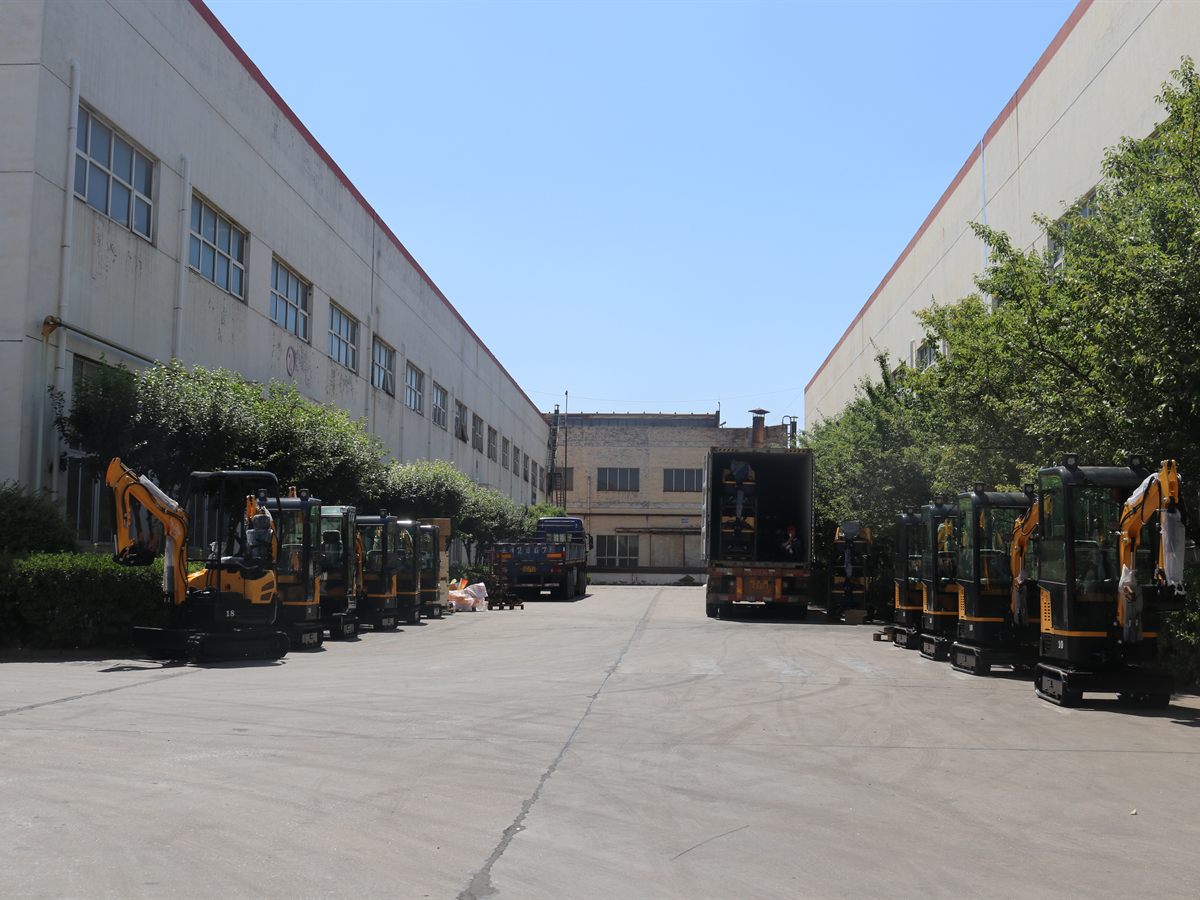

Container Loading
Professional container loading for export delivery
Professional loading helps improve container space use and supports safer overseas shipment.

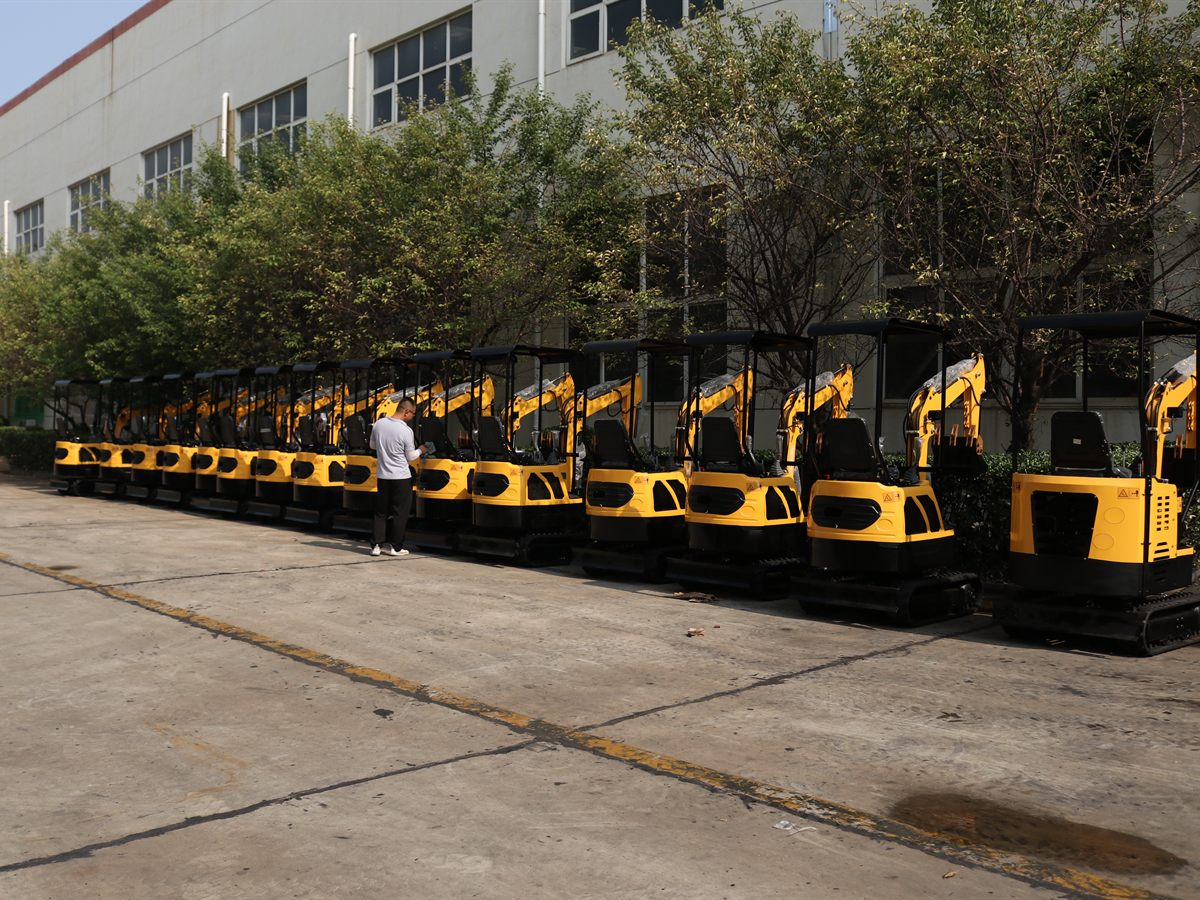

Ready for Overseas Delivery
Packed and ready for international delivery
Packed machines are prepared for shipment with organized loading arrangements for overseas buyers.
